L1
R1
L2
R2

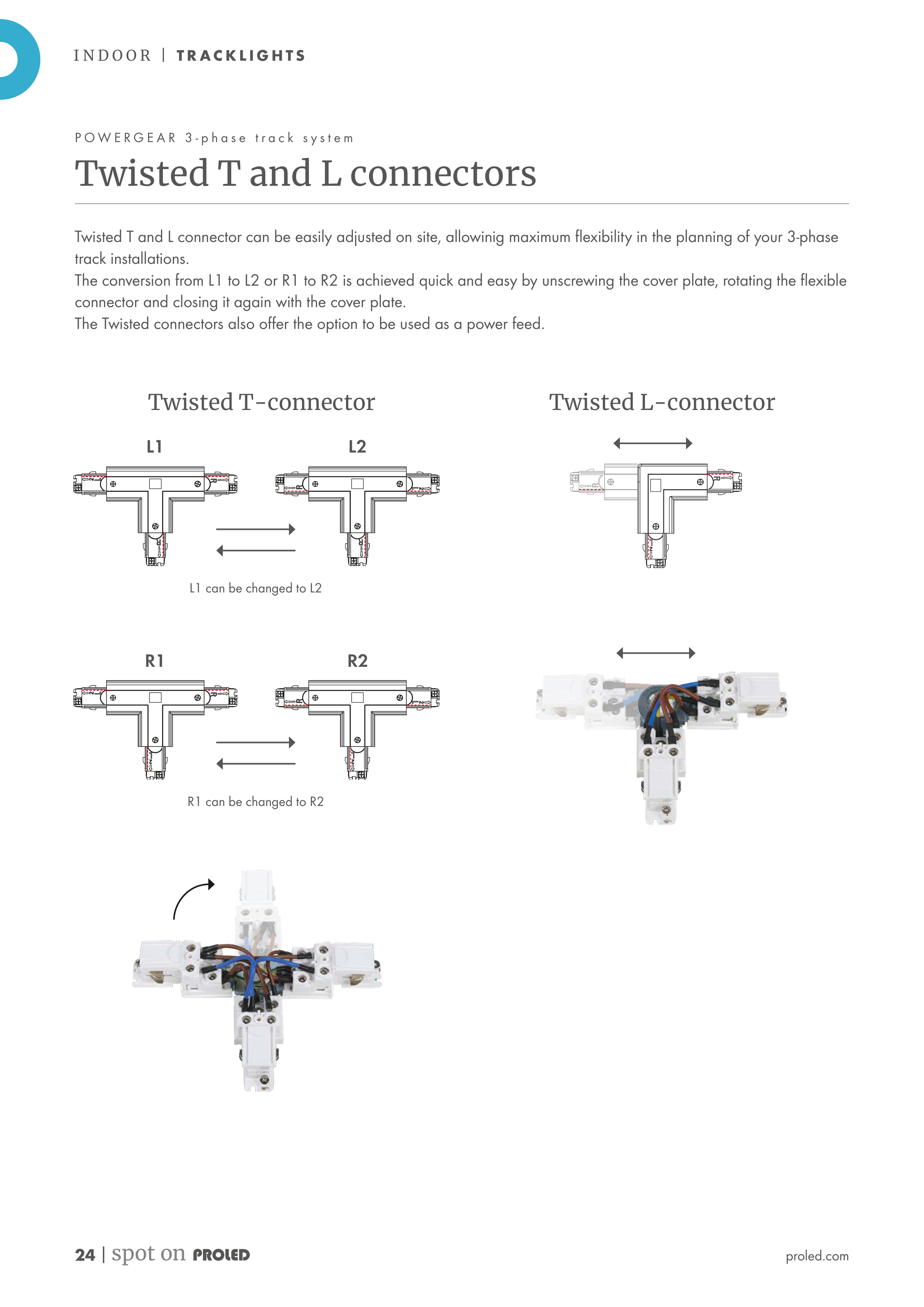

P O W E R G E A R 3 - p h a s e t r a c k s y s t e m
Twisted T and L connectors
Twisted T and L connector can be easily adjusted on site, allowinig maximum flexibility in the planning of your 3-phase
track installations.
The conversion from L1 to L2 or R1 to R2 is achieved quick and easy by unscrewing the cover plate, rotating the flexible
connector and closing it again with the cover plate.
The Twisted connectors also offer the option to be used as a power feed.
Twisted T-connector
Twisted L-connector
L1 can be changed to L2
R1 can be changed to R2
