L2
L1
D+
D-
N
L3

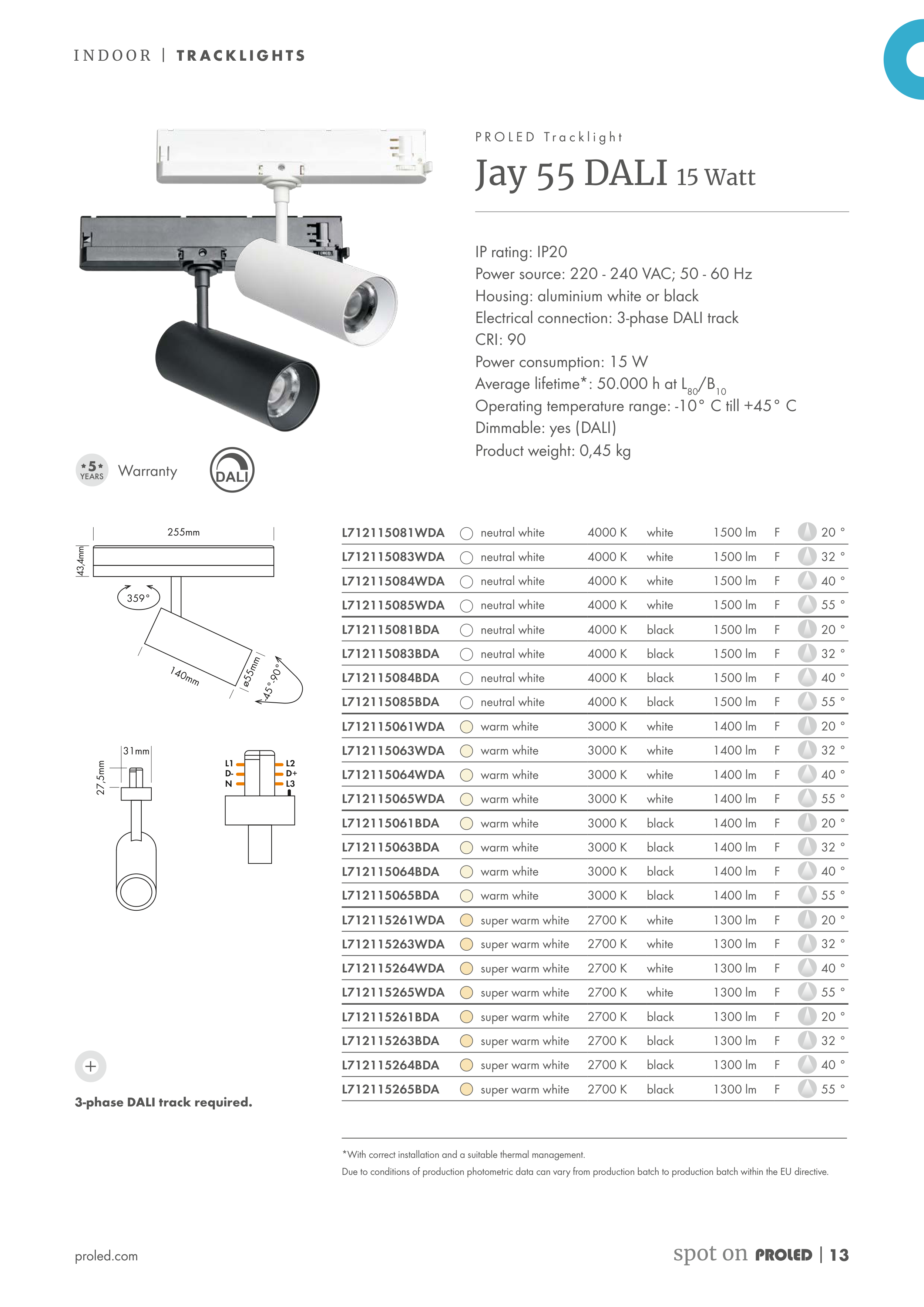

P R O L E D T r a c k l i g h t
Jay 55 DALI 15 Watt
3-phase DALI track required.
IP rating: IP20
Power source: 220 - 240 VAC; 50 - 60 Hz
Housing: aluminium white or black
Electrical connection: 3-phase DALI track
CRI: 90
Power consumption: 15 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: yes (DALI)
Product weight: 0,45 kg
L712115081WDA
neutral white
4000 K
white
1500 lm
F
20 °
L712115083WDA
neutral white
4000 K
white
1500 lm
F
32 °
L712115084WDA
neutral white
4000 K
white
1500 lm
F
40 °
L712115085WDA
neutral white
4000 K
white
1500 lm
F
55 °
L712115081BDA
neutral white
4000 K
black
1500 lm
F
20 °
L712115083BDA
neutral white
4000 K
black
1500 lm
F
32 °
L712115084BDA
neutral white
4000 K
black
1500 lm
F
40 °
L712115085BDA
neutral white
4000 K
black
1500 lm
F
55 °
L712115061WDA
warm white
3000 K
white
1400 lm
F
20 °
L712115063WDA
warm white
3000 K
white
1400 lm
F
32 °
L712115064WDA
warm white
3000 K
white
1400 lm
F
40 °
L712115065WDA
warm white
3000 K
white
1400 lm
F
55 °
L712115061BDA
warm white
3000 K
black
1400 lm
F
20 °
L712115063BDA
warm white
3000 K
black
1400 lm
F
32 °
L712115064BDA
warm white
3000 K
black
1400 lm
F
40 °
L712115065BDA
warm white
3000 K
black
1400 lm
F
55 °
L712115261WDA
super warm white
2700 K
white
1300 lm
F
20 °
L712115263WDA
super warm white
2700 K
white
1300 lm
F
32 °
L712115264WDA
super warm white
2700 K
white
1300 lm
F
40 °
L712115265WDA
super warm white
2700 K
white
1300 lm
F
55 °
L712115261BDA
super warm white
2700 K
black
1300 lm
F
20 °
L712115263BDA
super warm white
2700 K
black
1300 lm
F
32 °
L712115264BDA
super warm white
2700 K
black
1300 lm
F
40 °
L712115265BDA
super warm white
2700 K
black
1300 lm
F
55 °
*With correct installation and a suitable thermal management.
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
Warranty
5
YEARS
proled.com
I N D O O R | T R AC K L I G H T S
spot on
| 13
