167mm
22mm
43mm
25mm
266mm
Beam angle 36°

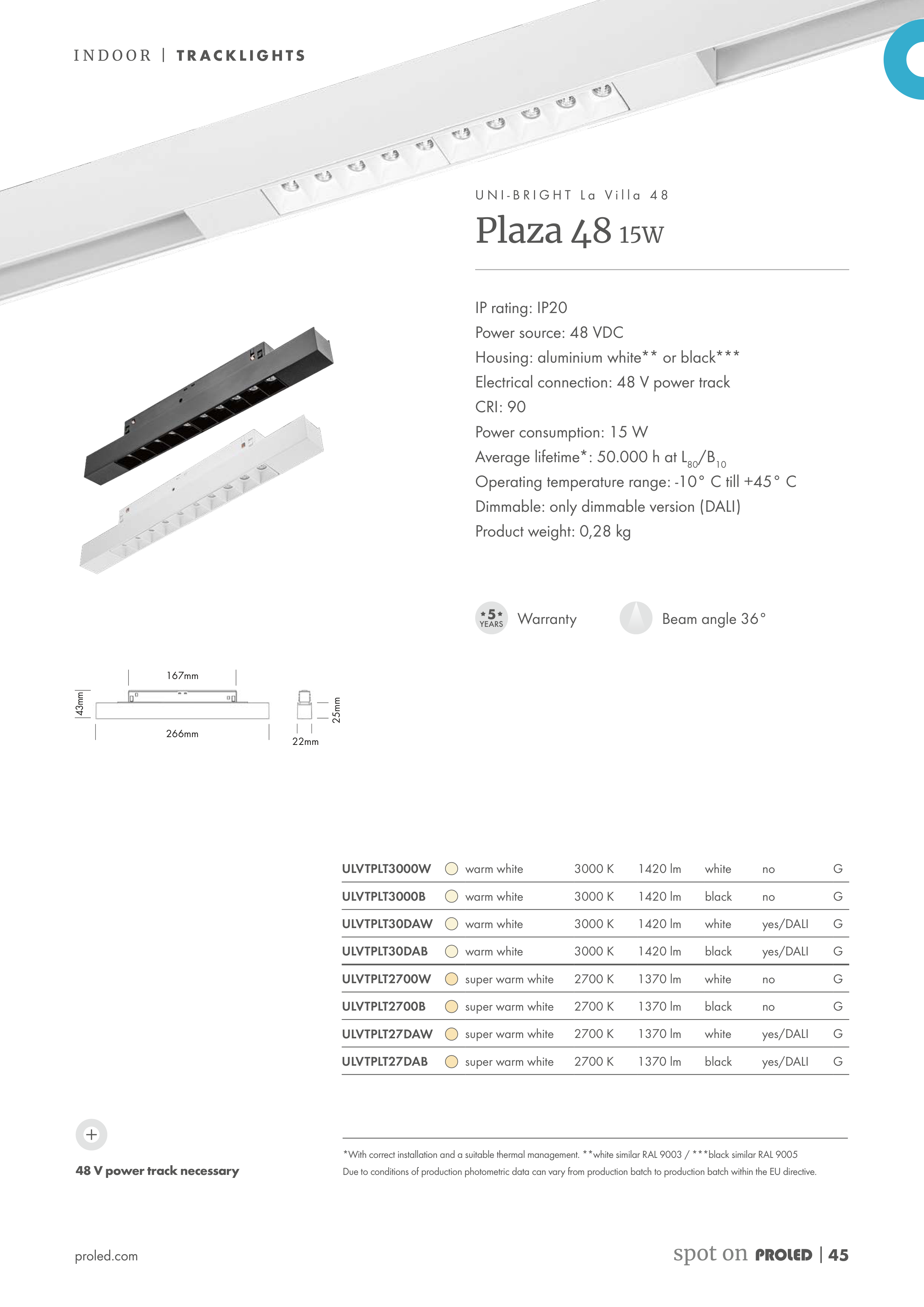

U N I - B R I G H T L a V i l l a 4 8
Plaza 48 15W
IP rating: IP20
Power source: 48 VDC
Housing: aluminium white** or black***
Electrical connection: 48 V power track
CRI: 90
Power consumption: 15 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: only dimmable version (DALI)
Product weight: 0,28 kg
*With correct installation and a suitable thermal management. **white similar RAL 9003 / ***black similar RAL 9005
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
Warranty
5
YEARS
48 V power track necessary
ULVTPLT3000W
warm white
3000 K
1420 lm
white
no
G
ULVTPLT3000B
warm white
3000 K
1420 lm
black
no
G
ULVTPLT30DAW
warm white
3000 K
1420 lm
white
yes/DALI
G
ULVTPLT30DAB
warm white
3000 K
1420 lm
black
yes/DALI
G
ULVTPLT2700W
super warm white
2700 K
1370 lm
white
no
G
ULVTPLT2700B
super warm white
2700 K
1370 lm
black
no
G
ULVTPLT27DAW
super warm white
2700 K
1370 lm
white
yes/DALI
G
ULVTPLT27DAB
super warm white
2700 K
1370 lm
black
yes/DALI
G
proled.com
I N D O O R | T R AC K L I G H T S
spot on
| 45
