167mm
205mm
ø100mm
110mm
143mm

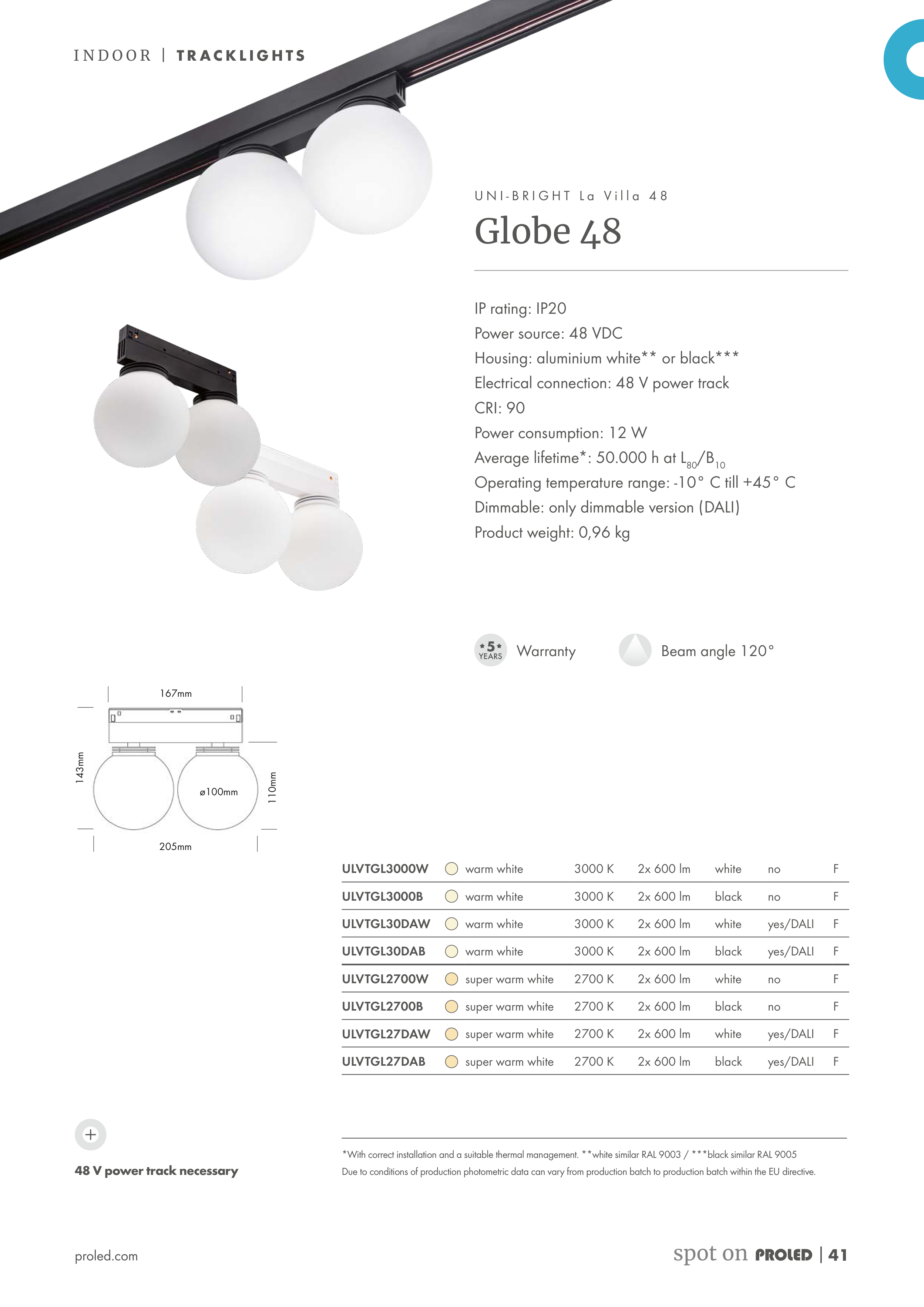

U N I - B R I G H T L a V i l l a 4 8
Globe 48
IP rating: IP20
Power source: 48 VDC
Housing: aluminium white** or black***
Electrical connection: 48 V power track
CRI: 90
Power consumption: 12 W
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10° C till +45° C
Dimmable: only dimmable version (DALI)
Product weight: 0,96 kg
ULVTGL3000W
warm white
3000 K
2x 600 lm
white
no
F
ULVTGL3000B
warm white
3000 K
2x 600 lm
black
no
F
ULVTGL30DAW
warm white
3000 K
2x 600 lm
white
yes/DALI
F
ULVTGL30DAB
warm white
3000 K
2x 600 lm
black
yes/DALI
F
ULVTGL2700W
super warm white
2700 K
2x 600 lm
white
no
F
ULVTGL2700B
super warm white
2700 K
2x 600 lm
black
no
F
ULVTGL27DAW
super warm white
2700 K
2x 600 lm
white
yes/DALI
F
ULVTGL27DAB
super warm white
2700 K
2x 600 lm
black
yes/DALI
F
*With correct installation and a suitable thermal management. **white similar RAL 9003 / ***black similar RAL 9005
Due to conditions of production photometric data can vary from production batch to production batch within the EU directive.
Warranty
5
YEARS
Beam angle 120°
48 V power track necessary
proled.com
I N D O O R | T R AC K L I G H T S
spot on
| 41
