4mm
4mm
1,5mm
50mm
6,25mm
5m

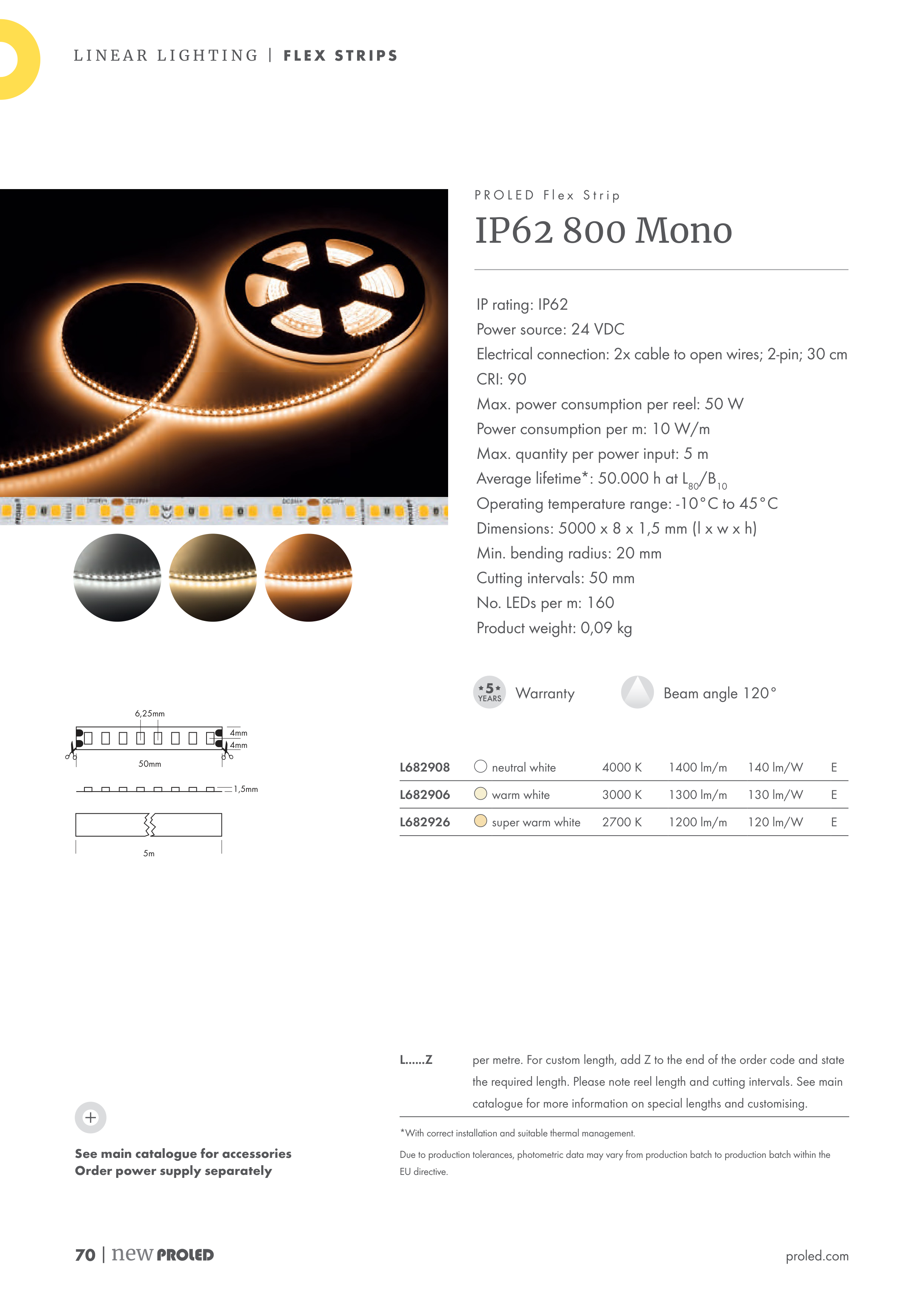

L I N E A R L I G H T I N G | F L E X S T R I P S
P R O L E D F l e x S t r i p
IP62 800 Mono
IP rating: IP62
Power source: 24 VDC
Electrical connection: 2x cable to open wires; 2-pin; 30 cm
CRI: 90
Max. power consumption per reel: 50 W
Power consumption per m: 10 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 8 x 1,5 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 50 mm
No. LEDs per m: 160
Product weight: 0,09 kg
L682908
neutral white
4000 K
1400 lm/m
140 lm/W
E
L682906
warm white
3000 K
1300 lm/m
130 lm/W
E
L682926
super warm white
2700 K
1200 lm/m
120 lm/W
E
L......Z
per metre. For custom length, add Z to the end of the order code and state
the required length. Please note reel length and cutting intervals. See main
catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
Warranty
5
YEARS
Beam angle 120°
See main catalogue for accessories
Order power supply separately
70 | new
proled.com
