4mm
4mm
3mm
50mm
6,25mm
5m

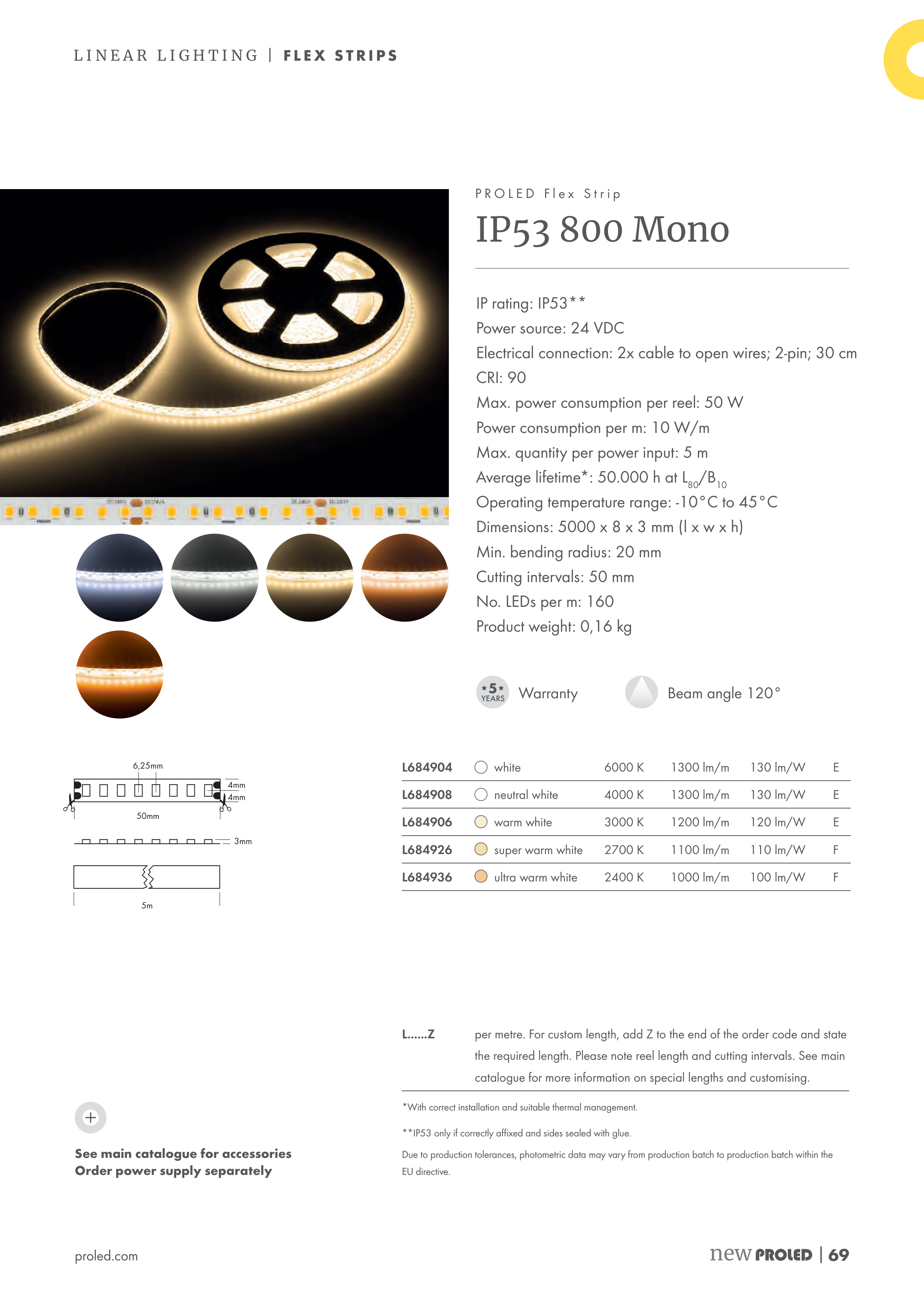

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP53**
Power source: 24 VDC
Electrical connection: 2x cable to open wires; 2-pin; 30 cm
CRI: 90
Max. power consumption per reel: 50 W
Power consumption per m: 10 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 8 x 3 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 50 mm
No. LEDs per m: 160
Product weight: 0,16 kg
L684904
white
6000 K
1300 lm/m
130 lm/W
E
L684908
neutral white
4000 K
1300 lm/m
130 lm/W
E
L684906
warm white
3000 K
1200 lm/m
120 lm/W
E
L684926
super warm white
2700 K
1100 lm/m
110 lm/W
F
L684936
ultra warm white
2400 K
1000 lm/m
100 lm/W
F
Warranty
5
YEARS
L......Z
per metre. For custom length, add Z to the end of the order code and state
the required length. Please note reel length and cutting intervals. See main
catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
**IP53 only if correctly affixed and sides sealed with glue.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
Beam angle 120°
See main catalogue for accessories
Order power supply separately
P R O L E D F l e x S t r i p
IP53 800 Mono
new
| 69
proled.com
