5,5mm
5,5mm
6mm
100mm
12,5mm
5m
L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP68**
Power source: 24 VDC
Electrical connection: 1x cable with male connector; 2-pin; 30 cm
CRI: 90
Max. power consumption per reel: 25 W
Power consumption per m: 5 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 11 x 6 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 100 mm
No. LEDs per m: 80
Product weight: 0,43 kg
L645904
white
6000 K
600 lm/m
120 lm/W
E
L645908
neutral white
4000 K
600 lm/m
120 lm/W
E
L645906
warm white
3000 K
550 lm/m
110 lm/W
F
L645926
super warm white
2700 K
500 lm/m
100 lm/W
F
L645936
ultra warm white
2400 K
450 lm/m
90 lm/W
G
L......Z
per metre. For custom length, add Z to the end of the order code and state
the required length. Please note reel length and cutting intervals. See main
catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
**Supply connectors/end caps IP65 if correctly sealed.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
Beam angle 120°
See main catalogue for accessories
Order power supply separately

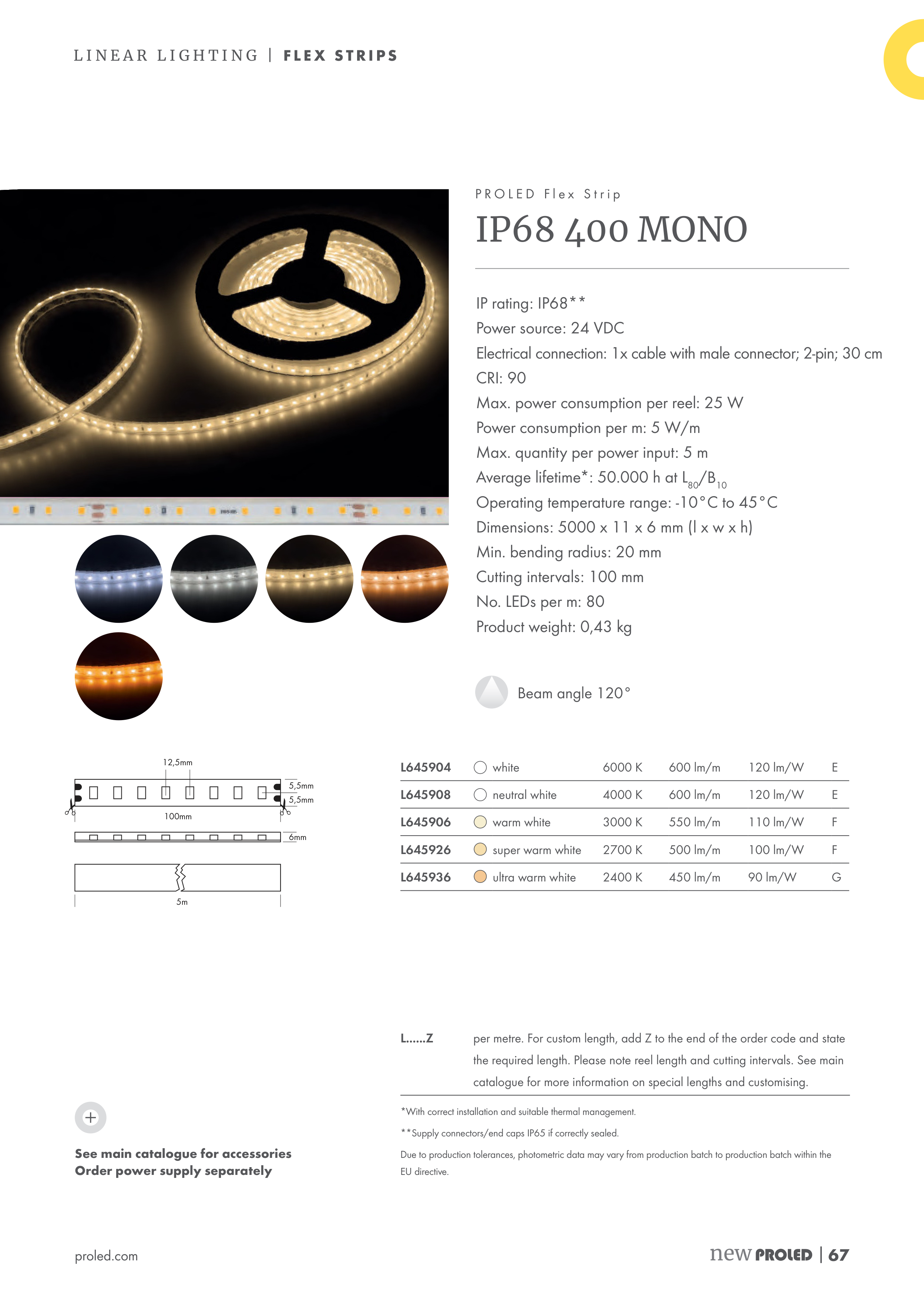

P R O L E D F l e x S t r i p
IP68 400 MONO
new
| 67
proled.com
