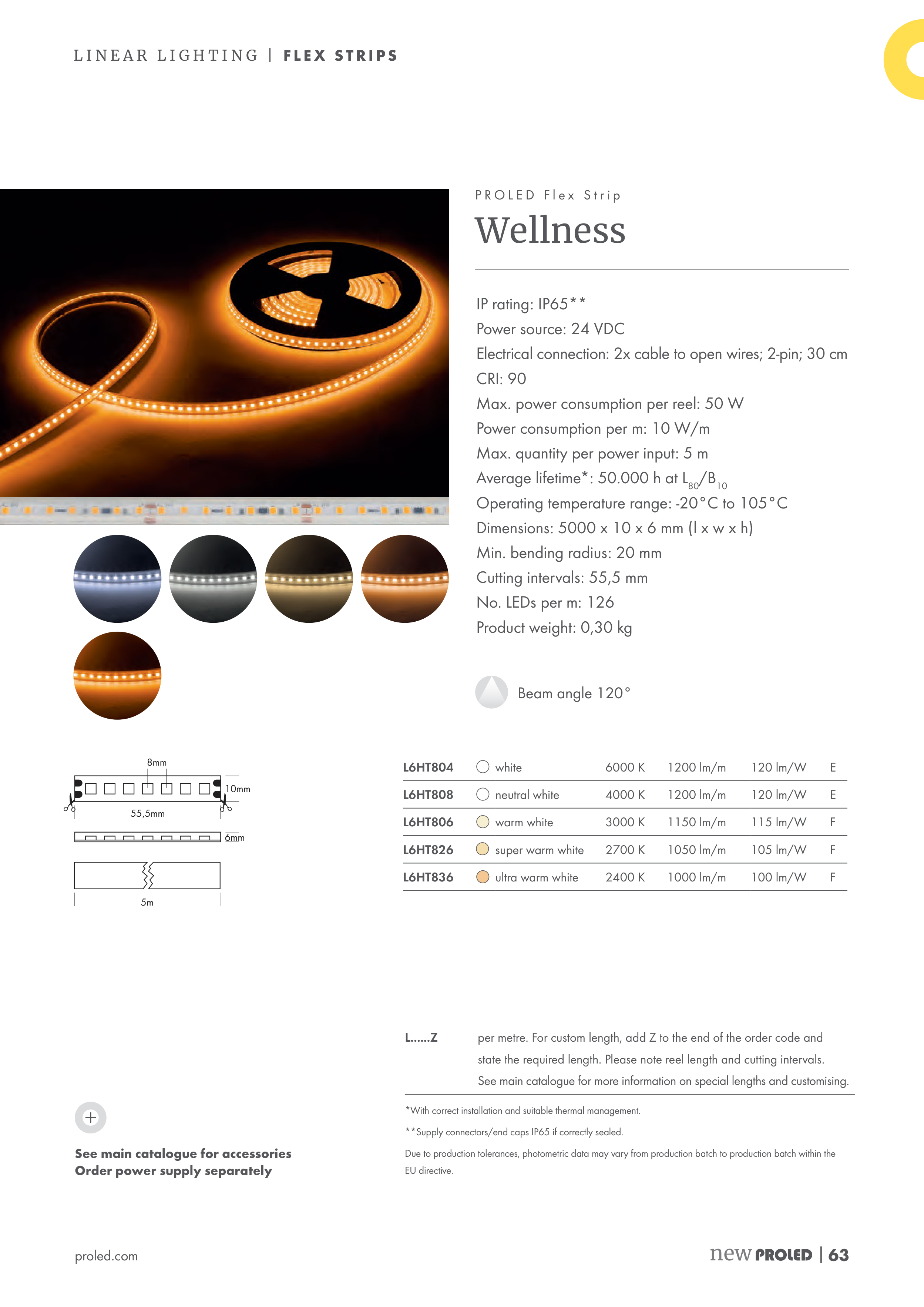

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP65**
Power source: 24 VDC
Electrical connection: 2x cable to open wires; 2-pin; 30 cm
CRI: 90
Max. power consumption per reel: 50 W
Power consumption per m: 10 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -20°C to 105°C
Dimensions: 5000 x 10 x 6 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 55,5 mm
No. LEDs per m: 126
Product weight: 0,30 kg
L6HT804
white
6000 K
1200 lm/m
120 lm/W
E
L6HT808
neutral white
4000 K
1200 lm/m
120 lm/W
E
L6HT806
warm white
3000 K
1150 lm/m
115 lm/W
F
L6HT826
super warm white
2700 K
1050 lm/m
105 lm/W
F
L6HT836
ultra warm white
2400 K
1000 lm/m
100 lm/W
F
Beam angle 120°
L......Z
per metre. For custom length, add Z to the end of the order code and
state the required length. Please note reel length and cutting intervals.
See main catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
**Supply connectors/end caps IP65 if correctly sealed.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
See main catalogue for accessories
Order power supply separately
P R O L E D F l e x S t r i p
Wellness
new
| 63
proled.com
