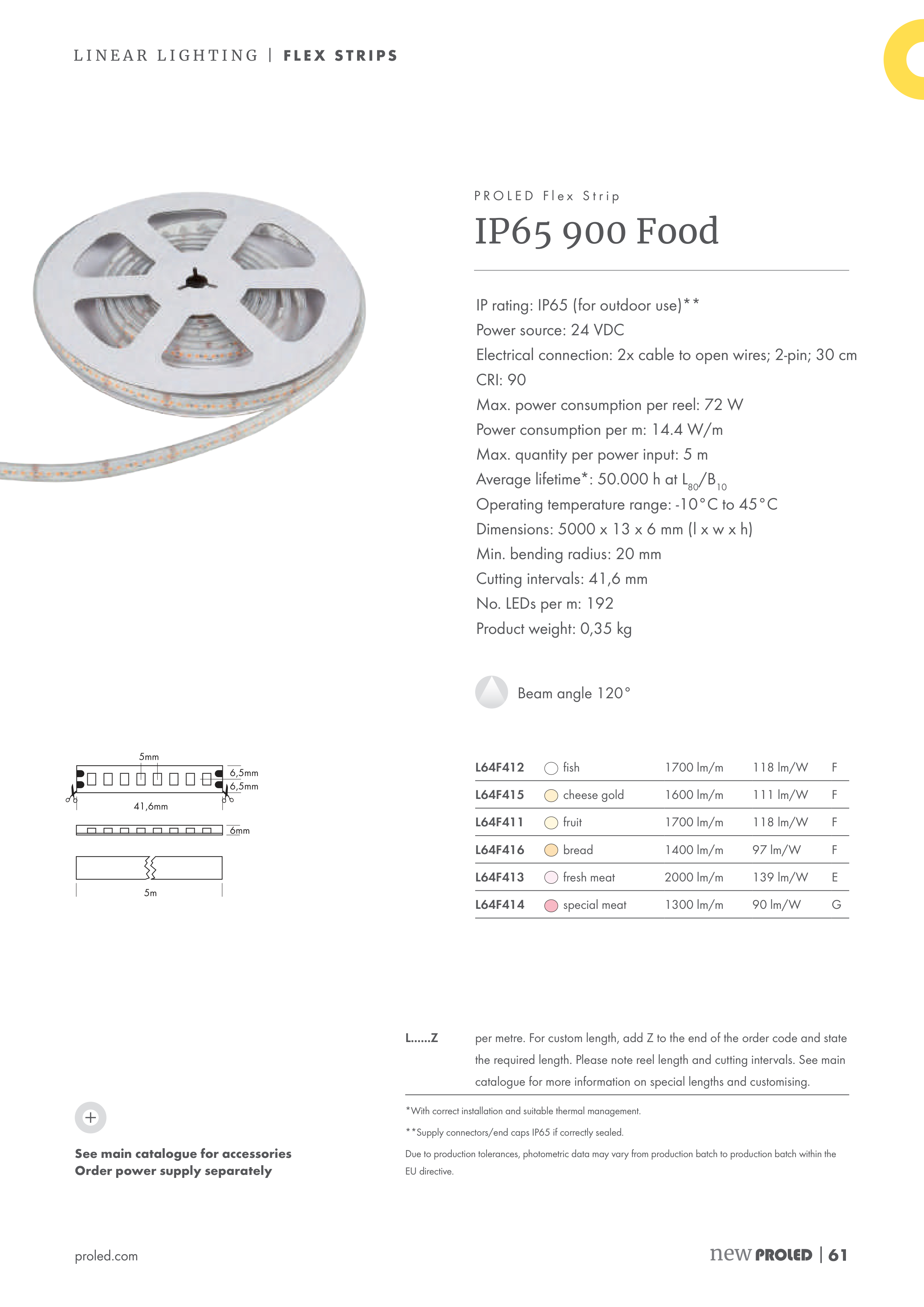

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP65 (for outdoor use)**
Power source: 24 VDC
Electrical connection: 2x cable to open wires; 2-pin; 30 cm
CRI: 90
Max. power consumption per reel: 72 W
Power consumption per m: 14.4 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 13 x 6 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 41,6 mm
No. LEDs per m: 192
Product weight: 0,35 kg
L64F412
fish
1700 lm/m
118 lm/W
F
L64F415
cheese gold
1600 lm/m
111 lm/W
F
L64F411
fruit
1700 lm/m
118 lm/W
F
L64F416
bread
1400 lm/m
97 lm/W
F
L64F413
fresh meat
2000 lm/m
139 lm/W
E
L64F414
special meat
1300 lm/m
90 lm/W
G
Beam angle 120°
L......Z
per metre. For custom length, add Z to the end of the order code and state
the required length. Please note reel length and cutting intervals. See main
catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
**Supply connectors/end caps IP65 if correctly sealed.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
See main catalogue for accessories
Order power supply separately
P R O L E D F l e x S t r i p
IP65 900 Food
new
| 61
proled.com
