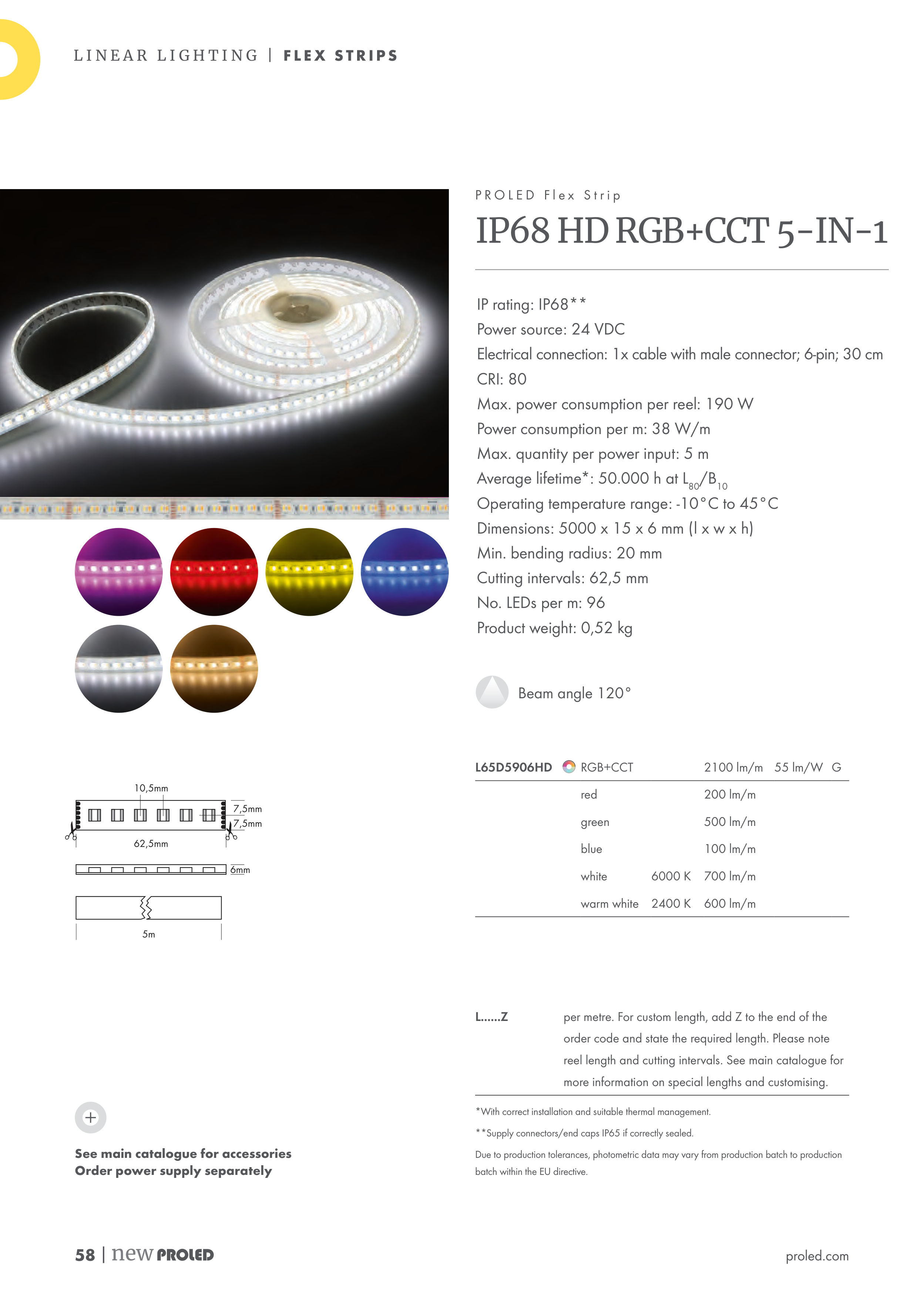

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP68**
Power source: 24 VDC
Electrical connection: 1x cable with male connector; 6-pin; 30 cm
CRI: 80
Max. power consumption per reel: 190 W
Power consumption per m: 38 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 15 x 6 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 62,5 mm
No. LEDs per m: 96
Product weight: 0,52 kg
L65D5906HD
RGB+CCT
2100 lm/m
55 lm/W G
red
200 lm/m
green
500 lm/m
blue
100 lm/m
white
6000 K
700 lm/m
warm white
2400 K
600 lm/m
L......Z
per metre. For custom length, add Z to the end of the
order code and state the required length. Please note
reel length and cutting intervals. See main catalogue for
more information on special lengths and customising.
*With correct installation and suitable thermal management.
**Supply connectors/end caps IP65 if correctly sealed.
Due to production tolerances, photometric data may vary from production batch to production
batch within the EU directive.
Beam angle 120°
See main catalogue for accessories
Order power supply separately
P R O L E D F l e x S t r i p
IP68 HD RGB+CCT 5-IN-1
58 | new
proled.com
