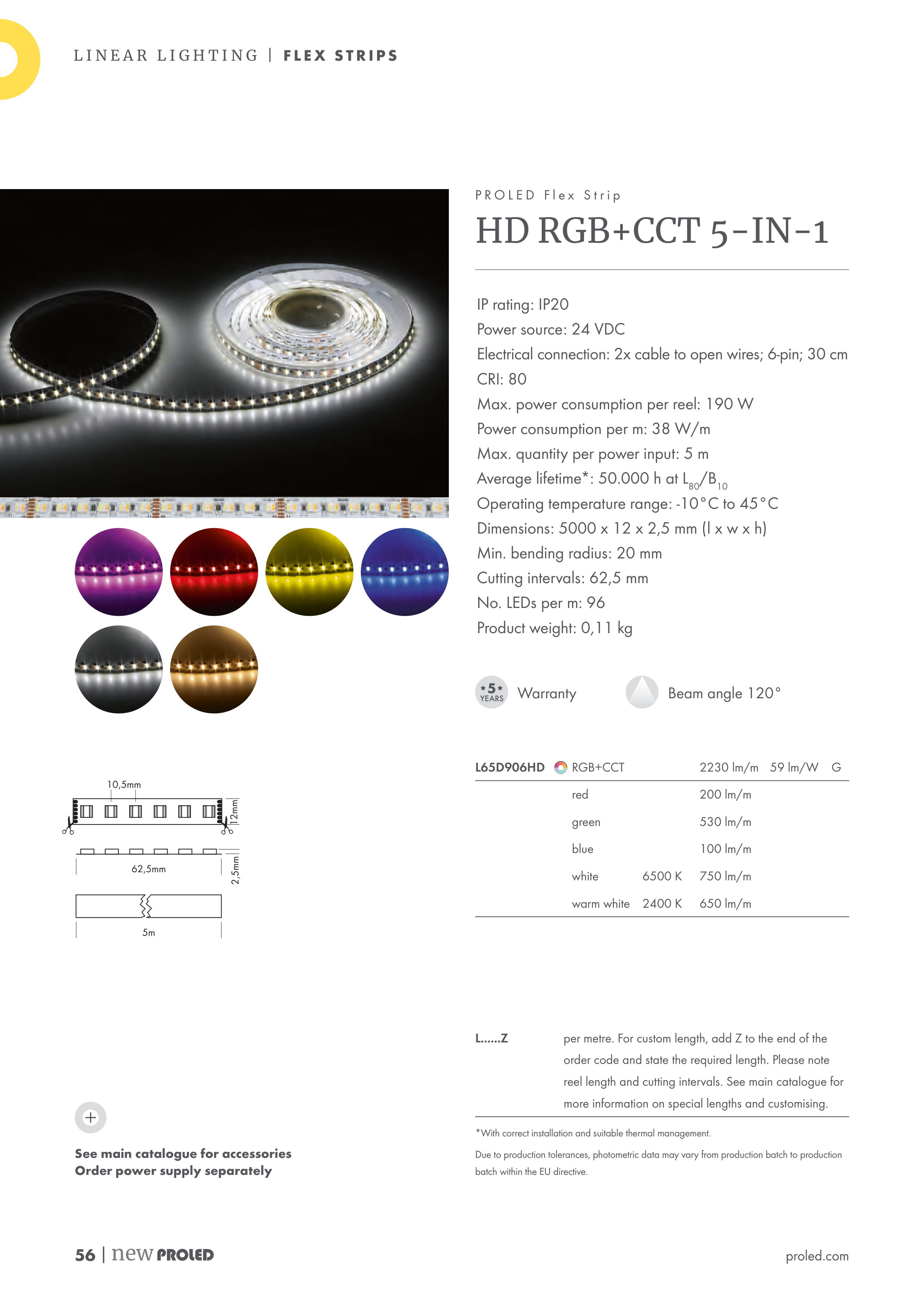

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP20
Power source: 24 VDC
Electrical connection: 2x cable to open wires; 6-pin; 30 cm
CRI: 80
Max. power consumption per reel: 190 W
Power consumption per m: 38 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 12 x 2,5 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 62,5 mm
No. LEDs per m: 96
Product weight: 0,11 kg
Warranty
5
YEARS
L65D906HD
RGB+CCT
2230 lm/m
59 lm/W
G
red
200 lm/m
green
530 lm/m
blue
100 lm/m
white
6500 K
750 lm/m
warm white
2400 K
650 lm/m
L......Z
per metre. For custom length, add Z to the end of the
order code and state the required length. Please note
reel length and cutting intervals. See main catalogue for
more information on special lengths and customising.
*With correct installation and suitable thermal management.
Due to production tolerances, photometric data may vary from production batch to production
batch within the EU directive.
Beam angle 120°
See main catalogue for accessories
Order power supply separately
P R O L E D F l e x S t r i p
HD RGB+CCT 5-IN-1
56 | new
proled.com
