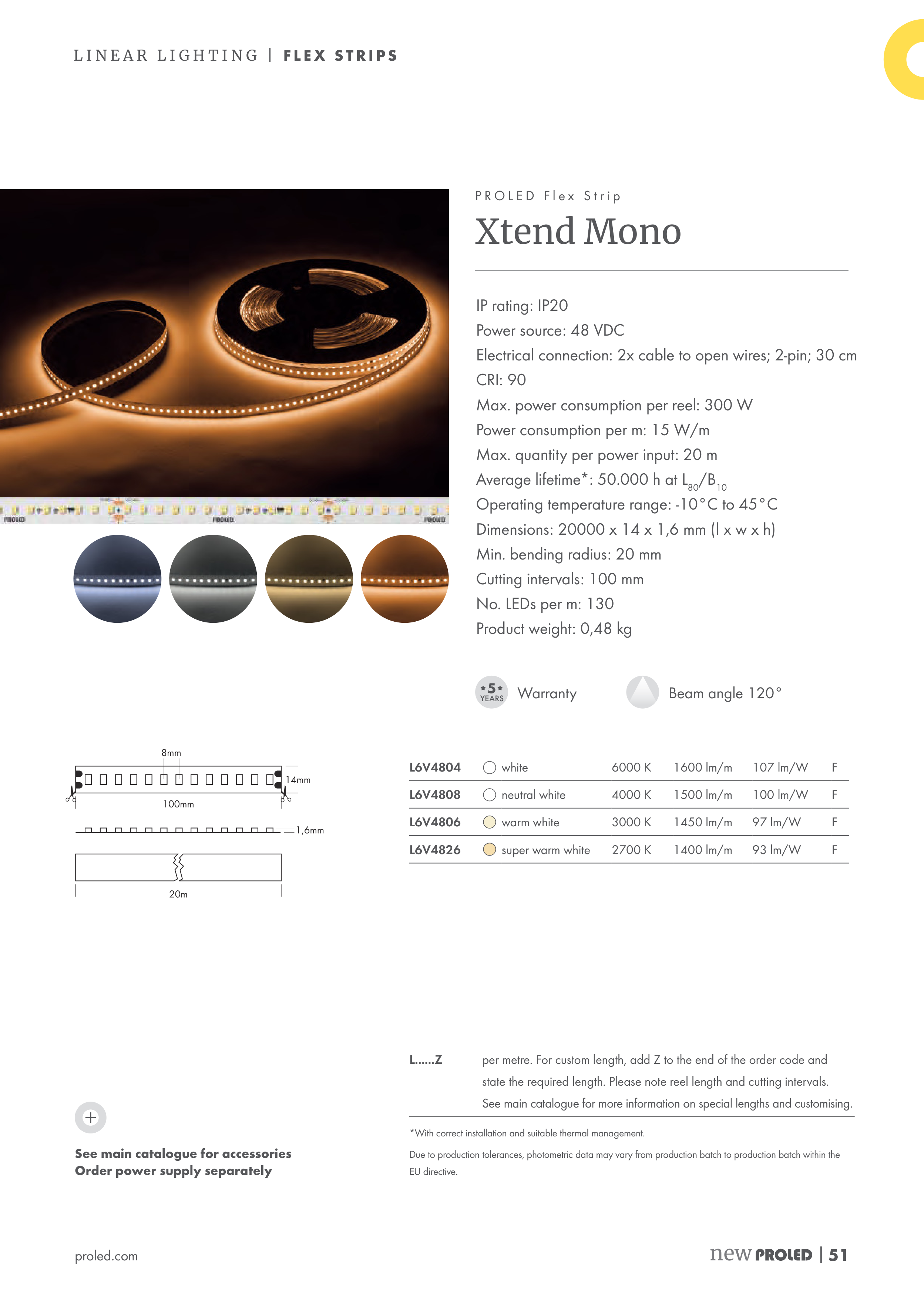

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP20
Power source: 48 VDC
Electrical connection: 2x cable to open wires; 2-pin; 30 cm
CRI: 90
Max. power consumption per reel: 300 W
Power consumption per m: 15 W/m
Max. quantity per power input: 20 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 20000 x 14 x 1,6 mm (l x w x h)
Min. bending radius: 20 mm
Cutting intervals: 100 mm
No. LEDs per m: 130
Product weight: 0,48 kg
L6V4804
white
6000 K
1600 lm/m
107 lm/W
F
L6V4808
neutral white
4000 K
1500 lm/m
100 lm/W
F
L6V4806
warm white
3000 K
1450 lm/m
97 lm/W
F
L6V4826
super warm white
2700 K
1400 lm/m
93 lm/W
F
Warranty
5
YEARS
L......Z
per metre. For custom length, add Z to the end of the order code and
state the required length. Please note reel length and cutting intervals.
See main catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
Beam angle 120°
See main catalogue for accessories
Order power supply separately
P R O L E D F l e x S t r i p
Xtend Mono
new
| 51
proled.com
