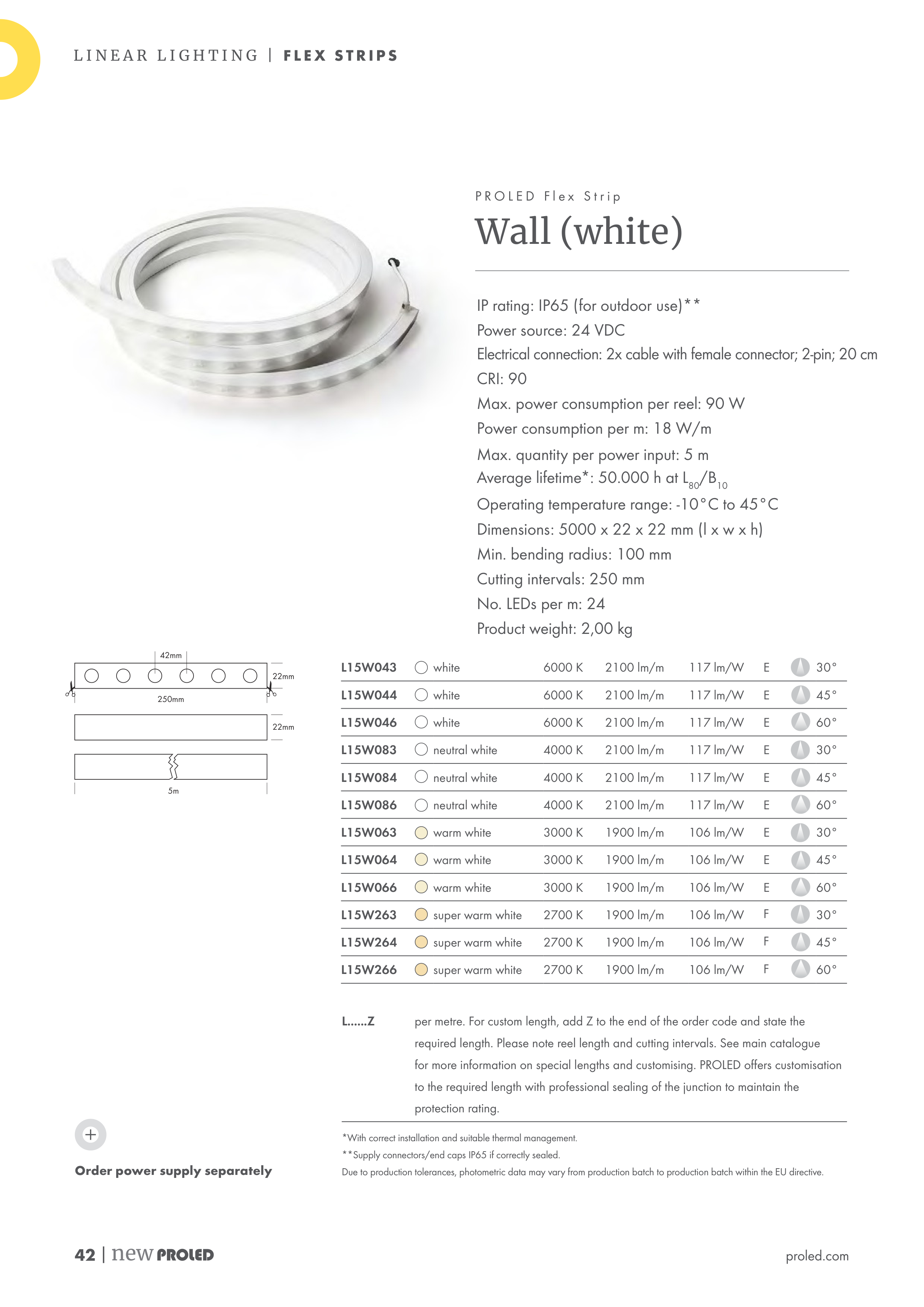

L I N E A R L I G H T I N G | F L E X S T R I P S
P R O L E D F l e x S t r i p
Wall (white)
IP rating: IP65 (for outdoor use)**
Power source: 24 VDC
Electrical connection: 2x cable with female connector; 2-pin; 20 cm
CRI: 90
Max. power consumption per reel: 90 W
Power consumption per m: 18 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 22 x 22 mm (l x w x h)
Min. bending radius: 100 mm
Cutting intervals: 250 mm
No. LEDs per m: 24
Product weight: 2,00 kg
L15W043
white
6000 K
2100 lm/m
117 lm/W
E
30°
L15W044
white
6000 K
2100 lm/m
117 lm/W
E
45°
L15W046
white
6000 K
2100 lm/m
117 lm/W
E
60°
L15W083
neutral white
4000 K
2100 lm/m
117 lm/W
E
30°
L15W084
neutral white
4000 K
2100 lm/m
117 lm/W
E
45°
L15W086
neutral white
4000 K
2100 lm/m
117 lm/W
E
60°
L15W063
warm white
3000 K
1900 lm/m
106 lm/W
E
30°
L15W064
warm white
3000 K
1900 lm/m
106 lm/W
E
45°
L15W066
warm white
3000 K
1900 lm/m
106 lm/W
E
60°
L15W263
super warm white
2700 K
1900 lm/m
106 lm/W
F
30°
L15W264
super warm white
2700 K
1900 lm/m
106 lm/W
F
45°
L15W266
super warm white
2700 K
1900 lm/m
106 lm/W
F
60°
L......Z
per metre. For custom length, add Z to the end of the order code and state the
required length. Please note reel length and cutting intervals. See main catalogue
for more information on special lengths and customising. PROLED offers customisation
to the required length with professional sealing of the junction to maintain the
protection rating.
*With correct installation and suitable thermal management.
**Supply connectors/end caps IP65 if correctly sealed.
Due to production tolerances, photometric data may vary from production batch to production batch within the EU directive.
Order power supply separately
