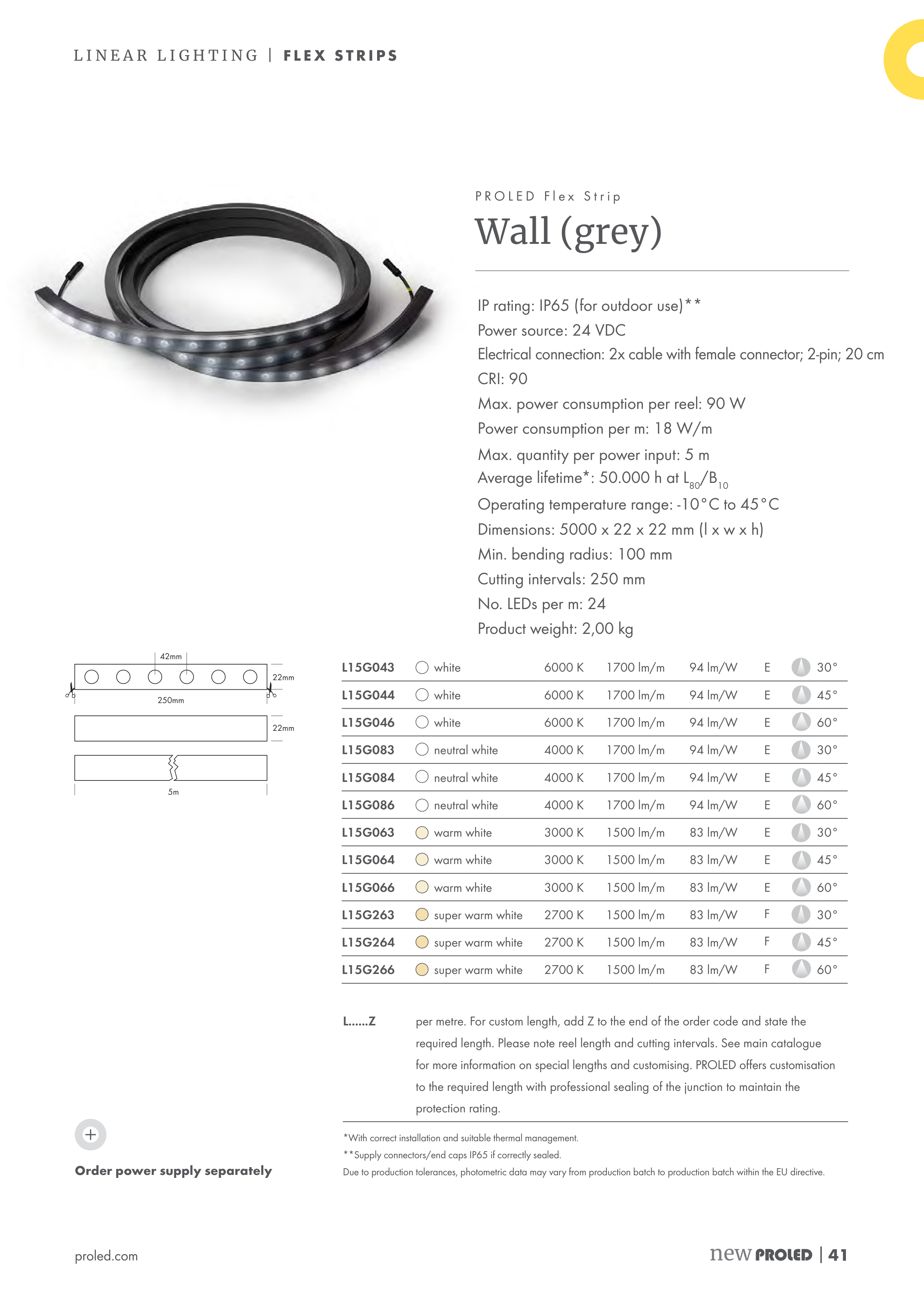

L I N E A R L I G H T I N G | F L E X S T R I P S
P R O L E D F l e x S t r i p
Wall (grey)
L......Z
per metre. For custom length, add Z to the end of the order code and state the
required length. Please note reel length and cutting intervals. See main catalogue
for more information on special lengths and customising. PROLED offers customisation
to the required length with professional sealing of the junction to maintain the
protection rating.
*With correct installation and suitable thermal management.
**Supply connectors/end caps IP65 if correctly sealed.
Due to production tolerances, photometric data may vary from production batch to production batch within the EU directive.
Order power supply separately
IP rating: IP65 (for outdoor use)**
Power source: 24 VDC
Electrical connection: 2x cable with female connector; 2-pin; 20 cm
CRI: 90
Max. power consumption per reel: 90 W
Power consumption per m: 18 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 22 x 22 mm (l x w x h)
Min. bending radius: 100 mm
Cutting intervals: 250 mm
No. LEDs per m: 24
Product weight: 2,00 kg
L15G043
white
6000 K
1700 lm/m
94 lm/W
E
30°
L15G044
white
6000 K
1700 lm/m
94 lm/W
E
45°
L15G046
white
6000 K
1700 lm/m
94 lm/W
E
60°
L15G083
neutral white
4000 K
1700 lm/m
94 lm/W
E
30°
L15G084
neutral white
4000 K
1700 lm/m
94 lm/W
E
45°
L15G086
neutral white
4000 K
1700 lm/m
94 lm/W
E
60°
L15G063
warm white
3000 K
1500 lm/m
83 lm/W
E
30°
L15G064
warm white
3000 K
1500 lm/m
83 lm/W
E
45°
L15G066
warm white
3000 K
1500 lm/m
83 lm/W
E
60°
L15G263
super warm white
2700 K
1500 lm/m
83 lm/W
F
30°
L15G264
super warm white
2700 K
1500 lm/m
83 lm/W
F
45°
L15G266
super warm white
2700 K
1500 lm/m
83 lm/W
F
60°
new
| 41
