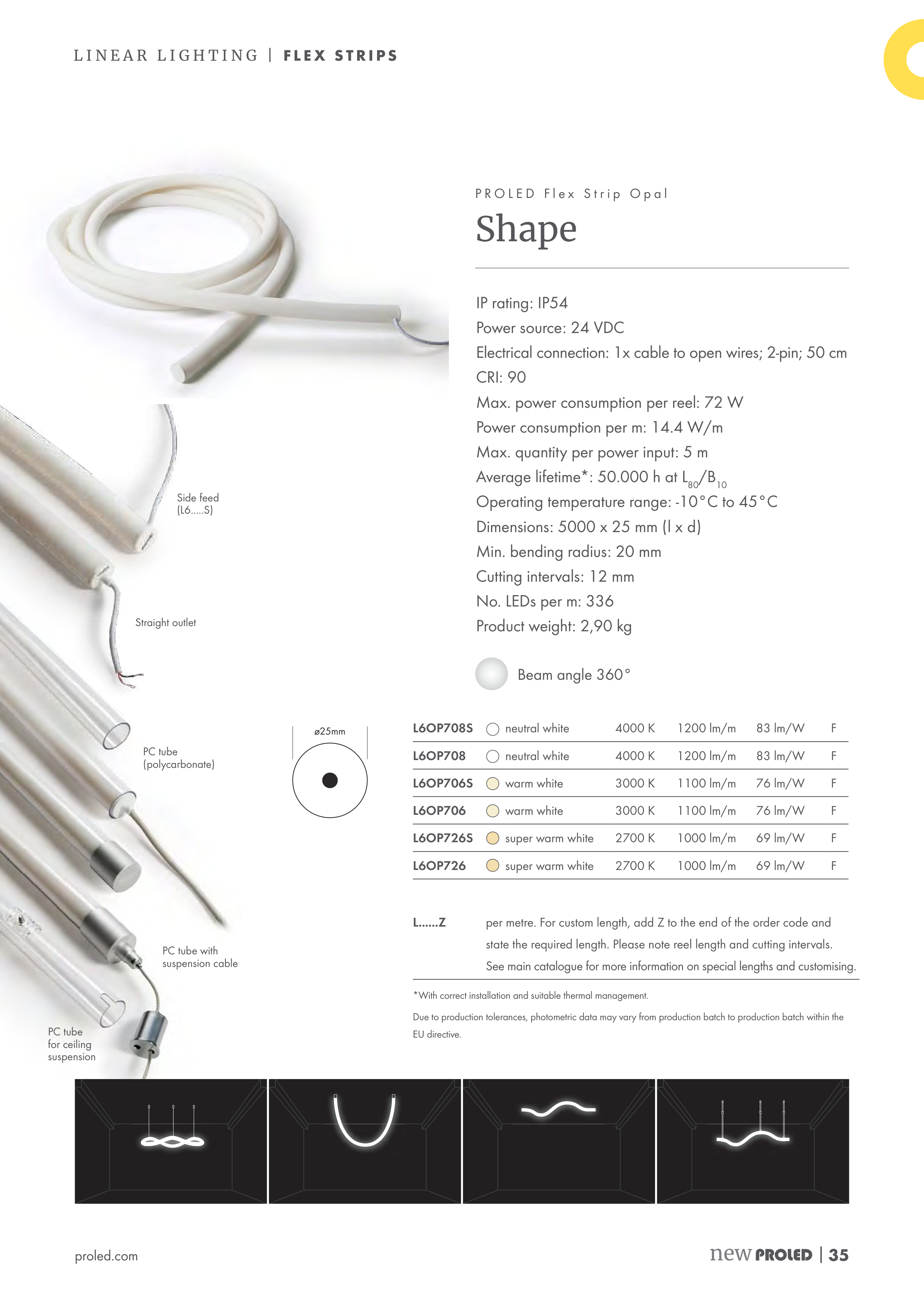

L I N E A R L I G H T I N G | F L E X S T R I P S
IP rating: IP54
Power source: 24 VDC
Electrical connection: 1x cable to open wires; 2-pin; 50 cm
CRI: 90
Max. power consumption per reel: 72 W
Power consumption per m: 14.4 W/m
Max. quantity per power input: 5 m
Average lifetime*: 50.000 h at L80/B10
Operating temperature range: -10°C to 45°C
Dimensions: 5000 x 25 mm (l x d)
Min. bending radius: 20 mm
Cutting intervals: 12 mm
No. LEDs per m: 336
Product weight: 2,90 kg
P R O L E D F l e x S t r i p O p a l
Shape
Side feed
(L6.....S)
Straight outlet
PC tube
(polycarbonate)
PC tube with
suspension cable
PC tube
for ceiling
suspension
L6OP708S
neutral white
4000 K
1200 lm/m
83 lm/W
F
L6OP708
neutral white
4000 K
1200 lm/m
83 lm/W
F
L6OP706S
warm white
3000 K
1100 lm/m
76 lm/W
F
L6OP706
warm white
3000 K
1100 lm/m
76 lm/W
F
L6OP726S
super warm white
2700 K
1000 lm/m
69 lm/W
F
L6OP726
super warm white
2700 K
1000 lm/m
69 lm/W
F
Beam angle 360°
L......Z
per metre. For custom length, add Z to the end of the order code and
state the required length. Please note reel length and cutting intervals.
See main catalogue for more information on special lengths and customising.
*With correct installation and suitable thermal management.
Due to production tolerances, photometric data may vary from production batch to production batch within the
EU directive.
