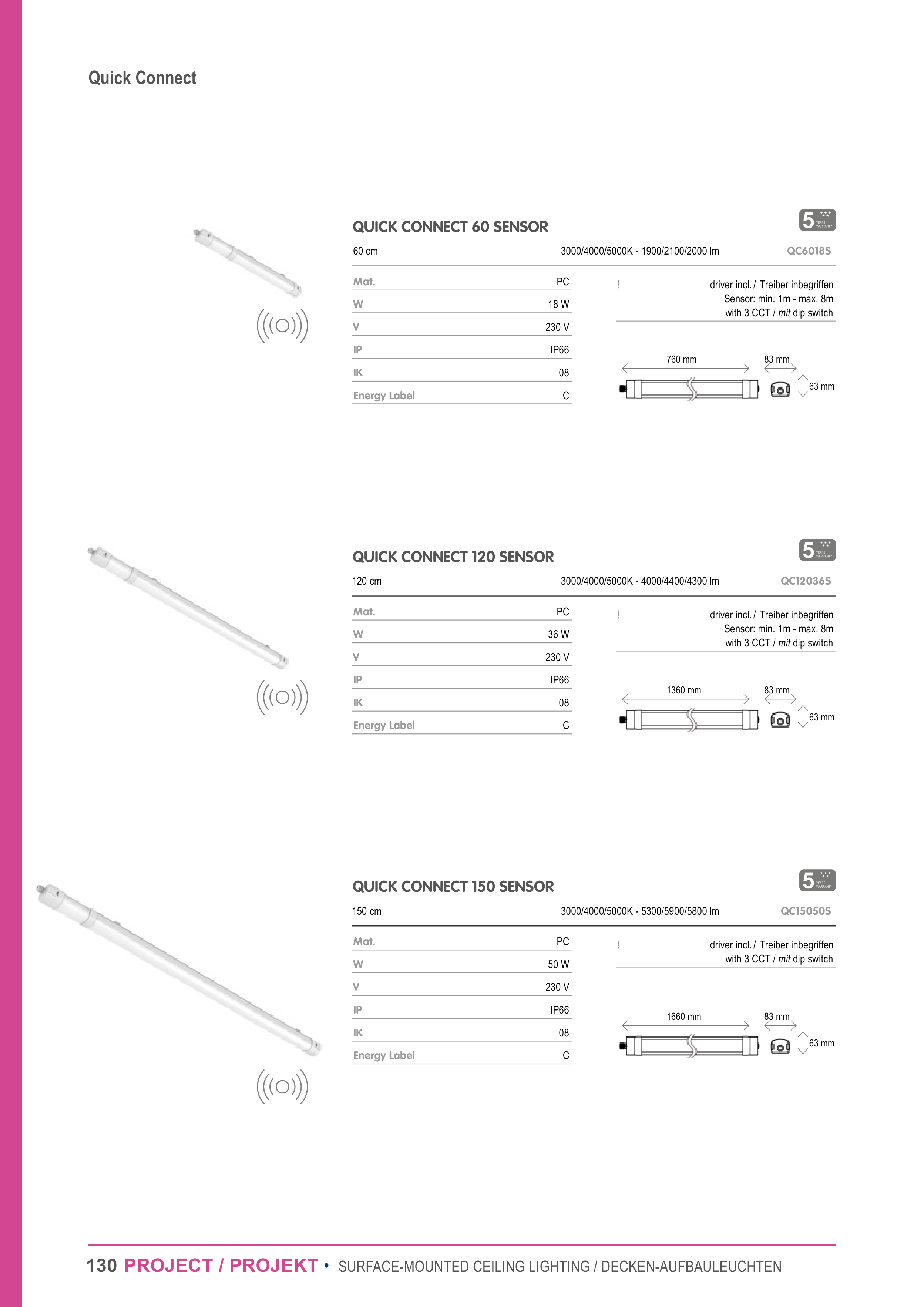

130 PROJECT / PROJEKT • SURFACE-MOUNTED CEILING LIGHTING / DECKEN-AUFBAULEUCHTEN
QUICK CONNECT 60 SENSOR
60 cm
3000/4000/5000K - 1900/2100/2000 lm
QC6018S
Mat.
PC
W
18 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
Sensor: min. 1m - max. 8m
with 3 CCT / mit dip switch
QUICK CONNECT 120 SENSOR
120 cm
3000/4000/5000K - 4000/4400/4300 lm
QC12036S
Mat.
PC
W
36 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
Sensor: min. 1m - max. 8m
with 3 CCT / mit dip switch
QUICK CONNECT 150 SENSOR
150 cm
3000/4000/5000K - 5300/5900/5800 lm
QC15050S
Mat.
PC
W
50 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
with 3 CCT / mit dip switch
760 mm
83 mm
63 mm
1360 mm
83 mm
63 mm
1660 mm
83 mm
63 mm
Quick Connect
