129
unibright.be

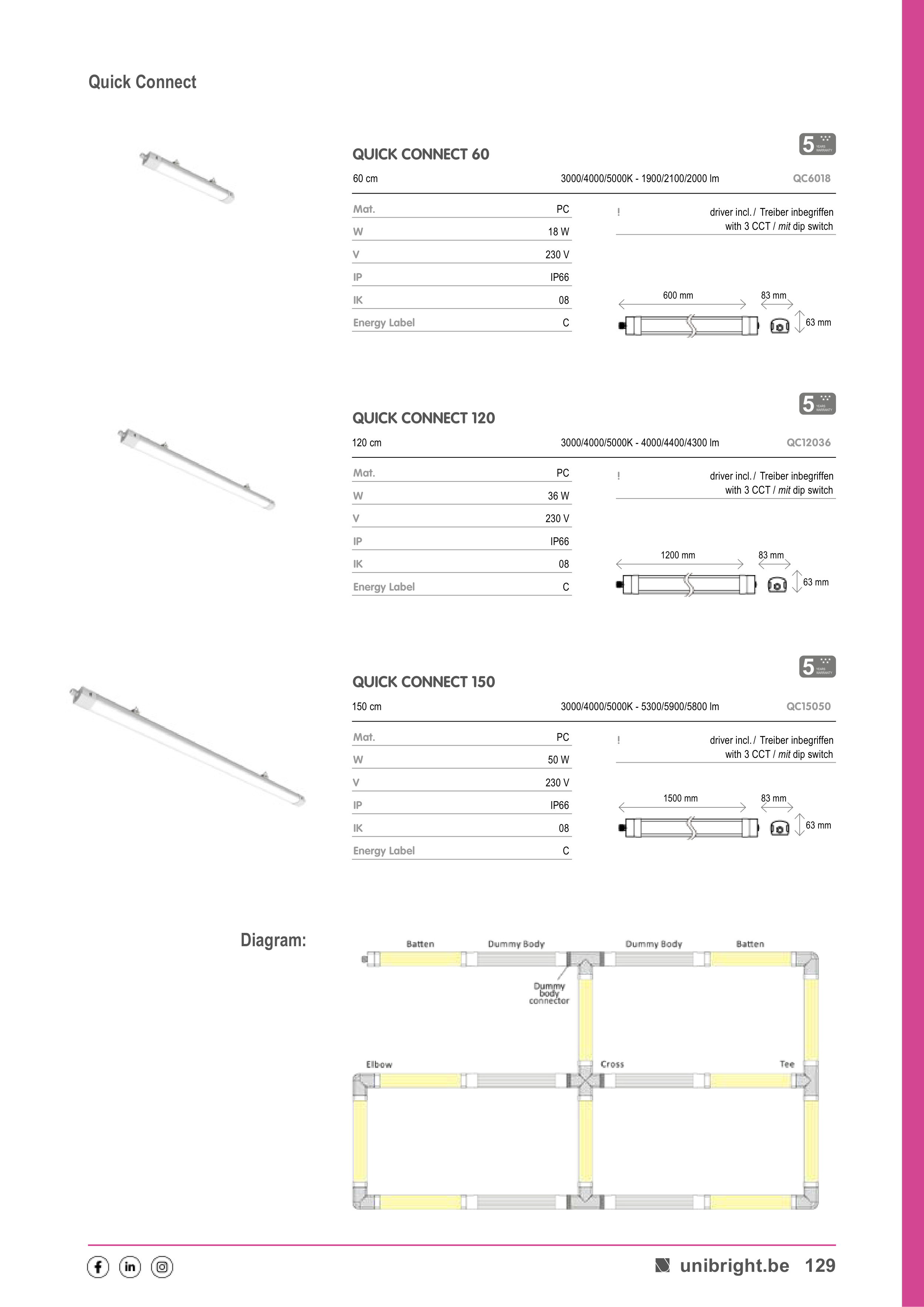

QUICK CONNECT 60
60 cm
3000/4000/5000K - 1900/2100/2000 lm
QC6018
Mat.
PC
W
18 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
with 3 CCT / mit dip switch
QUICK CONNECT 120
120 cm
3000/4000/5000K - 4000/4400/4300 lm
QC12036
Mat.
PC
W
36 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
with 3 CCT / mit dip switch
QUICK CONNECT 150
150 cm
3000/4000/5000K - 5300/5900/5800 lm
QC15050
Mat.
PC
W
50 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
with 3 CCT / mit dip switch
Quick Connect
600 mm
83 mm
63 mm
1200 mm
83 mm
63 mm
1500 mm
83 mm
63 mm
Diagram:
