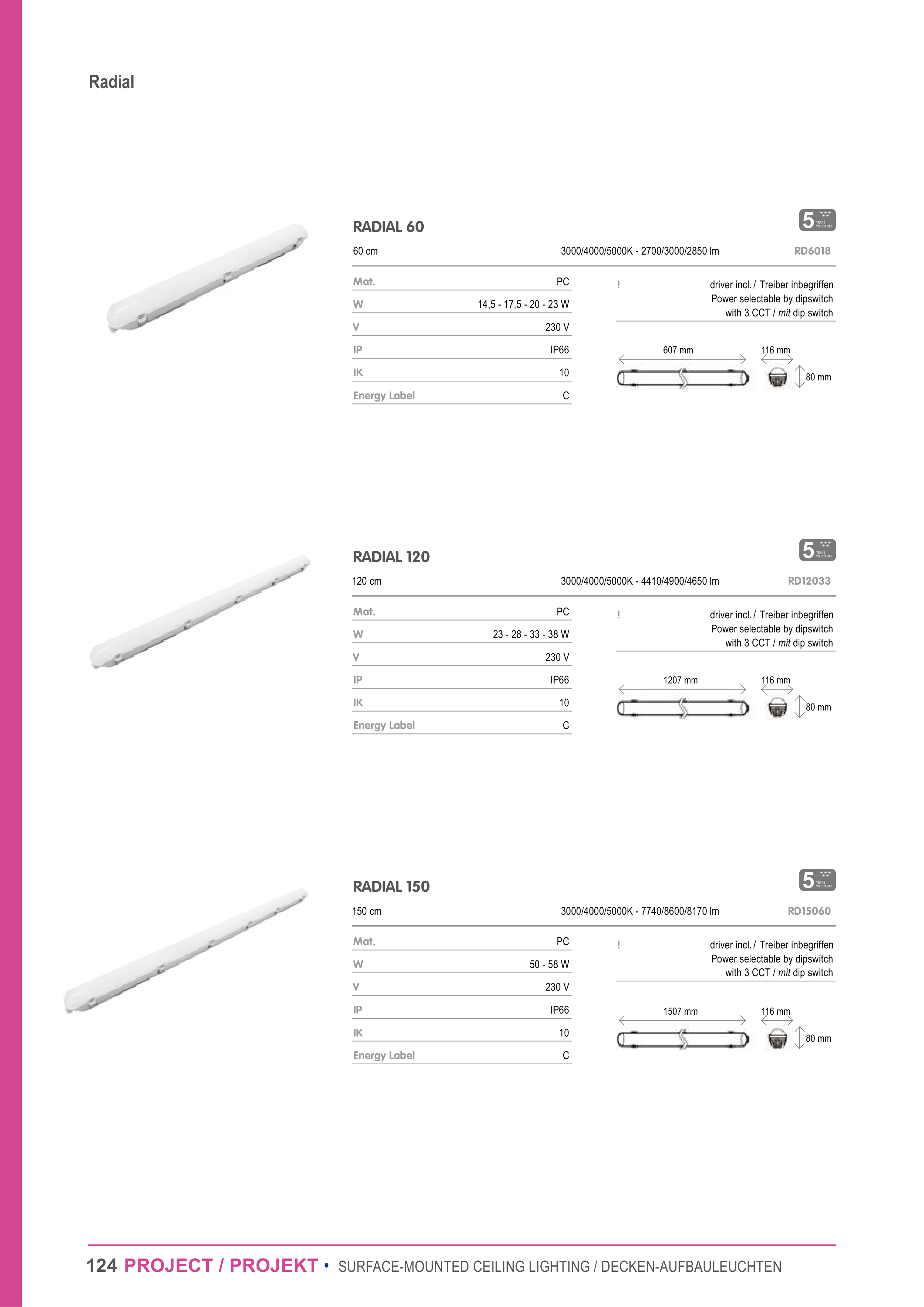

124 PROJECT / PROJEKT • SURFACE-MOUNTED CEILING LIGHTING / DECKEN-AUFBAULEUCHTEN
RADIAL 60
60 cm
3000/4000/5000K - 2700/3000/2850 lm
RD6018
Mat.
PC
W
14,5 - 17,5 - 20 - 23 W
V
230 V
IP
IP66
IK
10
Energy Label
C
!
driver incl. / Treiber inbegriffen
Power selectable by dipswitch
with 3 CCT / mit dip switch
607 mm
116 mm
80 mm
RADIAL 120
120 cm
3000/4000/5000K - 4410/4900/4650 lm
RD12033
Mat.
PC
W
23 - 28 - 33 - 38 W
V
230 V
IP
IP66
IK
10
Energy Label
C
!
driver incl. / Treiber inbegriffen
Power selectable by dipswitch
with 3 CCT / mit dip switch
1207 mm
116 mm
80 mm
RADIAL 150
150 cm
3000/4000/5000K - 7740/8600/8170 lm
RD15060
Mat.
PC
W
50 - 58 W
V
230 V
IP
IP66
IK
10
Energy Label
C
!
driver incl. / Treiber inbegriffen
Power selectable by dipswitch
with 3 CCT / mit dip switch
1507 mm
116 mm
80 mm
Radial
