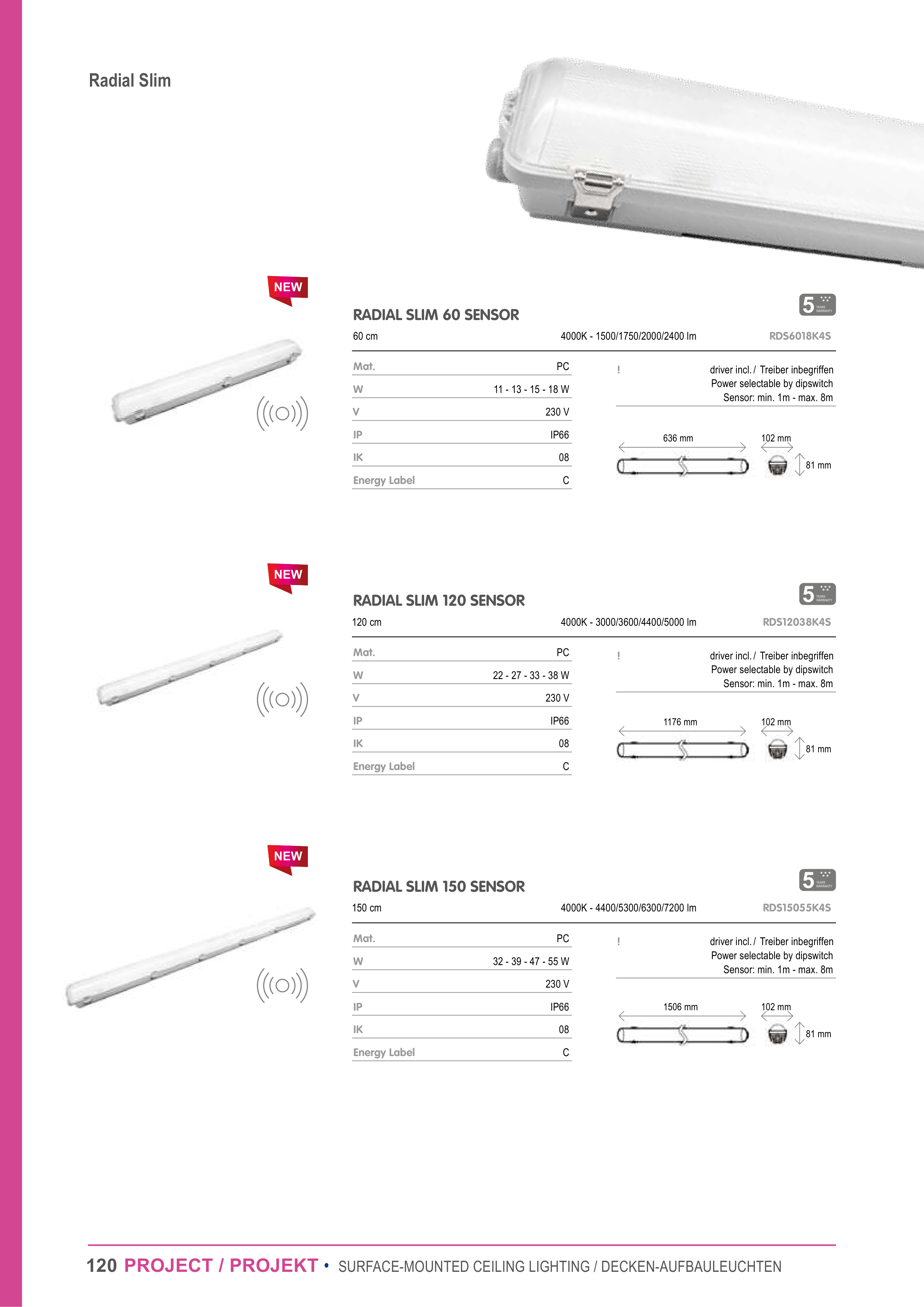

120 PROJECT / PROJEKT • SURFACE-MOUNTED CEILING LIGHTING / DECKEN-AUFBAULEUCHTEN
RADIAL SLIM 60 SENSOR
60 cm
4000K - 1500/1750/2000/2400 lm
RDS6018K4S
Mat.
PC
W
11 - 13 - 15 - 18 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
Power selectable by dipswitch
Sensor: min. 1m - max. 8m
636 mm
102 mm
81 mm
RADIAL SLIM 120 SENSOR
120 cm
4000K - 3000/3600/4400/5000 lm
RDS12038K4S
Mat.
PC
W
22 - 27 - 33 - 38 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
Power selectable by dipswitch
Sensor: min. 1m - max. 8m
1176 mm
102 mm
81 mm
RADIAL SLIM 150 SENSOR
150 cm
4000K - 4400/5300/6300/7200 lm
RDS15055K4S
Mat.
PC
W
32 - 39 - 47 - 55 W
V
230 V
IP
IP66
IK
08
Energy Label
C
!
driver incl. / Treiber inbegriffen
Power selectable by dipswitch
Sensor: min. 1m - max. 8m
1506 mm
102 mm
81 mm
Radial Slim
