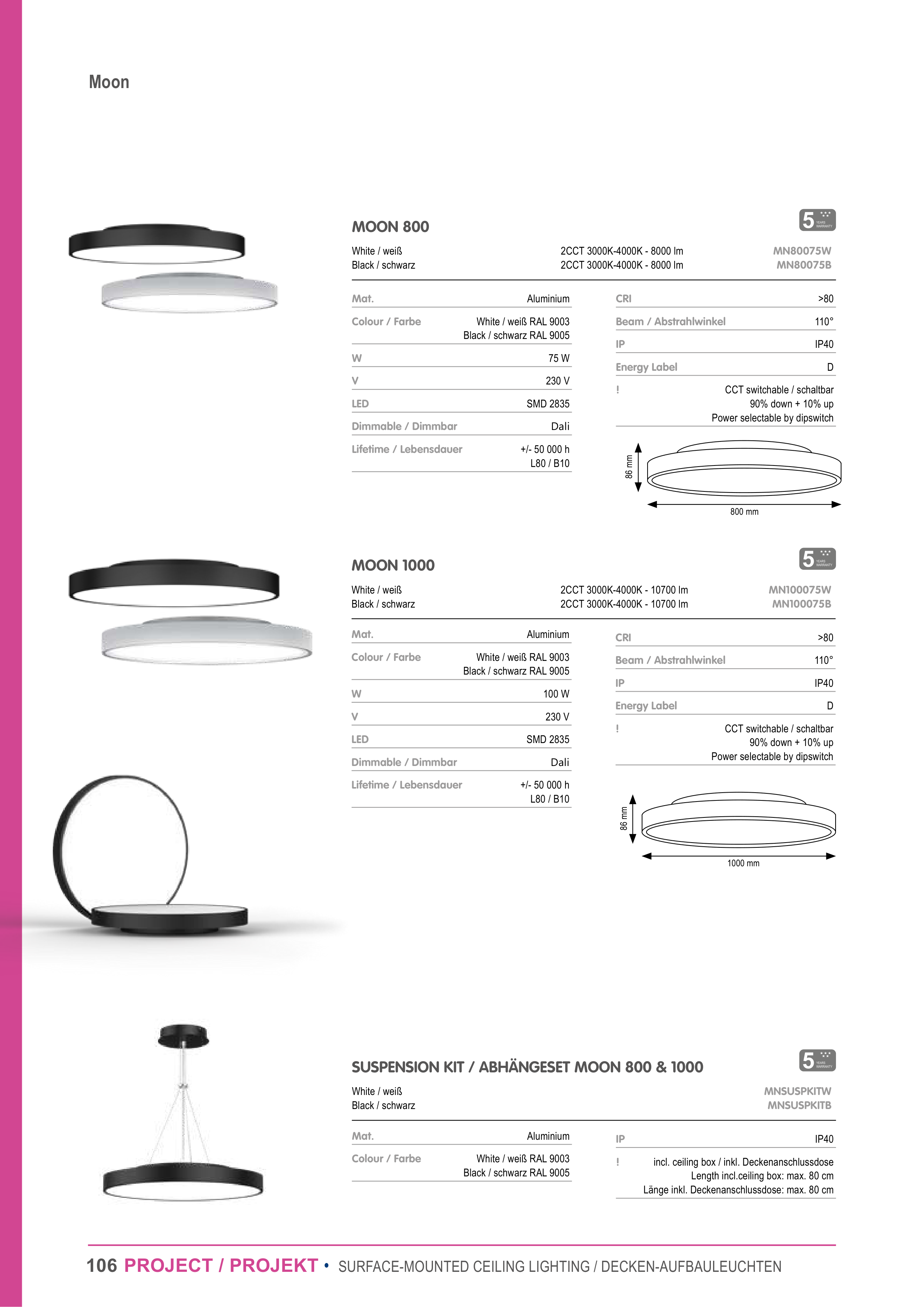

106 PROJECT / PROJEKT • SURFACE-MOUNTED CEILING LIGHTING / DECKEN-AUFBAULEUCHTEN
SUSPENSION KIT / ABHÄNGESET MOON 800 & 1000
White / weiß
MNSUSPKITW
Black / schwarz
MNSUSPKITB
Mat.
Aluminium
Colour / Farbe
White / weiß RAL 9003
Black / schwarz RAL 9005
IP
IP40
!
incl. ceiling box / inkl. Deckenanschlussdose
Length incl.ceiling box: max. 80 cm
Länge inkl. Deckenanschlussdose: max. 80 cm
Moon
MOON 800
White / weiß
2CCT 3000K-4000K - 8000 lm
MN80075W
Black / schwarz
2CCT 3000K-4000K - 8000 lm
MN80075B
Mat.
Aluminium
Colour / Farbe
White / weiß RAL 9003
Black / schwarz RAL 9005
W
75 W
V
230 V
LED
SMD 2835
Dimmable / Dimmbar
Dali
Lifetime / Lebensdauer
+/- 50 000 h
L80 / B10
CRI
>80
Beam / Abstrahlwinkel
110°
IP
IP40
Energy Label
D
!
CCT switchable / schaltbar
90% down + 10% up
Power selectable by dipswitch
1000 mm
86 mm
800 mm
86 mm
MOON 1000
White / weiß
2CCT 3000K-4000K - 10700 lm
MN100075W
Black / schwarz
2CCT 3000K-4000K - 10700 lm
MN100075B
Mat.
Aluminium
Colour / Farbe
White / weiß RAL 9003
Black / schwarz RAL 9005
W
100 W
V
230 V
LED
SMD 2835
Dimmable / Dimmbar
Dali
Lifetime / Lebensdauer
+/- 50 000 h
L80 / B10
CRI
>80
Beam / Abstrahlwinkel
110°
IP
IP40
Energy Label
D
!
CCT switchable / schaltbar
90% down + 10% up
Power selectable by dipswitch
