C O N T R O L S Y S T E M S

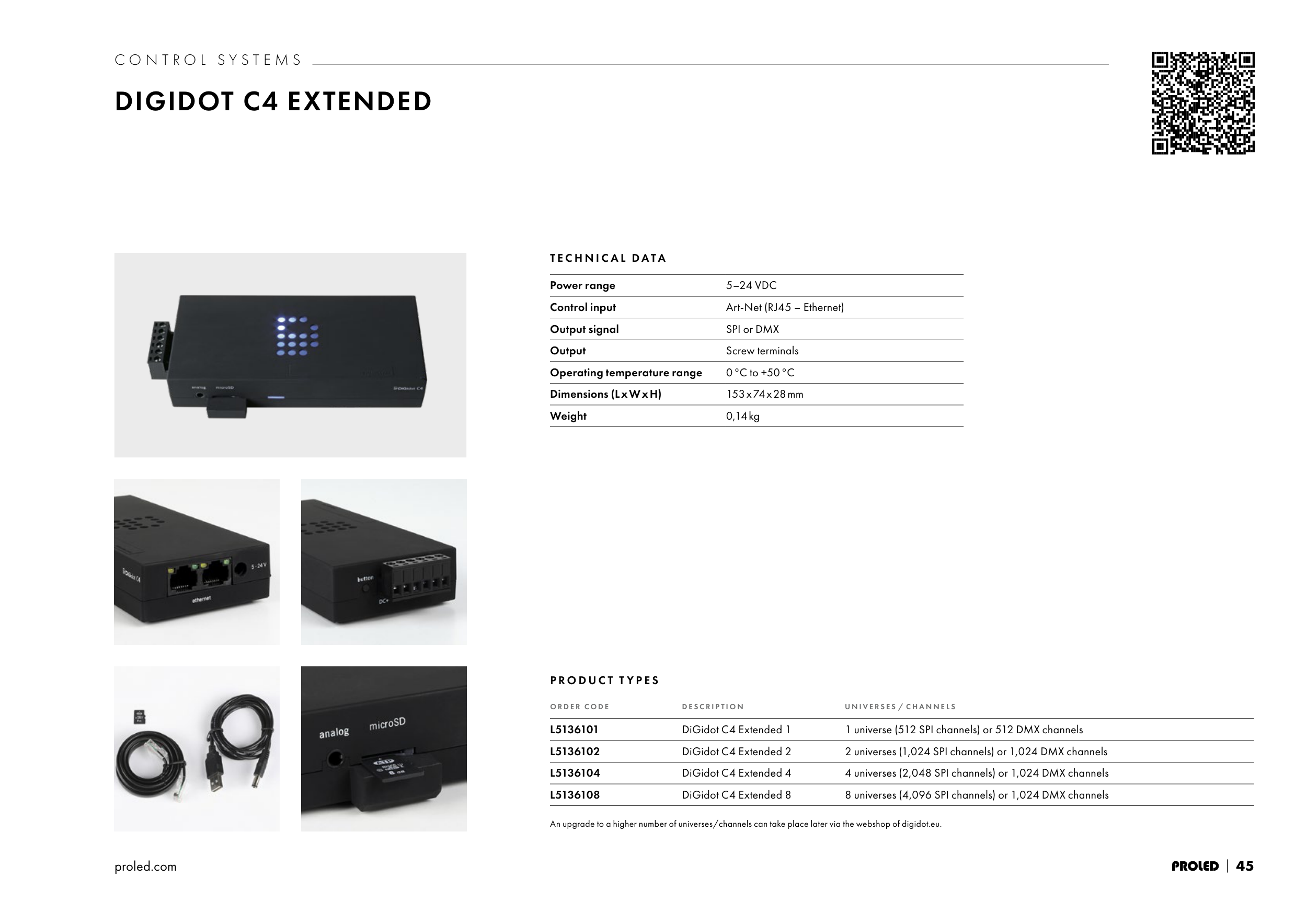

DIGIDOT C4 EXTENDED
T E C H N I C A L D ATA
Power range
5–24 VDC
Control input
Art-Net (RJ45 – Ethernet)
Output signal
SPI or DMX
Output
Screw terminals
Operating temperature range
0 °C to +50 °C
Dimensions (L x W x H)
153 x 74 x 28 mm
Weight
0,14 kg
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
U N I V E R S E S / C H A N N E L S
L5136101
DiGidot C4 Extended 1
1 universe (512 SPI channels) or 512 DMX channels
L5136102
DiGidot C4 Extended 2
2 universes (1,024 SPI channels) or 1,024 DMX channels
L5136104
DiGidot C4 Extended 4
4 universes (2,048 SPI channels) or 1,024 DMX channels
L5136108
DiGidot C4 Extended 8
8 universes (4,096 SPI channels) or 1,024 DMX channels
An upgrade to a higher number of universes / channels can take place later via the webshop of digidot.eu.
