C O N T R O L S Y S T E M S

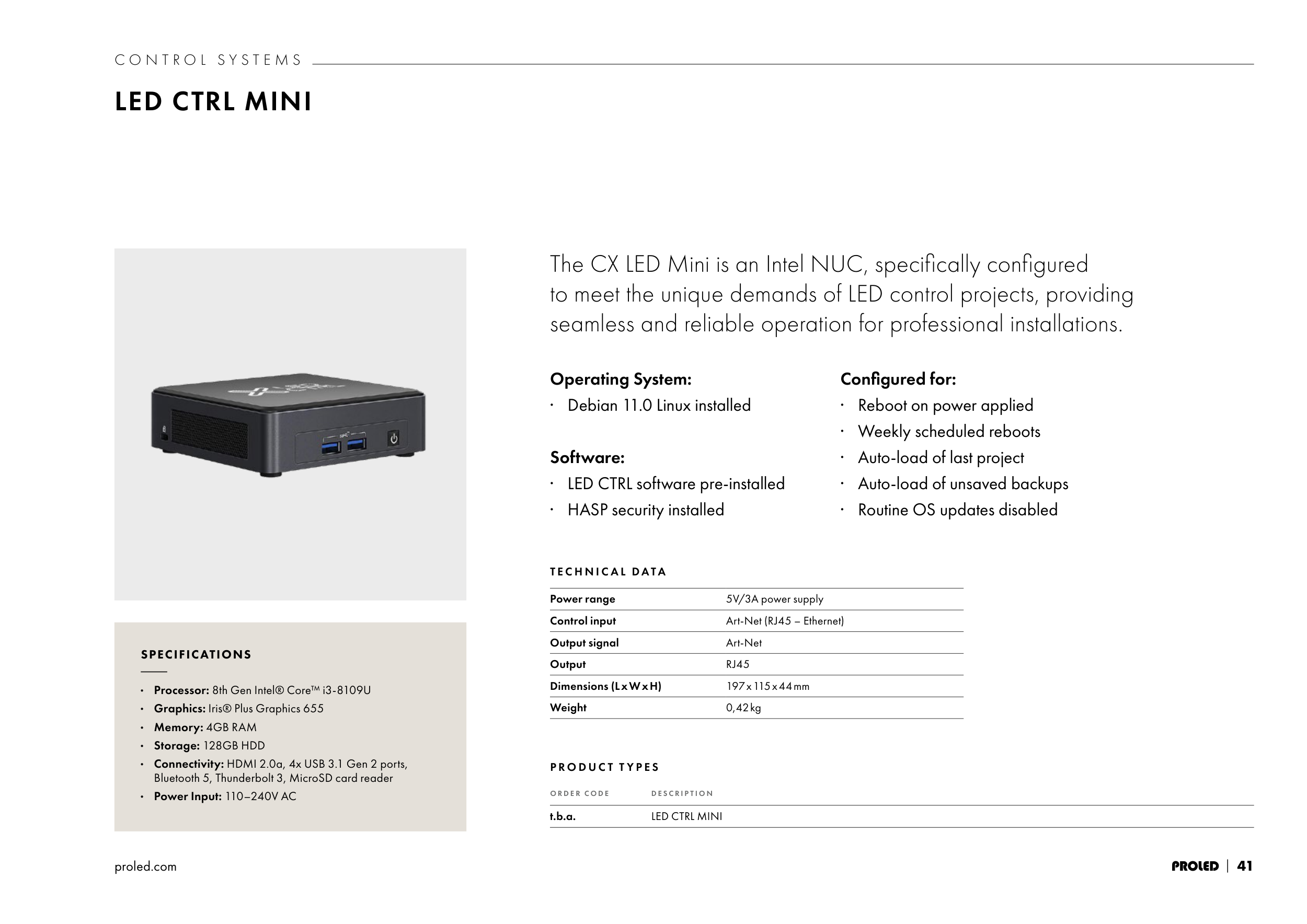

LED CTRL MINI
T E C H N I C A L D ATA
Power range
5V/3A power supply
Control input
Art-Net (RJ45 – Ethernet)
Output signal
Art-Net
Output
RJ45
Dimensions (L x W x H)
197 x 115 x 44 mm
Weight
0,42 kg
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
t.b.a.
LED CTRL MINI
The CX LED Mini is an Intel NUC, specifically configured
to meet the unique demands of LED control projects, providing
seamless and reliable operation for professional installations.
SPECIFICATIONS
· Processor: 8th Gen Intel® Core™ i3-8109U
· Graphics: Iris® Plus Graphics 655
· Memory: 4GB RAM
· Storage: 128GB HDD
· Connectivity: HDMI 2.0a, 4x USB 3.1 Gen 2 ports,
Bluetooth 5, Thunderbolt 3, MicroSD card reader
· Power Input: 110–240V AC
Operating System:
· Debian 11.0 Linux installed
Software:
· LED CTRL software pre-installed
· HASP security installed
Configured for:
· Reboot on power applied
· Weekly scheduled reboots
· Auto-load of last project
· Auto-load of unsaved backups
· Routine OS updates disabled
