C O N T R O L S Y S T E M S

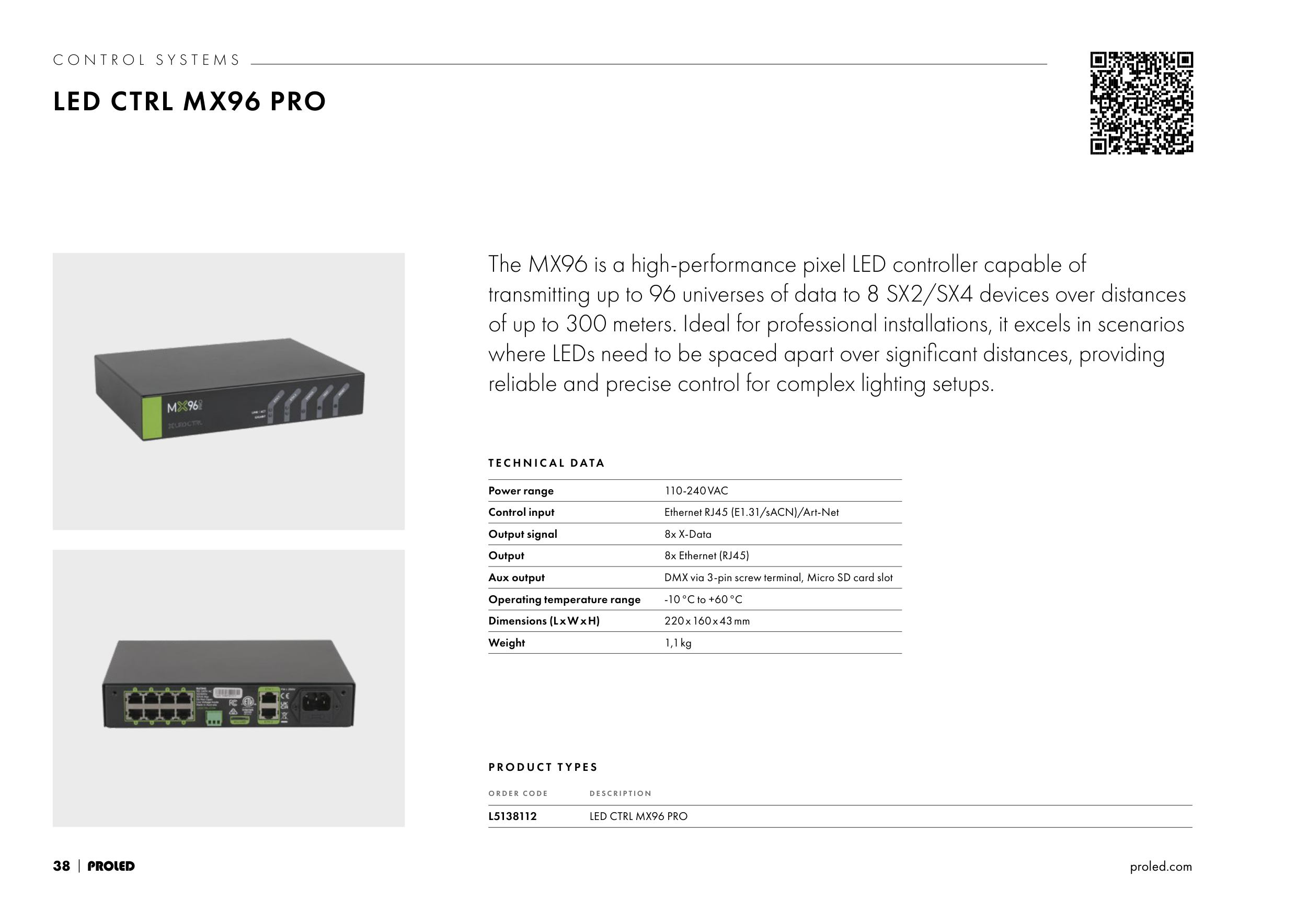

LED CTRL MX96 PRO
T E C H N I C A L D ATA
Power range
110-240 VAC
Control input
Ethernet RJ45 (E1.31/sACN)/Art-Net
Output signal
8x X-Data
Output
8x Ethernet (RJ45)
Aux output
DMX via 3-pin screw terminal, Micro SD card slot
Operating temperature range
-10 °C to +60 °C
Dimensions (L x W x H)
220 x 160 x 43 mm
Weight
1,1 kg
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
L5138112
LED CTRL MX96 PRO
The MX96 is a high-performance pixel LED controller capable of
transmitting up to 96 universes of data to 8 SX2/SX4 devices over distances
of up to 300 meters. Ideal for professional installations, it excels in scenarios
where LEDs need to be spaced apart over significant distances, providing
reliable and precise control for complex lighting setups.
