L I G H T I N G S O L U T I O N S

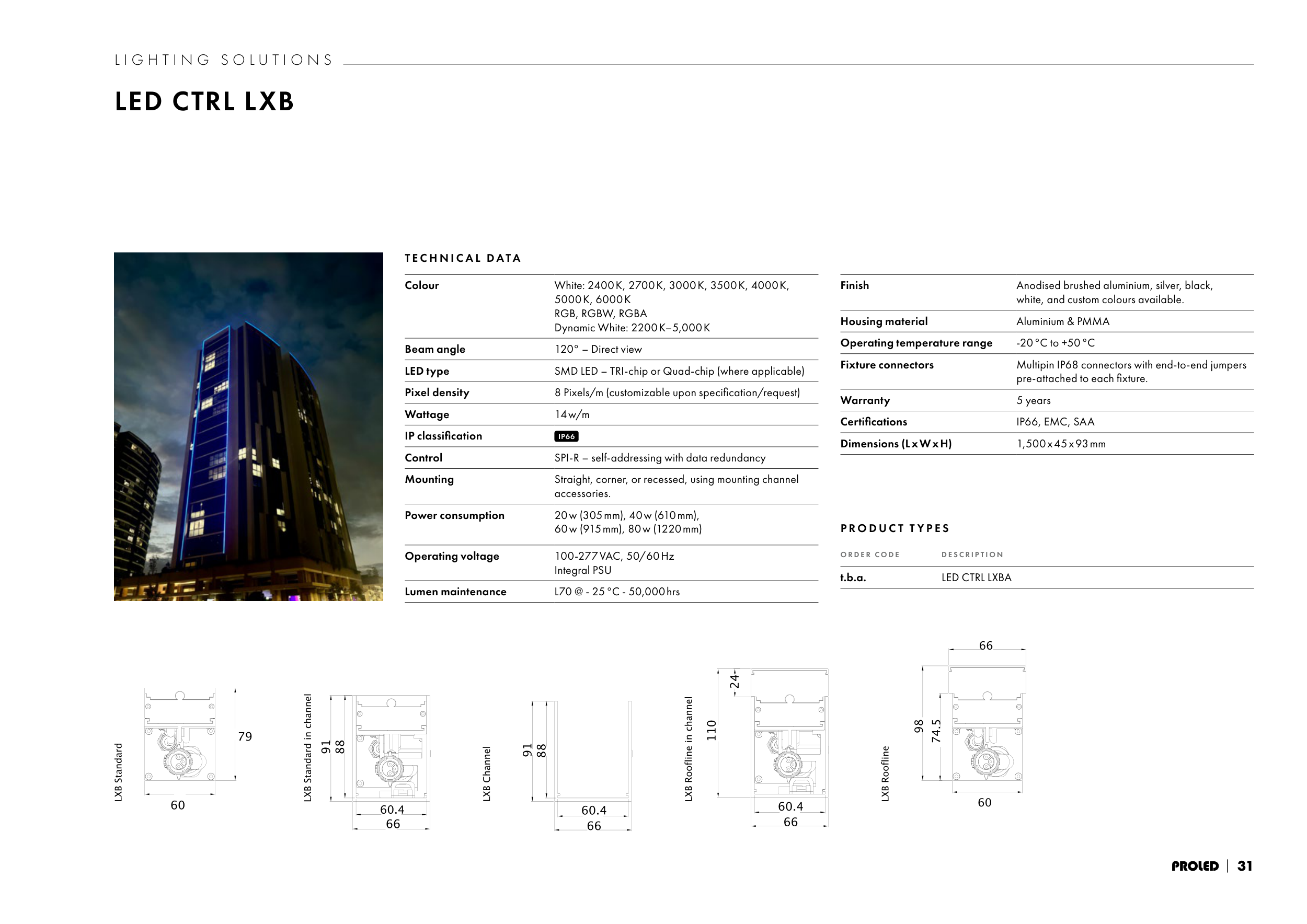

LED CTRL LXB
T E C H N I C A L D ATA
Colour
White: 2400 K, 2700 K, 3000 K, 3500 K, 4000 K,
5000 K, 6000 K
RGB, RGBW, RGBA
Dynamic White: 2200 K–5,000 K
Beam angle
120° – Direct view
LED type
SMD LED – TRI-chip or Quad-chip (where applicable)
Pixel density
8 Pixels/m (customizable upon specification/request)
Wattage
14 w/m
IP classification
IP66
Control
SPI-R – self-addressing with data redundancy
Mounting
Straight, corner, or recessed, using mounting channel
accessories.
Power consumption
20 w (305 mm), 40 w (610 mm),
60 w (915 mm), 80 w (1220 mm)
Operating voltage
100-277 VAC, 50/ 60 Hz
Integral PSU
Lumen maintenance
L70 @ - 25 °C - 50,000 hrs
Finish
Anodised brushed aluminium, silver, black,
white, and custom colours available.
Housing material
Aluminium & PMMA
Operating temperature range
-20 °C to +50 °C
Fixture connectors
Multipin IP68 connectors with end-to-end jumpers
pre-attached to each fixture.
Warranty
5 years
Certifications
IP66, EMC, SAA
Dimensions (L x W x H)
1,500 x 45 x 93 mm
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
t.b.a.
LED CTRL LXBA
