L I G H T I N G S O L U T I O N S

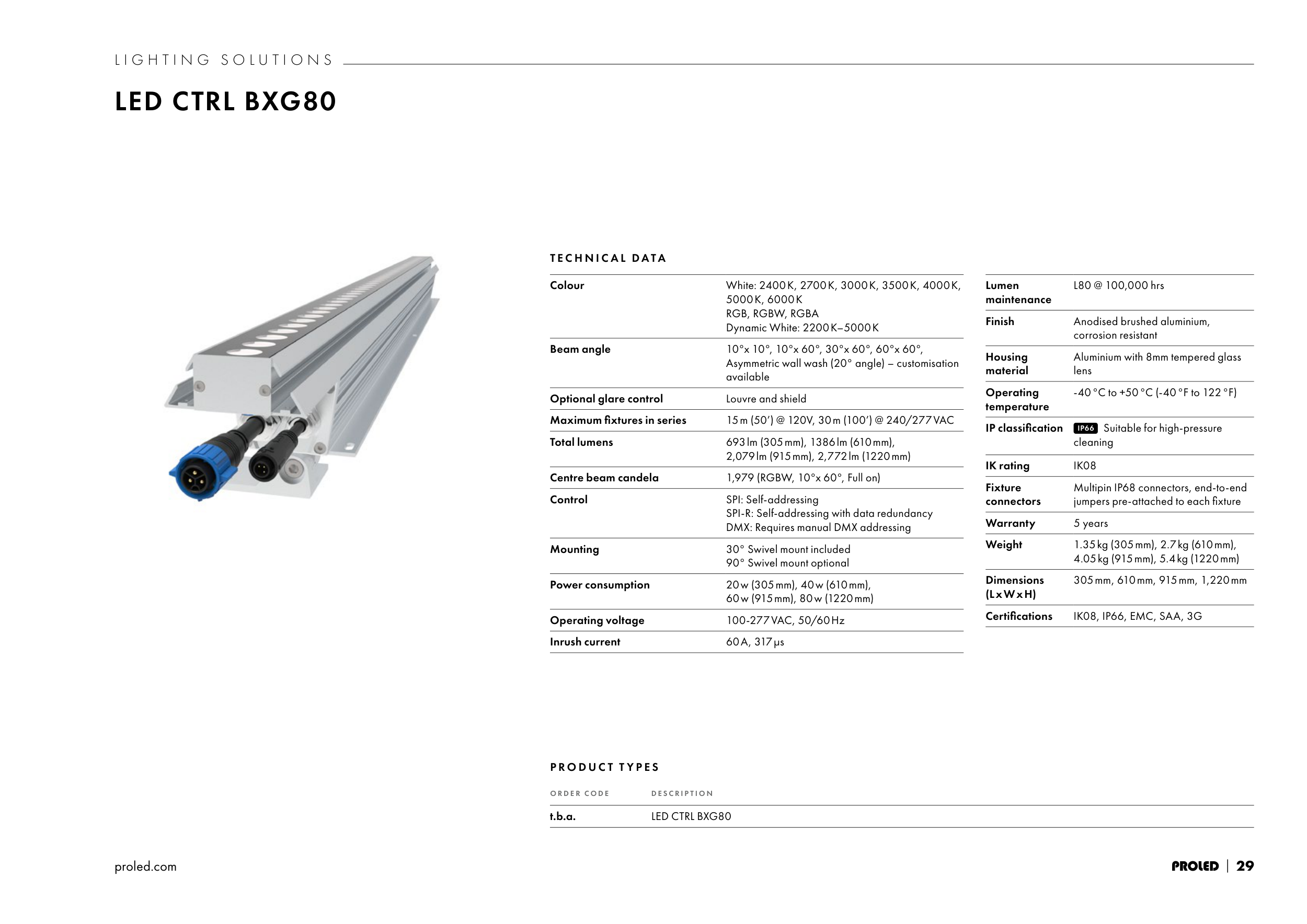

LED CTRL BXG80
T E C H N I C A L D ATA
Colour
White: 2400 K, 2700 K, 3000 K, 3500 K, 4000 K,
5000 K, 6000 K
RGB, RGBW, RGBA
Dynamic White: 2200 K–5000 K
Beam angle
10°x 10°, 10°x 60°, 30°x 60°, 60°x 60°,
Asymmetric wall wash (20° angle) – customisation
available
Optional glare control
Louvre and shield
Maximum fixtures in series
15 m (50’) @ 120V, 30 m (100’) @ 240/277 VAC
Total lumens
693 lm (305 mm), 1386 lm (610 mm),
2,079 lm (915 mm), 2,772 lm (1220 mm)
Centre beam candela
1,979 (RGBW, 10°x 60°, Full on)
Control
SPI: Self-addressing
SPI-R: Self-addressing with data redundancy
DMX: Requires manual DMX addressing
Mounting
30° Swivel mount included
90° Swivel mount optional
Power consumption
20 w (305 mm), 40 w (610 mm),
60 w (915 mm), 80 w (1220 mm)
Operating voltage
100-277 VAC, 50/60 Hz
Inrush current
60 A, 317 μs
Lumen
maintenance
L80 @ 100,000 hrs
Finish
Anodised brushed aluminium,
corrosion resistant
Housing
material
Aluminium with 8mm tempered glass
lens
Operating
temperature
-40 °C to +50 °C (-40 °F to 122 °F)
IP classification
IP66 Suitable for high-pressure
cleaning
IK rating
IK08
Fixture
connectors
Multipin IP68 connectors, end-to-end
jumpers pre-attached to each fixture
Warranty
5 years
Weight
1.35 kg (305 mm), 2.7 kg (610 mm),
4.05 kg (915 mm), 5.4 kg (1220 mm)
Dimensions
(L x W x H)
305 mm , 610 mm, 915 mm, 1,220 mm
Certifications
IK08, IP66, EMC, SAA, 3G
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
t.b.a.
LED CTRL BXG80
BXG GRAZER SERIES
DATA SHEET
The BXG LED range offers a high power
LED grazer with durable construction
designed to withstand harsh environments.
RGB, RGBW and Dynamic White options are
available in various sizes including 305mm,
610mm, 915mm and 1220mm with a full
range of mounting, cabling, optic and anti-
glare accessories, perfect for any project.
Built to last with a 8mm tempered glass lens,
wide range voltage input and a robust IP66
construction all backed by a 5 year warranty.
fiXtuRe
