L I G H T I N G S O L U T I O N S

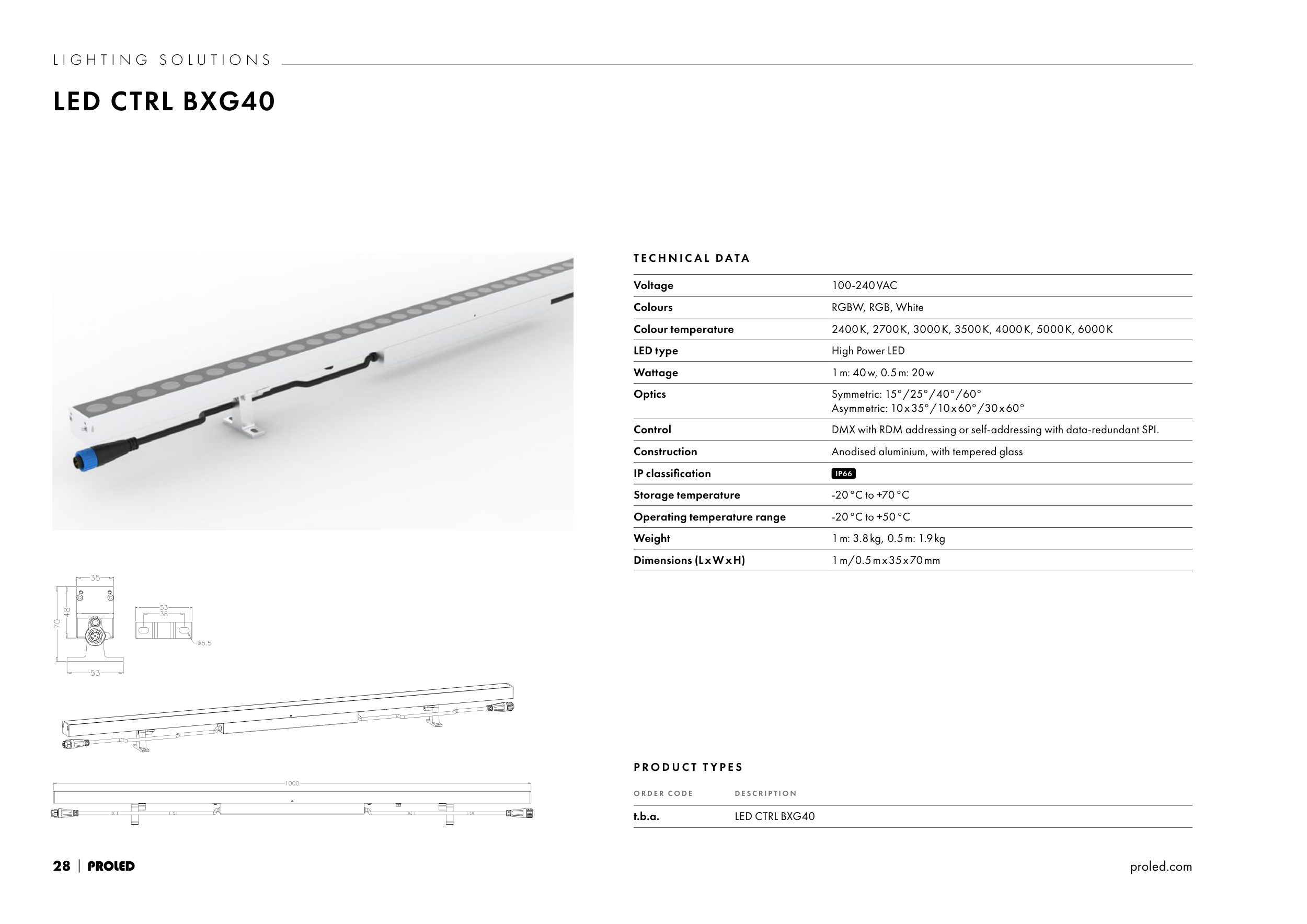

LED CTRL BXG40
T E C H N I C A L D ATA
Voltage
100-240 VAC
Colours
RGBW, RGB, White
Colour temperature
2400 K, 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, 6000 K
LED type
High Power LED
Wattage
1 m: 40 w, 0.5 m: 20 w
Optics
Symmetric: 15° / 25° / 40° / 60°
Asymmetric: 10 x 35° / 10 x 60° / 30 x 60°
Control
DMX with RDM addressing or self-addressing with data-redundant SPI.
Construction
Anodised aluminium, with tempered glass
IP classification
IP66
Storage temperature
-20 °C to +70 °C
Operating temperature range
-20 °C to +50 °C
Weight
1 m: 3.8 kg, 0.5 m: 1.9 kg
Dimensions (L x W x H)
1 m / 0.5 m x 35 x 70 mm
P R O D U C T T Y P E S
O R D E R C O D E
D E S C R I P T I O N
t.b.a.
LED CTRL BXG40
