C O M P O N E N T S

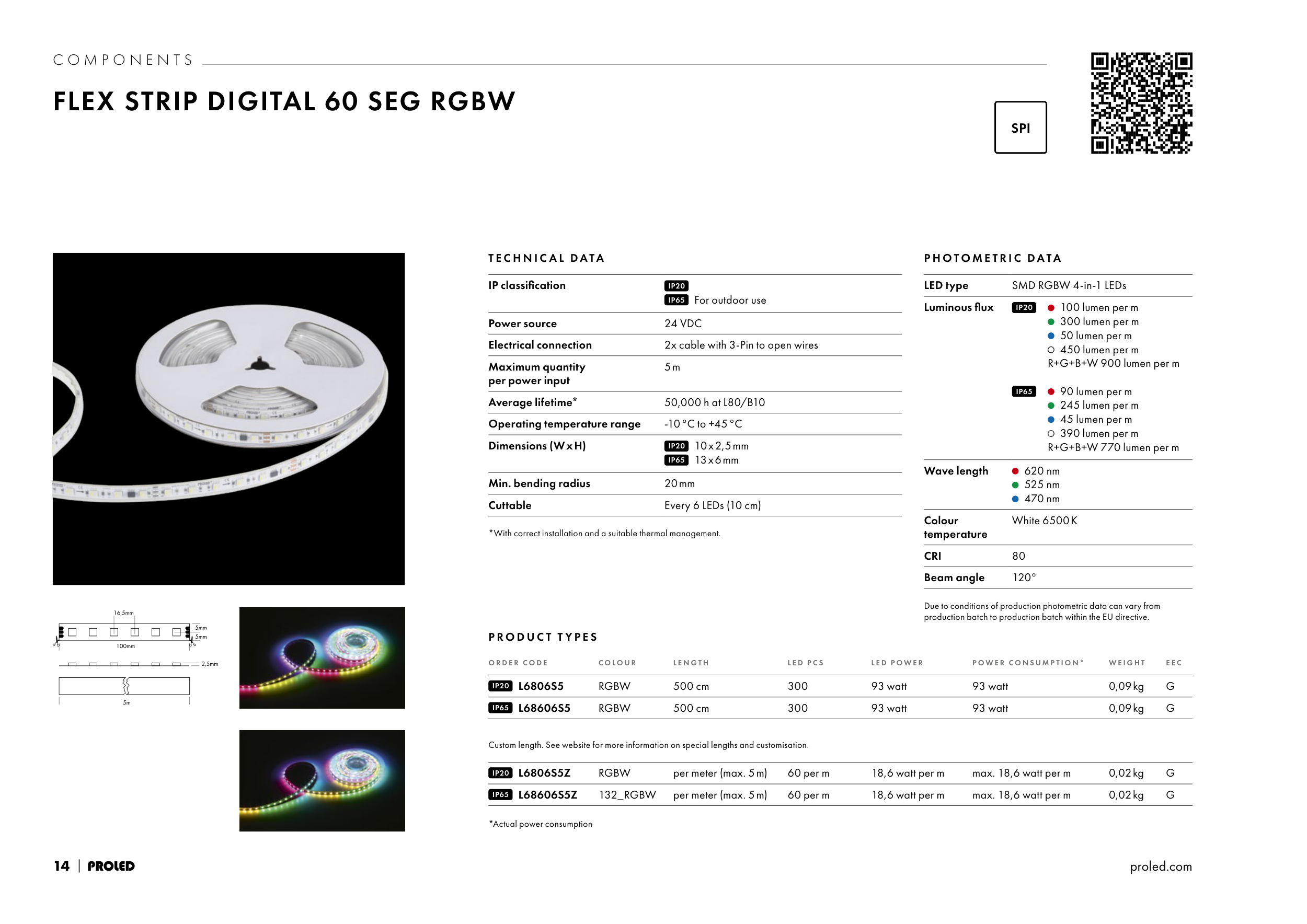

FLEX STRIP DIGITAL 60 SEG RGBW
P R O D U C T T Y P E S
O R D E R C O D E
C O L O U R
L E N G T H
L E D P C S
L E D P O W E R
P O W E R C O N S U M P T I O N *
W E I G H T
E E C
IP20 L6806S5
RGBW
500 cm
300
93 watt
93 watt
0,09 kg
G
IP65 L68606S5
RGBW
500 cm
300
93 watt
93 watt
0,09 kg
G
Custom length. See website for more information on special lengths and customisation.
IP20 L6806S5Z
RGBW
per meter (max. 5 m)
60 per m
18,6 watt per m
max. 18,6 watt per m
0,02 kg
G
IP65 L68606S5Z
132_RGBW
per meter (max. 5 m)
60 per m
18,6 watt per m
max. 18,6 watt per m
0,02 kg
G
*Actual power consumption
P H O T O M E T R I C D ATA
LED type
SMD RGBW 4-in-1 LEDs
Luminous flux
IP20 100 lumen per m
300 lumen per m
50 lumen per m
450 lumen per m
R+G+B+W 900 lumen per m
IP65 90 lumen per m
245 lumen per m
45 lumen per m
390 lumen per m
R+G+B+W 770 lumen per m
Wave length
620 nm
525 nm
470 nm
Colour
temperature
White 6500 K
CRI
80
Beam angle
120°
Due to conditions of production photometric data can vary from
production batch to production batch within the EU directive.
SPI
T E C H N I C A L D ATA
IP classification
IP20
IP65 For outdoor use
Power source
24 VDC
Electrical connection
2x cable with 3-Pin to open wires
Maximum quantity
per power input
5 m
Average lifetime*
50,000 h at L80/B10
Operating temperature range
-10 °C to +45 °C
Dimensions (W x H)
IP20 10 x 2,5 mm
IP65 13 x 6 mm
Min. bending radius
20 mm
Cuttable
Every 6 LEDs (10 cm)
*With correct installation and a suitable thermal management.
