52 | URBAN

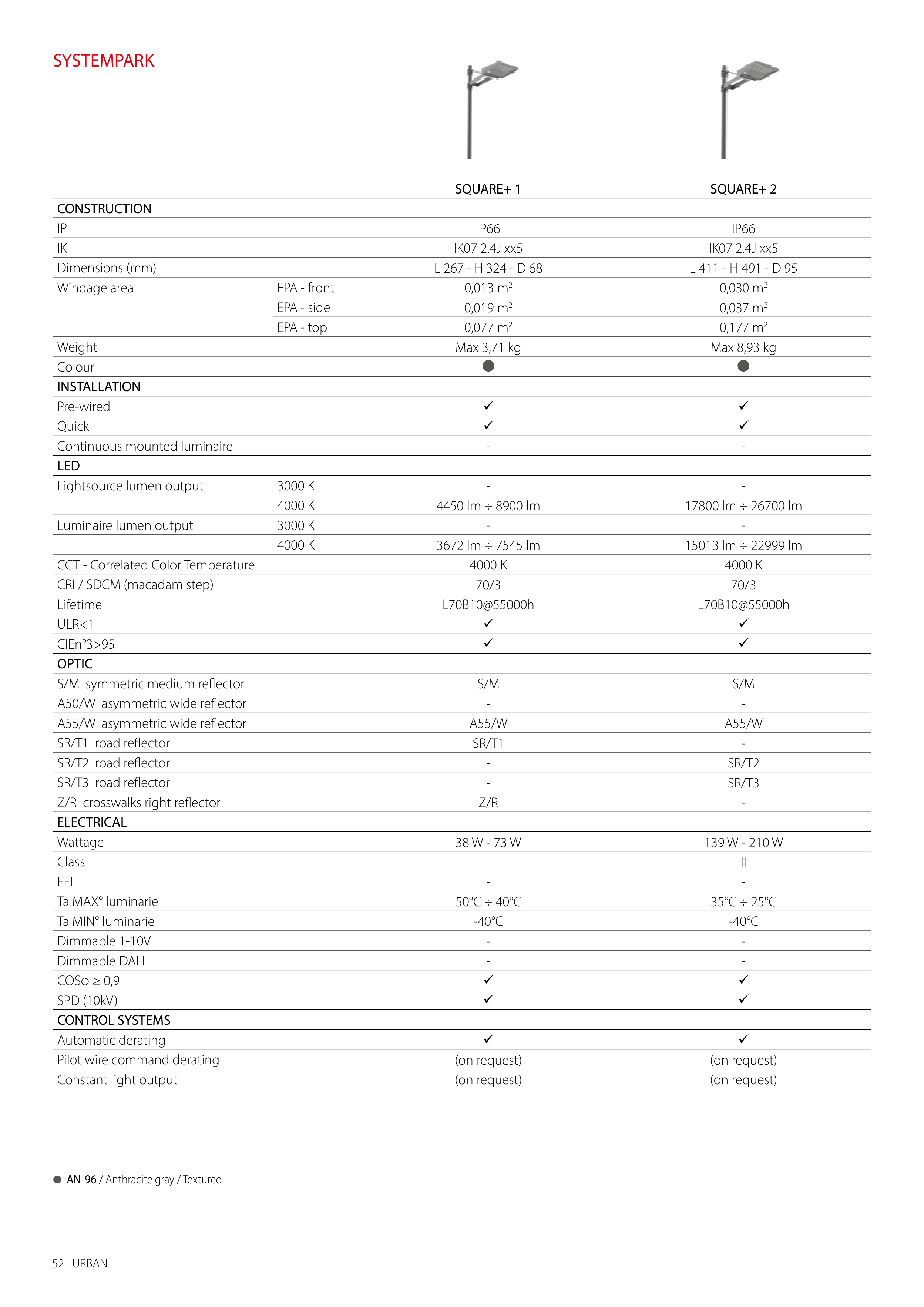

SYSTEMPARK
SQUARE+ 1
SQUARE+ 2
IP66
IP66
IK07 2.4J xx5
IK07 2.4J xx5
L 267 - H 324 - D 68
L 411 - H 491 - D 95
0,013 m2
0,030 m2
0,019 m2
0,037 m2
0,077 m2
0,177 m2
Max 3,71 kg
Max 8,93 kg
n
n
ü
ü
ü
ü
-
-
-
-
4450 lm ÷ 8900 lm
17800 lm ÷ 26700 lm
-
-
3672 lm ÷ 7545 lm
15013 lm ÷ 22999 lm
4000 K
4000 K
70/3
70/3
L70B10@55000h
L70B10@55000h
ü
ü
ü
ü
S/M
S/M
-
-
A55/W
A55/W
SR/T1
-
-
SR/T2
-
SR/T3
Z/R
-
38 W - 73 W
139 W - 210 W
II
II
-
-
50°C ÷ 40°C
35°C ÷ 25°C
-40°C
-40°C
-
-
-
-
ü
ü
ü
ü
ü
ü
(on request)
(on request)
(on request)
(on request)
CONSTRUCTION
IP
IK
Dimensions (mm)
Windage area
EPA - front
EPA - side
EPA - top
Weight
Colour
INSTALLATION
Pre-wired
Quick
Continuous mounted luminaire
LED
Lightsource lumen output
3000 K
4000 K
Luminaire lumen output
3000 K
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
ULR<1
CIEn°3>95
OPTIC
S/M symmetric medium reflector
A50/W asymmetric wide reflector
A55/W asymmetric wide reflector
SR/T1 road reflector
SR/T2 road reflector
SR/T3 road reflector
Z/R crosswalks right reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX° luminarie
Ta MIN° luminarie
Dimmable 1-10V
Dimmable DALI
COSφ ≥ 0,9
SPD (10kV)
CONTROL SYSTEMS
Automatic derating
Pilot wire command derating
Constant light output
n AN-96 / Anthracite gray / Textured
