End caps made of halogen-free technopolymer, housing cable glands
with O-ring gaskets and H07RN-F cables. Secured with galvanized
steel screws and anti-aging rubber sealing gaskets with resilient
elastic return capability, ensuring a robust and tightly sealed product
Sliding DIN rail made of galvanized steel for mounting LED modules
Die-cast body made of secondary aluminum alloy with low copper
content, featuring embedded internal heatsink fins for optimal heat
dissipation of the LED sources
Fast-mounting clips made of polished stainless steel for quick and
easy intervention
LED board featuring a metal core PCB and high-efficacy LEDs for high
luminous flux with low energy consumption
Exclusively designed PMMA lenses with high optical transmittance
for maximum long-term stability and performance, even at elevated
temperatures
Galvanized steel screws securing the LED boards and lenses into the
die-cast body
White cover made of halogen-free technopolymer
White anti-aging silicone sealing gasket with resilient elastic return
capacity and UV resistance providing excellent water ingress
protection (IP66) for the LED module and a clean appearance (IP65
for Sensor versions)
Standard tempered 4 mm transparent glass, offering high impact
resistance (IK08) and suitable for demanding applications such as
sports halls

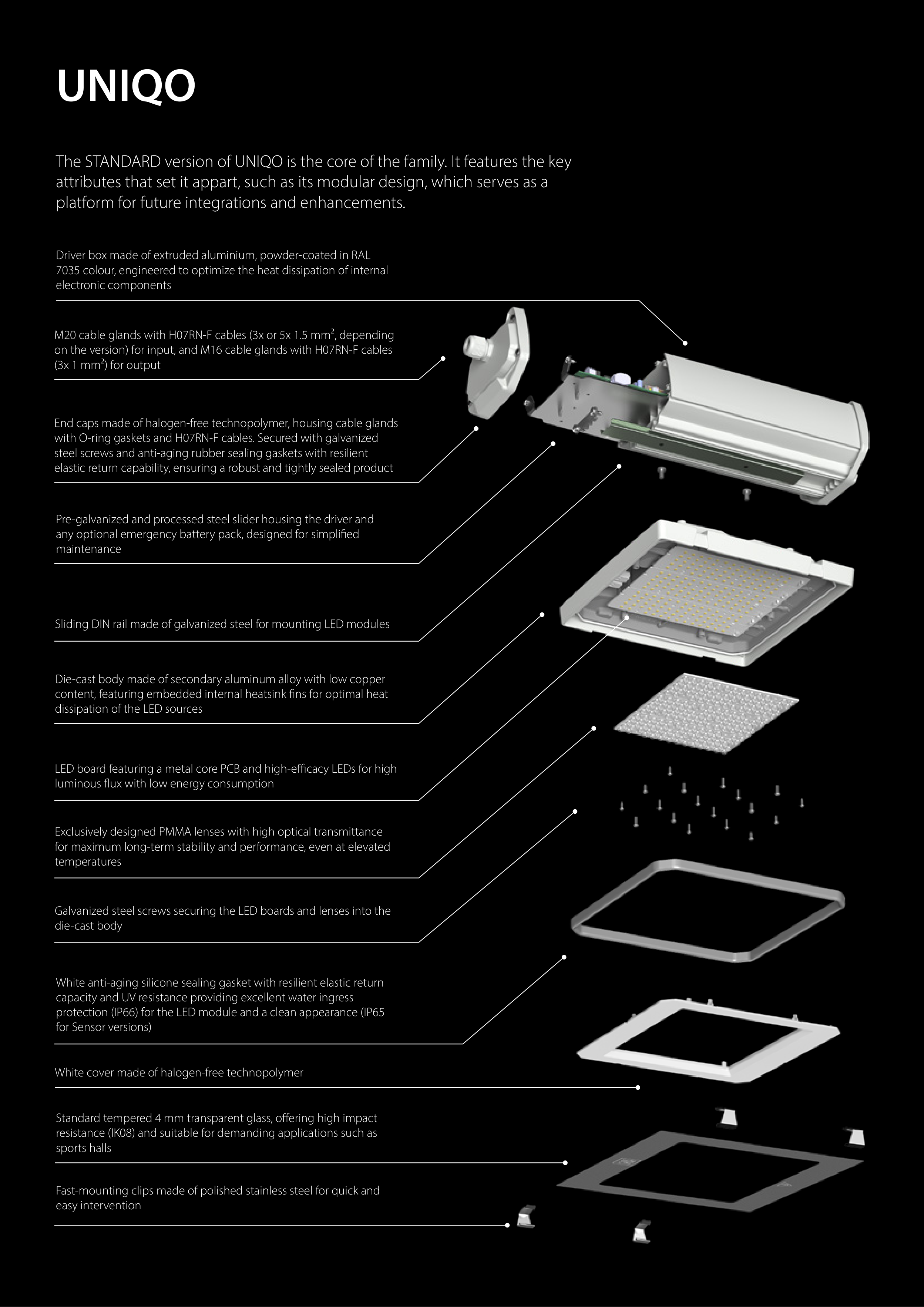

The STANDARD version of UNIQO is the core of the family. It features the key
attributes that set it appart, such as its modular design, which serves as a
platform for future integrations and enhancements.
Driver box made of extruded aluminium, powder-coated in RAL
7035 colour, engineered to optimize the heat dissipation of internal
electronic components
M20 cable glands with H07RN-F cables (3x or 5x 1.5 mm², depending
on the version) for input, and M16 cable glands with H07RN-F cables
(3x 1 mm²) for output
Pre-galvanized and processed steel slider housing the driver and
any optional emergency battery pack, designed for simplified
maintenance
UNIQO
