©Jad Sylla
Smart [PRO] 2.0 offers specific versions and solutions
for professional sport facilities. With the next generation
of high-yield LEDs, Smart [PRO] 2.0 meets TLCI and
HDTV standards for television footage.The power supplies
compatible with DMX-RDM protocol provide the maximum
flexibility in designing complex scenographic systems.

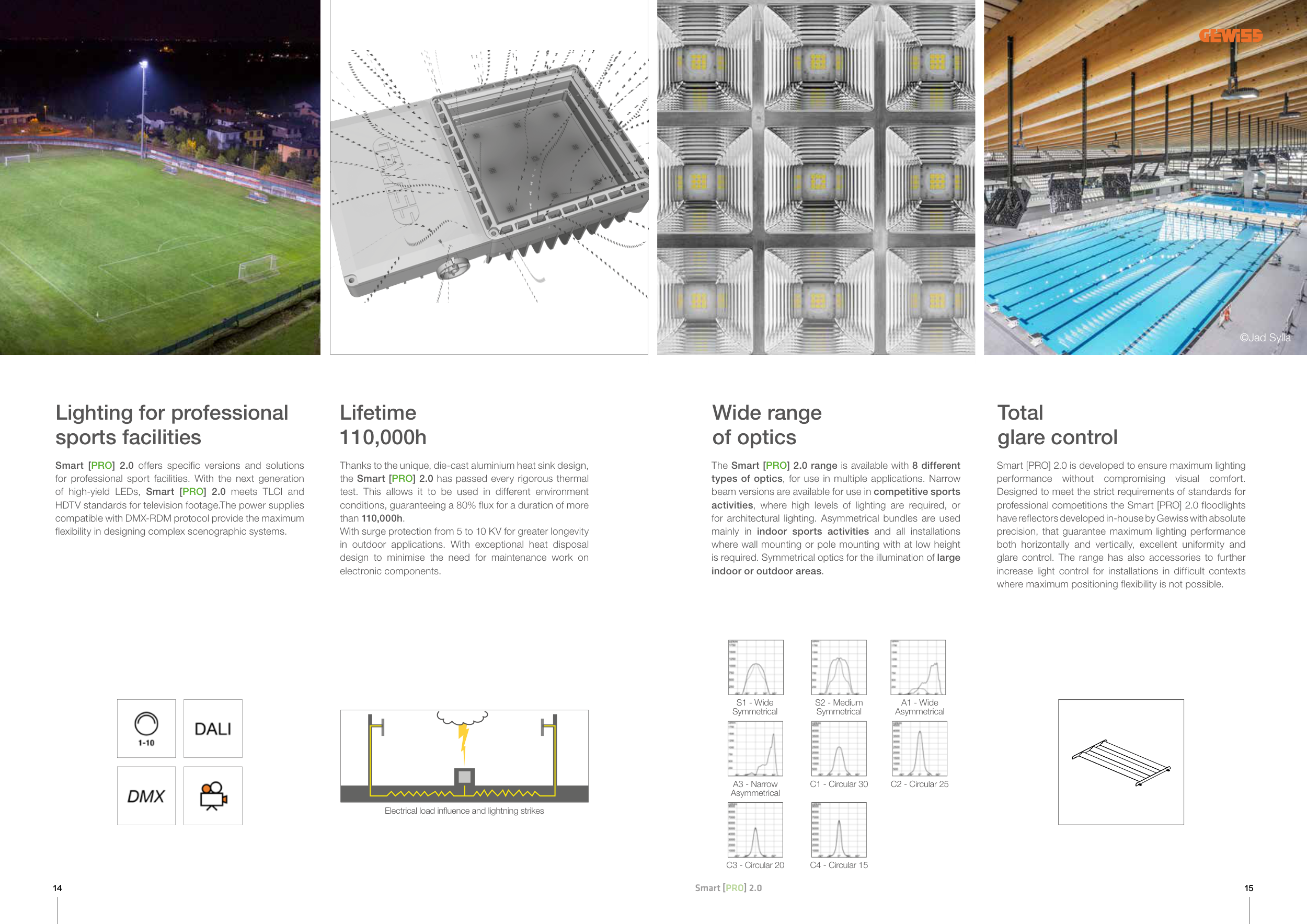

Lighting for professional
sports facilities
Thanks to the unique, die-cast aluminium heat sink design,
the Smart [PRO] 2.0 has passed every rigorous thermal
test. This allows it to be used in different environment
conditions, guaranteeing a 80% flux for a duration of more
than 110,000h.
With surge protection from 5 to 10 KV for greater longevity
in outdoor applications. With exceptional heat disposal
design to minimise the need for maintenance work on
electronic components.
Lifetime
110,000h
Electrical load influence and lightning strikes
The Smart [PRO] 2.0 range is available with 8 different
types of optics, for use in multiple applications. Narrow
beam versions are available for use in competitive sports
activities, where high levels of lighting are required, or
for architectural lighting. Asymmetrical bundles are used
mainly in indoor sports activities and all installations
where wall mounting or pole mounting with at low height
is required. Symmetrical optics for the illumination of large
indoor or outdoor areas.
Wide range
of optics
A3 - Narrow
Asymmetrical
S2 - Medium
Symmetrical
A1 - Wide
Asymmetrical
C1 - Circular 30
C3 - Circular 20
C4 - Circular 15
S1 - Wide
Symmetrical
C2 - Circular 25
Smart [PRO] 2.0 is developed to ensure maximum lighting
performance without compromising visual comfort.
Designed to meet the strict requirements of standards for
professional competitions the Smart [PRO] 2.0 floodlights
have reflectors developed in-house by Gewiss with absolute
precision, that guarantee maximum lighting performance
both horizontally and vertically, excellent uniformity and
glare control. The range has also accessories to further
increase light control for installations in difficult contexts
where maximum positioning flexibility is not possible.
Total
glare control
15
14
Smart [PRO] 2.0
