ACCESSORIES
Code
Description
Voltage
Notes
GWP2901
1-10V POWER SUPPLY UNIT
220 / 240 V - 50 / 60 Hz
To Order
GWP2910
DALI POWER SUPPLY UNIT
220 / 400 V - 50 / 60 Hz
To Order
GWP2911
DMX POWER SUPPLY UNIT
220 / 400 V - 50 / 60 Hz
To Order
GWP2903
SMART PRO 2.0 GLASS REPLACEMENT KIT
Optional
GWP2904
SMART PRO POINTER SUPPORT
Optional
GWP2905
SMART PRO 2 LOUVRE KIT
Optional
GWP2907
SMART PRO 2 VISOR
Optional
GWP20013
3 WAYS CONNECTION KIT
Optional
GWP20014
4 WAYS CONNECTION KIT
Optional
Smart [PRO]
2.0
| 2+2M

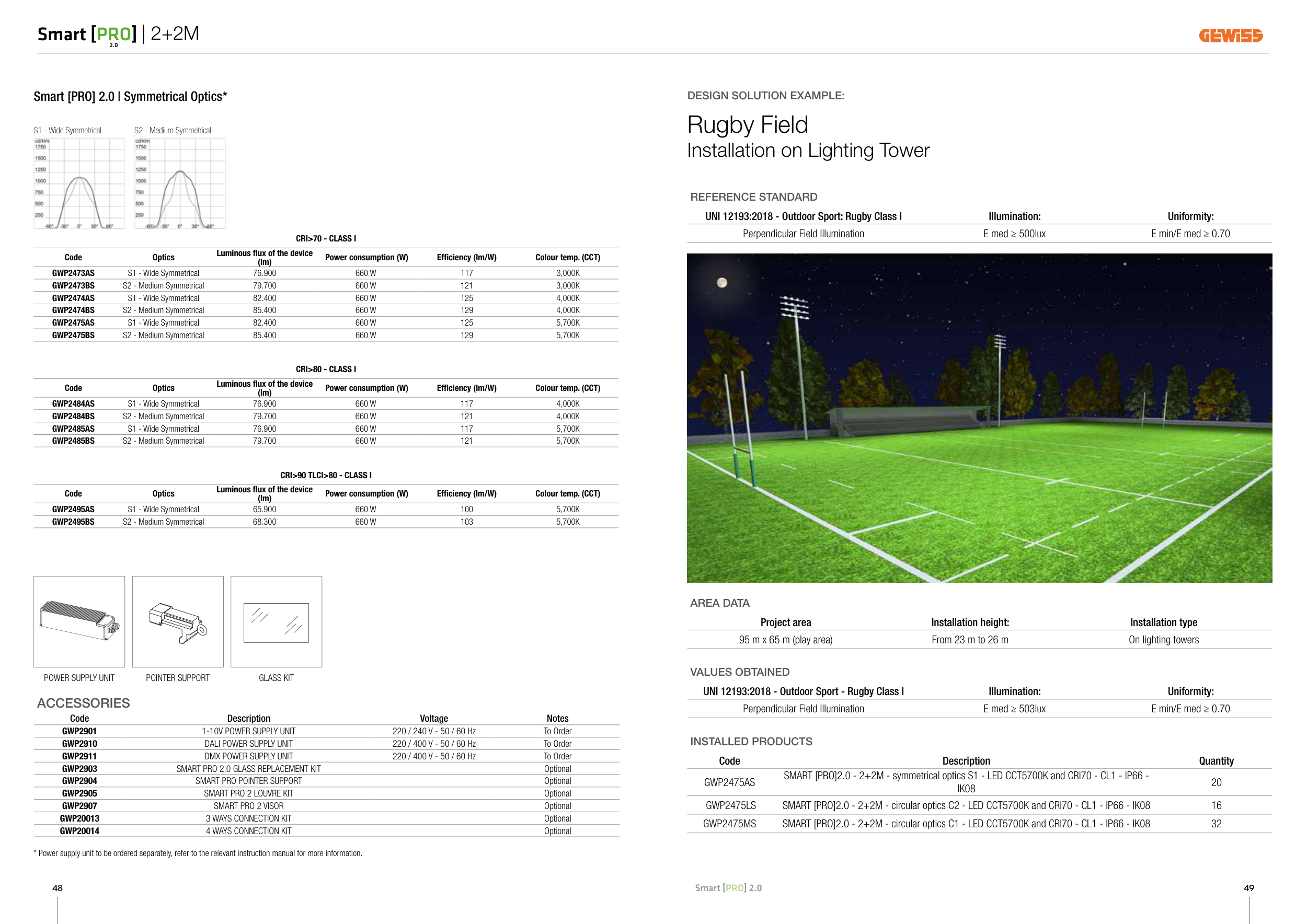

Smart [PRO] 2.0 | Symmetrical Optics*
S1 - Wide Symmetrical
S2 - Medium Symmetrical
CRI>70 - CLASS I
Code
Optics
Luminous flux of the device
(lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
GWP2473AS
S1 - Wide Symmetrical
76.900
660 W
117
3,000K
GWP2473BS
S2 - Medium Symmetrical
79.700
660 W
121
3,000K
GWP2474AS
S1 - Wide Symmetrical
82.400
660 W
125
4,000K
GWP2474BS
S2 - Medium Symmetrical
85.400
660 W
129
4,000K
GWP2475AS
S1 - Wide Symmetrical
82.400
660 W
125
5,700K
GWP2475BS
S2 - Medium Symmetrical
85.400
660 W
129
5,700K
CRI>80 - CLASS I
Code
Optics
Luminous flux of the device
(lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
GWP2484AS
S1 - Wide Symmetrical
76.900
660 W
117
4,000K
GWP2484BS
S2 - Medium Symmetrical
79.700
660 W
121
4,000K
GWP2485AS
S1 - Wide Symmetrical
76.900
660 W
117
5,700K
GWP2485BS
S2 - Medium Symmetrical
79.700
660 W
121
5,700K
CRI>90 TLCI>80 - CLASS I
Code
Optics
Luminous flux of the device
(lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
GWP2495AS
S1 - Wide Symmetrical
65.900
660 W
100
5,700K
GWP2495BS
S2 - Medium Symmetrical
68.300
660 W
103
5,700K
* Power supply unit to be ordered separately, refer to the relevant instruction manual for more information.
INSTALLED PRODUCTS
Code
Description
Quantity
GWP2475AS
SMART [PRO]2.0 - 2+2M - symmetrical optics S1 - LED CCT5700K and CRI70 - CL1 - IP66 -
IK08
20
GWP2475LS
SMART [PRO]2.0 - 2+2M - circular optics C2 - LED CCT5700K and CRI70 - CL1 - IP66 - IK08
16
GWP2475MS
SMART [PRO]2.0 - 2+2M - circular optics C1 - LED CCT5700K and CRI70 - CL1 - IP66 - IK08
32
DESIGN SOLUTION EXAMPLE:
Rugby Field
Installation on Lighting Tower
REFERENCE STANDARD
UNI 12193:2018 - Outdoor Sport: Rugby Class I
Illumination:
Uniformity:
Perpendicular Field Illumination
E med ≥ 500lux
E min/E med ≥ 0.70
VALUES OBTAINED
UNI 12193:2018 - Outdoor Sport - Rugby Class I
Illumination:
Uniformity:
Perpendicular Field Illumination
E med ≥ 503lux
E min/E med ≥ 0.70
POWER SUPPLY UNIT
POINTER SUPPORT
GLASS KIT
AREA DATA
Project area
Installation height:
Installation type
95 m x 65 m (play area)
From 23 m to 26 m
On lighting towers
49
48
Smart [PRO] 2.0
