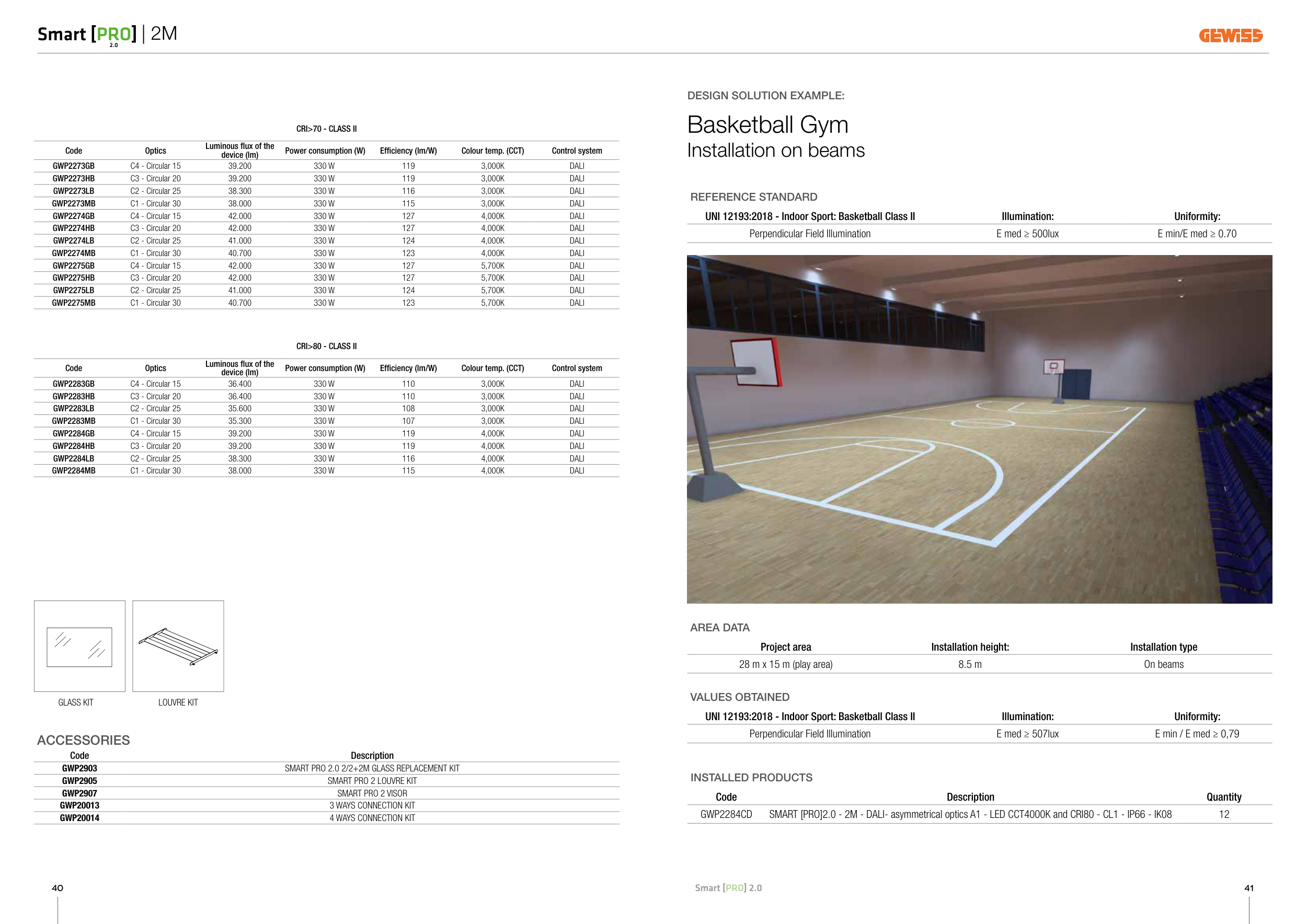

Smart [PRO]
2.0
| 2M
ACCESSORIES
Code
Description
GWP2903
SMART PRO 2.0 2/2+2M GLASS REPLACEMENT KIT
GWP2905
SMART PRO 2 LOUVRE KIT
GWP2907
SMART PRO 2 VISOR
GWP20013
3 WAYS CONNECTION KIT
GWP20014
4 WAYS CONNECTION KIT
CRI>70 - CLASS II
Code
Optics
Luminous flux of the
device (lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
Control system
GWP2273GB
C4 - Circular 15
39.200
330 W
119
3,000K
DALI
GWP2273HB
C3 - Circular 20
39.200
330 W
119
3,000K
DALI
GWP2273LB
C2 - Circular 25
38.300
330 W
116
3,000K
DALI
GWP2273MB
C1 - Circular 30
38.000
330 W
115
3,000K
DALI
GWP2274GB
C4 - Circular 15
42.000
330 W
127
4,000K
DALI
GWP2274HB
C3 - Circular 20
42.000
330 W
127
4,000K
DALI
GWP2274LB
C2 - Circular 25
41.000
330 W
124
4,000K
DALI
GWP2274MB
C1 - Circular 30
40.700
330 W
123
4,000K
DALI
GWP2275GB
C4 - Circular 15
42.000
330 W
127
5,700K
DALI
GWP2275HB
C3 - Circular 20
42.000
330 W
127
5,700K
DALI
GWP2275LB
C2 - Circular 25
41.000
330 W
124
5,700K
DALI
GWP2275MB
C1 - Circular 30
40.700
330 W
123
5,700K
DALI
CRI>80 - CLASS II
Code
Optics
Luminous flux of the
device (lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
Control system
GWP2283GB
C4 - Circular 15
36.400
330 W
110
3,000K
DALI
GWP2283HB
C3 - Circular 20
36.400
330 W
110
3,000K
DALI
GWP2283LB
C2 - Circular 25
35.600
330 W
108
3,000K
DALI
GWP2283MB
C1 - Circular 30
35.300
330 W
107
3,000K
DALI
GWP2284GB
C4 - Circular 15
39.200
330 W
119
4,000K
DALI
GWP2284HB
C3 - Circular 20
39.200
330 W
119
4,000K
DALI
GWP2284LB
C2 - Circular 25
38.300
330 W
116
4,000K
DALI
GWP2284MB
C1 - Circular 30
38.000
330 W
115
4,000K
DALI
INSTALLED PRODUCTS
Code
Description
Quantity
GWP2284CD
SMART [PRO]2.0 - 2M - DALI- asymmetrical optics A1 - LED CCT4000K and CRI80 - CL1 - IP66 - IK08
12
DESIGN SOLUTION EXAMPLE:
Basketball Gym
Installation on beams
REFERENCE STANDARD
UNI 12193:2018 - Indoor Sport: Basketball Class II
Illumination:
Uniformity:
Perpendicular Field Illumination
E med ≥ 500lux
E min/E med ≥ 0.70
VALUES OBTAINED
UNI 12193:2018 - Indoor Sport: Basketball Class II
Illumination:
Uniformity:
Perpendicular Field Illumination
E med ≥ 507lux
E min / E med ≥ 0,79
GLASS KIT
LOUVRE KIT
AREA DATA
Project area
Installation height:
Installation type
28 m x 15 m (play area)
8.5 m
On beams
41
40
Smart [PRO] 2.0
