ACCESSORIES
Code
Description
GWP2902
SMART PRO 2.0 1M GLASS REPLACEMENT KIT
GWP20013
3 WAY CONNECTION KIT
GWP20014
4 WAY CONNECTION KIT
CRI>70 - CLASS II
Code
Optics
Luminous flux of the
device (lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
Control system
GWP2173GB
C4 - Circular 15
19.600
165 W
119
3,000K
DALI
GWP2173HB
C3 - Circular 20
19.600
165 W
119
3,000K
DALI
GWP2173LB
C2 - Circular 25
19.200
165 W
116
3,000K
DALI
GWP2173MB
C1 - Circular 30
19.000
165 W
115
3,000K
DALI
GWP2174GB
C4 - Circular 15
21.000
165 W
127
4,000K
DALI
GWP2174HB
C3 - Circular 20
21.000
165 W
127
4,000K
DALI
GWP2174LB
C2 - Circular 25
20.500
165 W
124
4,000K
DALI
GWP2174MB
C1 - Circular 30
20.400
165 W
124
4,000K
DALI
GWP2175GB
C4 - Circular 15
21.000
165 W
127
5,700K
DALI
GWP2175HB
C3 - Circular 20
21.000
165 W
127
5,700K
DALI
GWP2175LB
C2 - Circular 25
20.500
165 W
124
5,700K
DALI
GWP2175MB
C1 - Circular 30
20.400
165 W
124
5,700K
DALI
CRI>80 - CLASS II
Code
Optics
Luminous flux of the
device (lm)
Power consumption (W)
Efficiency (lm/W)
Colour temp. (CCT)
Control system
GWP2183GB
C4 - Circular 15
18.200
165 W
110
3,000K
DALI
GWP2183HB
C3 - Circular 20
18.200
165 W
110
3,000K
DALI
GWP2183LB
C2 - Circular 25
17.800
165 W
108
3,000K
DALI
GWP2183MB
C1 - Circular 30
17.600
165 W
107
3,000K
DALI
GWP2184GB
C4 - Circular 15
19.600
165 W
119
4,000K
DALI
GWP2184HB
C3 - Circular 20
19.600
165 W
119
4,000K
DALI
GWP2184LB
C2 - Circular 25
19.200
165 W
116
4,000K
DALI
GWP2184MB
C1 - Circular 30
19.000
165 W
115
4,000K
DALI

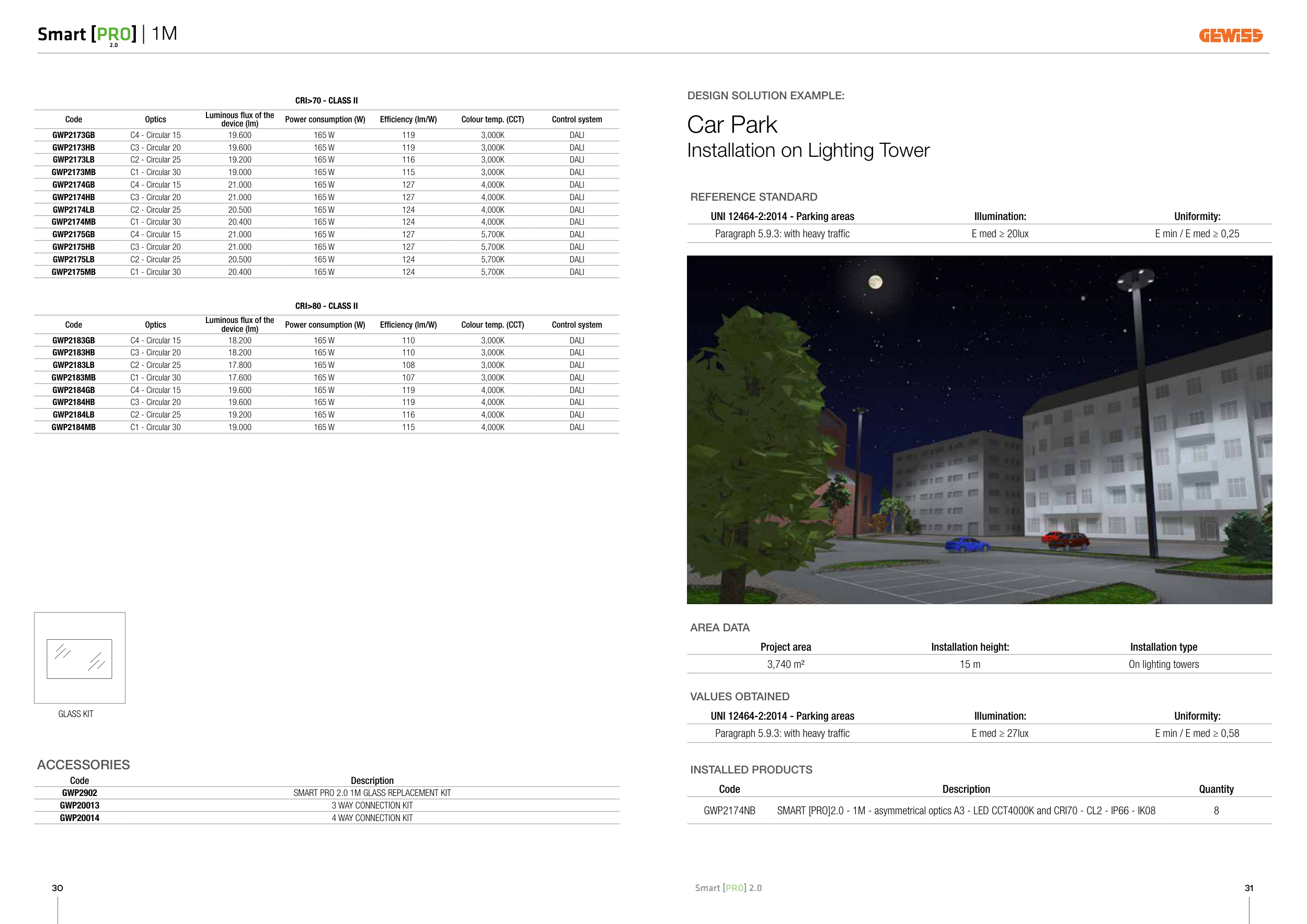

Smart [PRO]
2.0
| 1M
INSTALLED PRODUCTS
Code
Description
Quantity
GWP2174NB
SMART [PRO]2.0 - 1M - asymmetrical optics A3 - LED CCT4000K and CRI70 - CL2 - IP66 - IK08
8
DESIGN SOLUTION EXAMPLE:
Car Park
Installation on Lighting Tower
REFERENCE STANDARD
UNI 12464-2:2014 - Parking areas
Illumination:
Uniformity:
Paragraph 5.9.3: with heavy traffic
E med ≥ 20lux
E min / E med ≥ 0,25
VALUES OBTAINED
UNI 12464-2:2014 - Parking areas
Illumination:
Uniformity:
Paragraph 5.9.3: with heavy traffic
E med ≥ 27lux
E min / E med ≥ 0,58
GLASS KIT
AREA DATA
Project area
Installation height:
Installation type
3,740 m²
15 m
On lighting towers
31
30
Smart [PRO] 2.0
