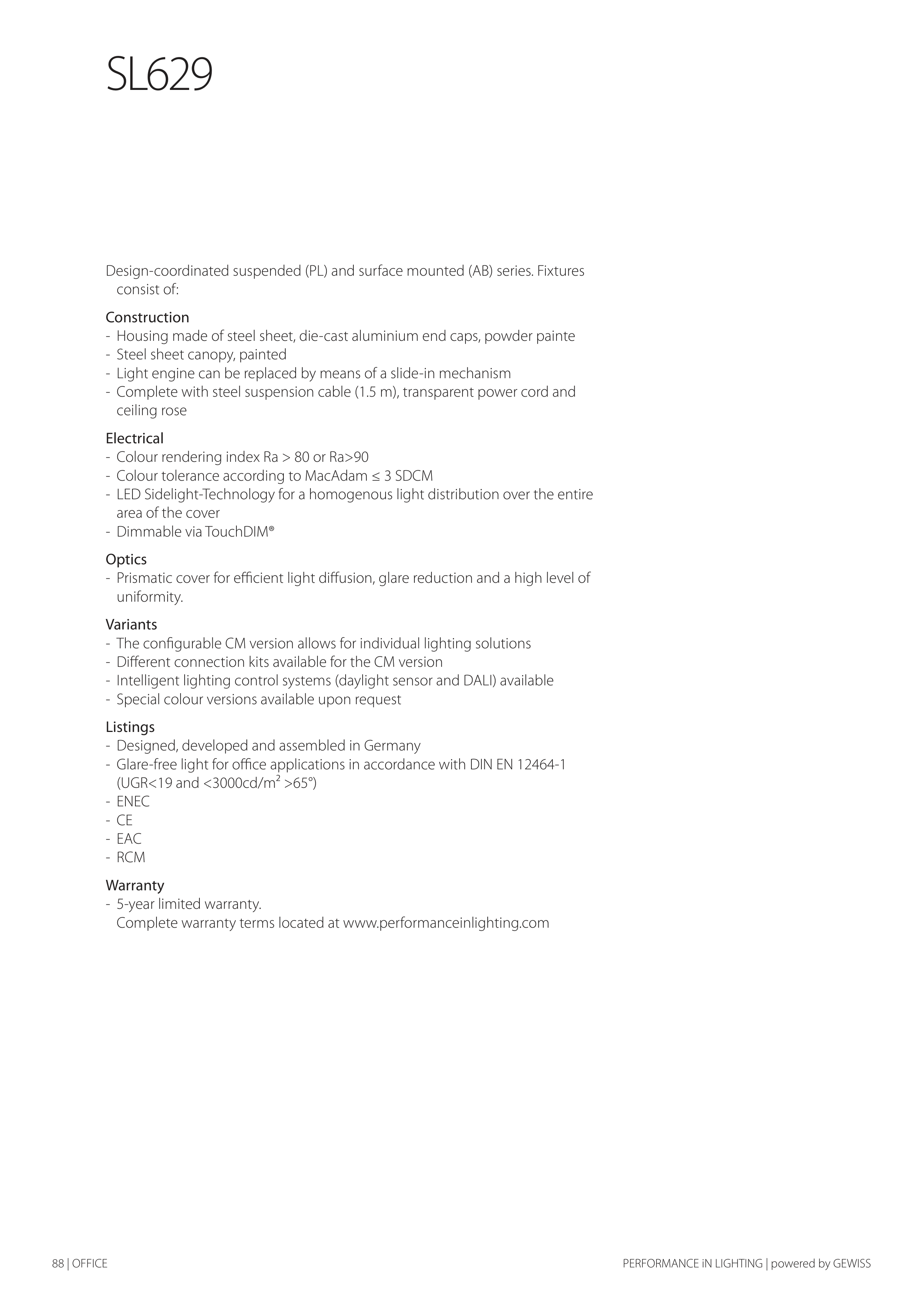

SL629
Design-coordinated suspended (PL) and surface mounted (AB) series. Fixtures
consist of:
Construction
- Housing made of steel sheet, die-cast aluminium end caps, powder painte
- Steel sheet canopy, painted
- Light engine can be replaced by means of a slide-in mechanism
- Complete with steel suspension cable (1.5 m), transparent power cord and
ceiling rose
Electrical
- Colour rendering index Ra > 80 or Ra>90
- Colour tolerance according to MacAdam ≤ 3 SDCM
- LED Sidelight-Technology for a homogenous light distribution over the entire
area of the cover
- Dimmable via TouchDIM®
Optics
- Prismatic cover for efficient light diffusion, glare reduction and a high level of
uniformity.
Variants
- The configurable CM version allows for individual lighting solutions
- Different connection kits available for the CM version
- Intelligent lighting control systems (daylight sensor and DALI) available
- Special colour versions available upon request
Listings
- Designed, developed and assembled in Germany
- Glare-free light for office applications in accordance with DIN EN 12464-1
(UGR<19 and <3000cd/m² >65°)
- ENEC
- CE
- EAC
- RCM
Warranty
- 5-year limited warranty.
Complete warranty terms located at www.performanceinlighting.com
