72 | OFFICE
PERFORMANCE iN LIGHTING | powered by GEWISS

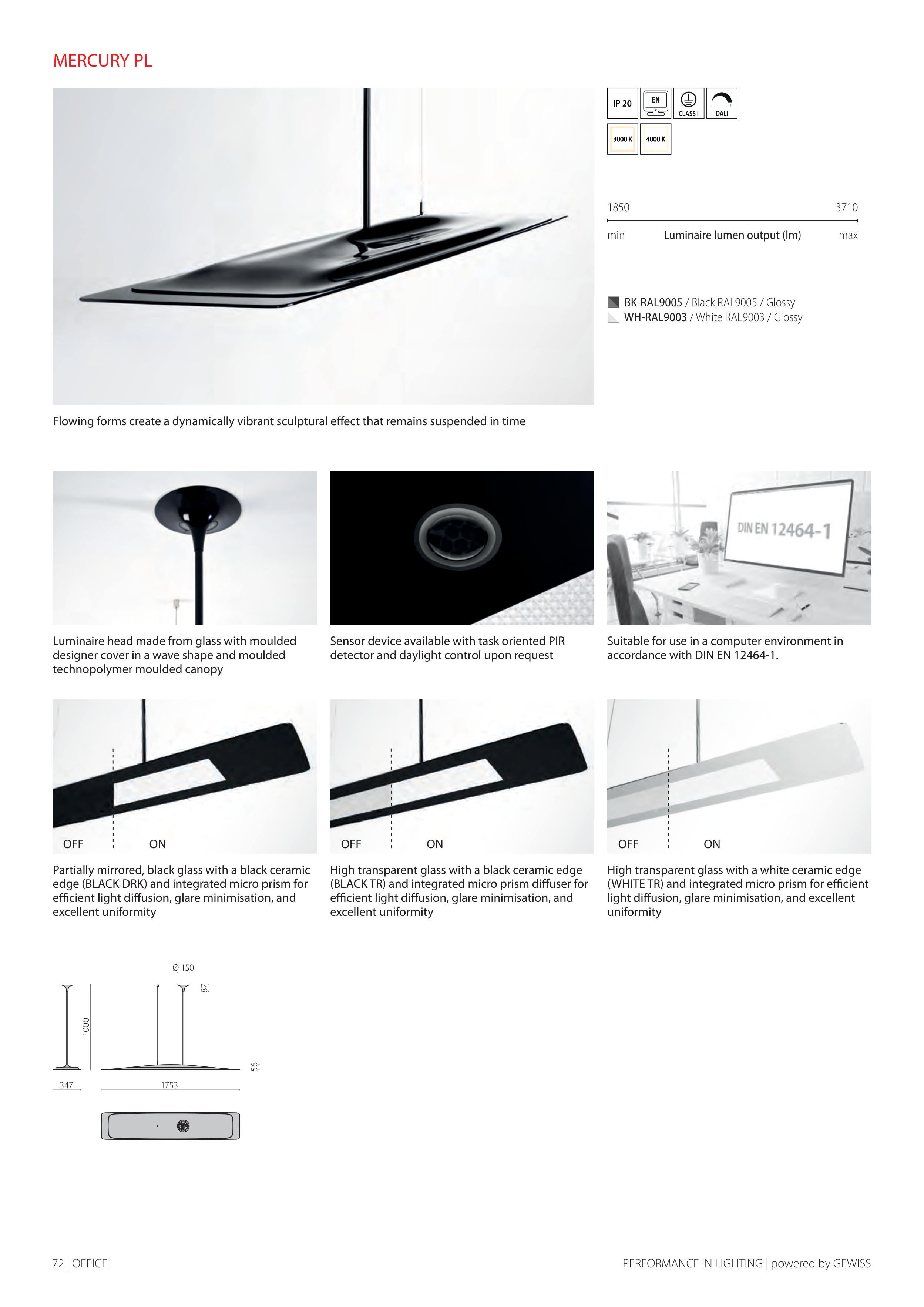

MERCURY PL
1753
347
Ø 150
87
56
1000
OFF
OFF
OFF
ON
ON
ON
1850
3710
max
min
Luminaire head made from glass with moulded
designer cover in a wave shape and moulded
technopolymer moulded canopy
High transparent glass with a black ceramic edge
(BLACK TR) and integrated micro prism diffuser for
efficient light diffusion, glare minimisation, and
excellent uniformity
High transparent glass with a white ceramic edge
(WHITE TR) and integrated micro prism for efficient
light diffusion, glare minimisation, and excellent
uniformity
Partially mirrored, black glass with a black ceramic
edge (BLACK DRK) and integrated micro prism for
efficient light diffusion, glare minimisation, and
excellent uniformity
Sensor device available with task oriented PIR
detector and daylight control upon request
Suitable for use in a computer environment in
accordance with DIN EN 12464-1.
Flowing forms create a dynamically vibrant sculptural effect that remains suspended in time
Luminaire lumen output (lm)
P BK-RAL9005 / Black RAL9005 / Glossy
U WH-RAL9003 / White RAL9003 / Glossy
