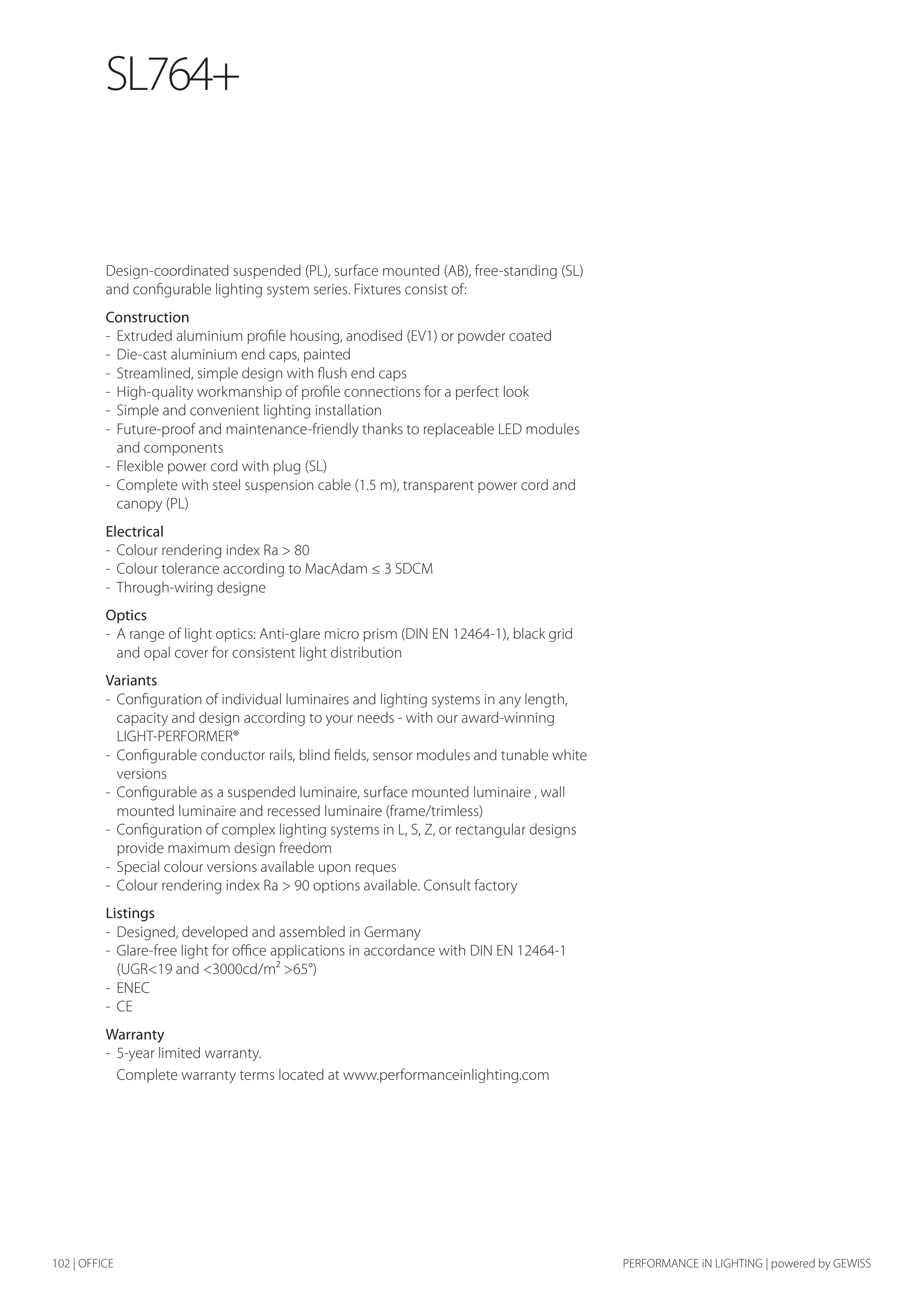

SL764+
Design-coordinated suspended (PL), surface mounted (AB), free-standing (SL)
and configurable lighting system series. Fixtures consist of:
Construction
- Extruded aluminium profile housing, anodised (EV1) or powder coated
- Die-cast aluminium end caps, painted
- Streamlined, simple design with flush end caps
- High-quality workmanship of profile connections for a perfect look
- Simple and convenient lighting installation
- Future-proof and maintenance-friendly thanks to replaceable LED modules
and components
- Flexible power cord with plug (SL)
- Complete with steel suspension cable (1.5 m), transparent power cord and
canopy (PL)
Electrical
- Colour rendering index Ra > 80
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Through-wiring designe
Optics
- A range of light optics: Anti-glare micro prism (DIN EN 12464-1), black grid
and opal cover for consistent light distribution
Variants
- Configuration of individual luminaires and lighting systems in any length,
capacity and design according to your needs - with our award-winning
LIGHT-PERFORMER®
- Configurable conductor rails, blind fields, sensor modules and tunable white
versions
- Configurable as a suspended luminaire, surface mounted luminaire , wall
mounted luminaire and recessed luminaire (frame/trimless)
- Configuration of complex lighting systems in L, S, Z, or rectangular designs
provide maximum design freedom
- Special colour versions available upon reques
- Colour rendering index Ra > 90 options available. Consult factory
Listings
- Designed, developed and assembled in Germany
- Glare-free light for office applications in accordance with DIN EN 12464-1
(UGR<19 and <3000cd/m² >65°)
- ENEC
- CE
Warranty
- 5-year limited warranty.
Complete warranty terms located at www.performanceinlighting.com
