PERFORMANCE iN LIGHTING | powered by GEWISS

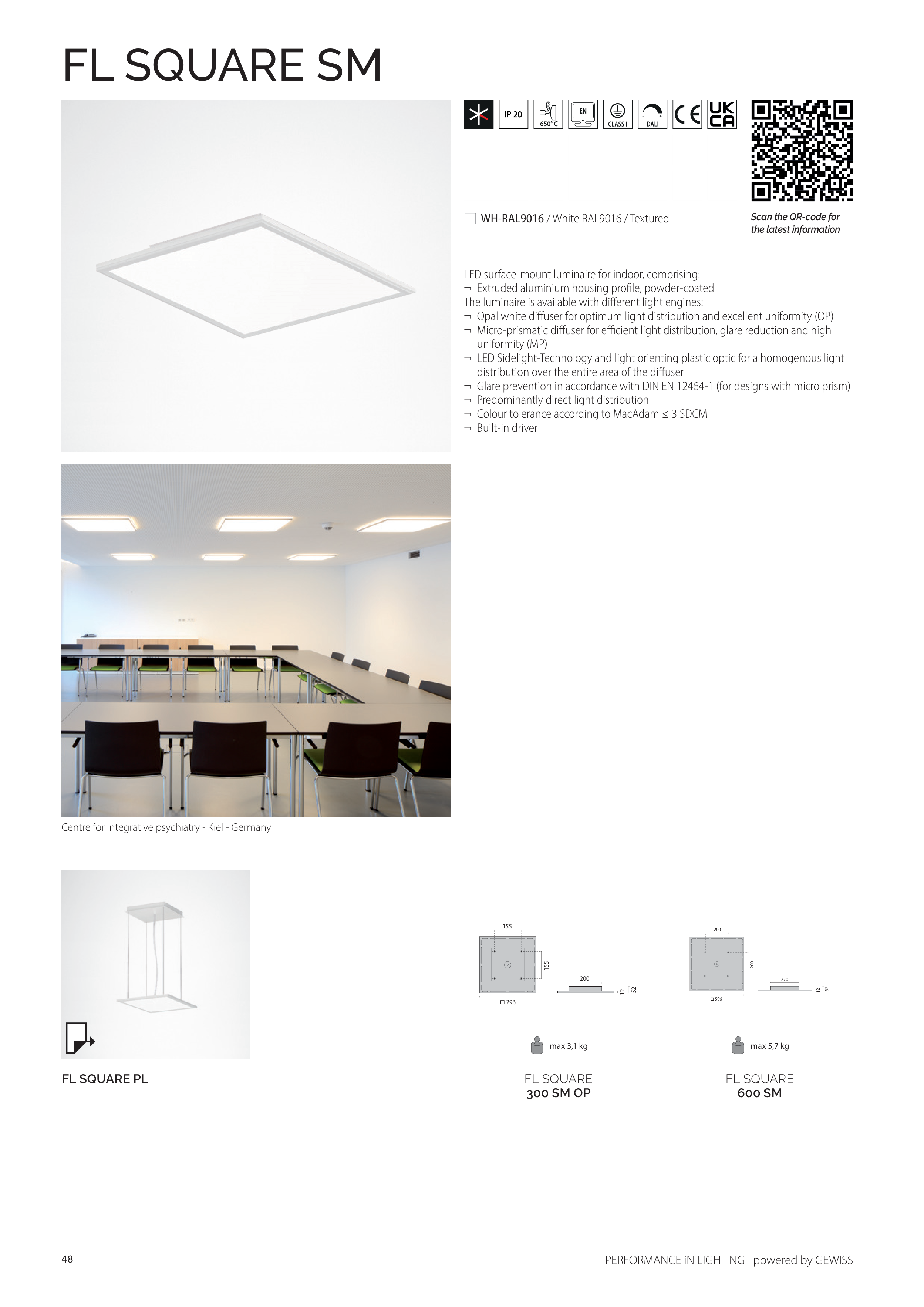

FL SQUARE SM
650° C
12
52
� 596
200
200
270
12
52
� 296
155
155
200
FL SQUARE
600 SM
FL SQUARE
300 SM OP
Centre for integrative psychiatry - Kiel - Germany
FL SQUARE PL
LED surface-mount luminaire for indoor, comprising:
¬ Extruded aluminium housing profile, powder-coated
The luminaire is available with different light engines:
¬ Opal white diffuser for optimum light distribution and excellent uniformity (OP)
¬ Micro-prismatic diffuser for efficient light distribution, glare reduction and high
uniformity (MP)
¬ LED Sidelight-Technology and light orienting plastic optic for a homogenous light
distribution over the entire area of the diffuser
¬ Glare prevention in accordance with DIN EN 12464-1 (for designs with micro prism)
¬ Predominantly direct light distribution
¬ Colour tolerance according to MacAdam ≤ 3 SDCM
¬ Built-in driver
T WH-RAL9016 / White RAL9016 / Textured
Scan the QR-code for
the latest information
48
max 3,1 kg
max 5,7 kg
