PERFORMANCE iN LIGHTING | powered by GEWISS

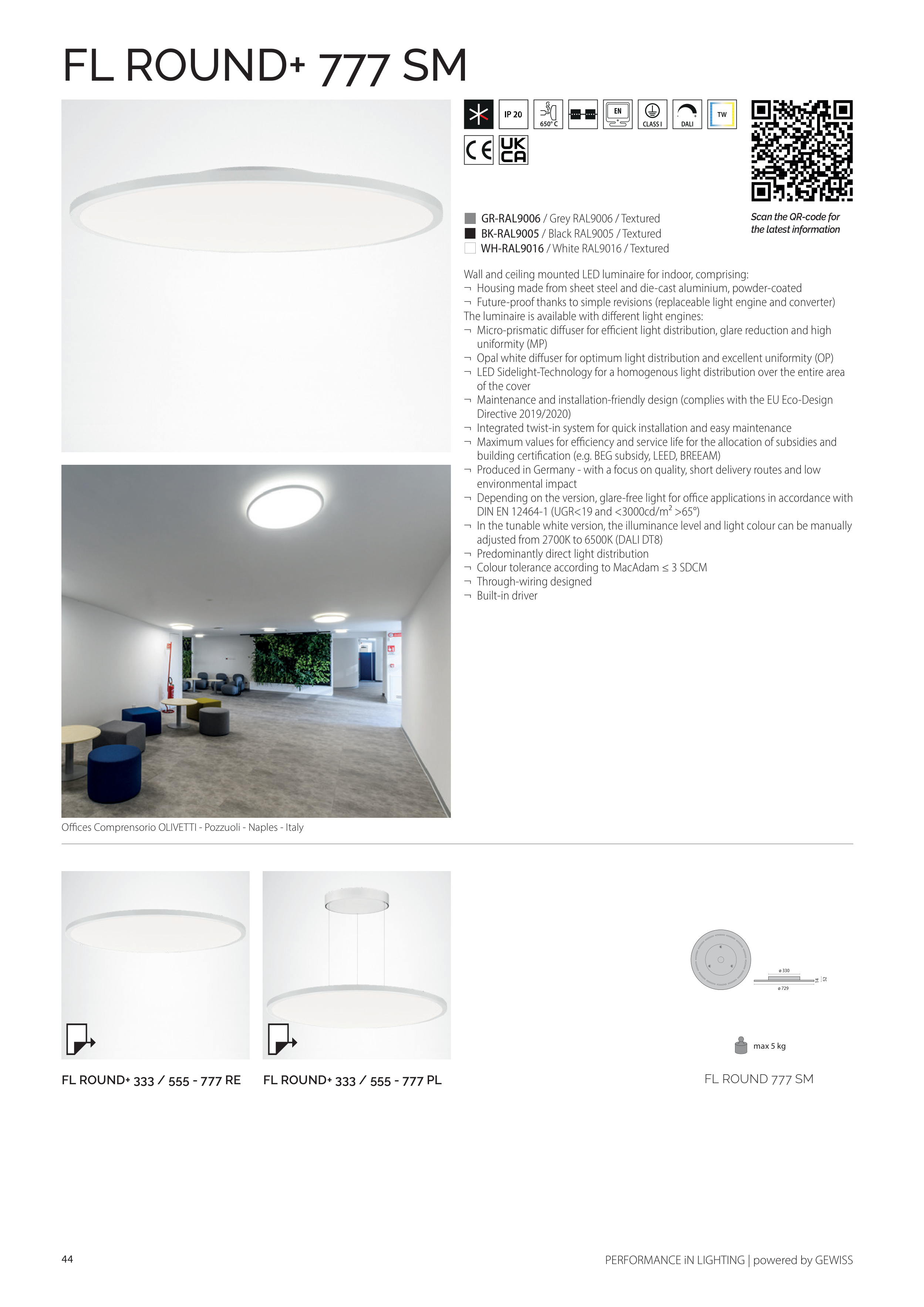

FL ROUND+ 777 SM
650° C
FL ROUND+ 333 / 555 - 777 PL
FL ROUND+ 333 / 555 - 777 RE
ø 330
14
ø 729
52
FL ROUND 777 SM
Offices Comprensorio OLIVETTI - Pozzuoli - Naples - Italy
Wall and ceiling mounted LED luminaire for indoor, comprising:
¬ Housing made from sheet steel and die-cast aluminium, powder-coated
¬ Future-proof thanks to simple revisions (replaceable light engine and converter)
The luminaire is available with different light engines:
¬ Micro-prismatic diffuser for efficient light distribution, glare reduction and high
uniformity (MP)
¬ Opal white diffuser for optimum light distribution and excellent uniformity (OP)
¬ LED Sidelight-Technology for a homogenous light distribution over the entire area
of the cover
¬ Maintenance and installation-friendly design (complies with the EU Eco-Design
Directive 2019/2020)
¬ Integrated twist-in system for quick installation and easy maintenance
¬ Maximum values for efficiency and service life for the allocation of subsidies and
building certification (e.g. BEG subsidy, LEED, BREEAM)
¬ Produced in Germany - with a focus on quality, short delivery routes and low
environmental impact
¬ Depending on the version, glare-free light for office applications in accordance with
DIN EN 12464-1 (UGR<19 and <3000cd/m² >65°)
¬ In the tunable white version, the illuminance level and light colour can be manually
adjusted from 2700K to 6500K (DALI DT8)
¬ Predominantly direct light distribution
¬ Colour tolerance according to MacAdam ≤ 3 SDCM
¬ Through-wiring designed
¬ Built-in driver
C GR-RAL9006 / Grey RAL9006 / Textured
q BK-RAL9005 / Black RAL9005 / Textured
T WH-RAL9016 / White RAL9016 / Textured
Scan the QR-code for
the latest information
44
max 5 kg
