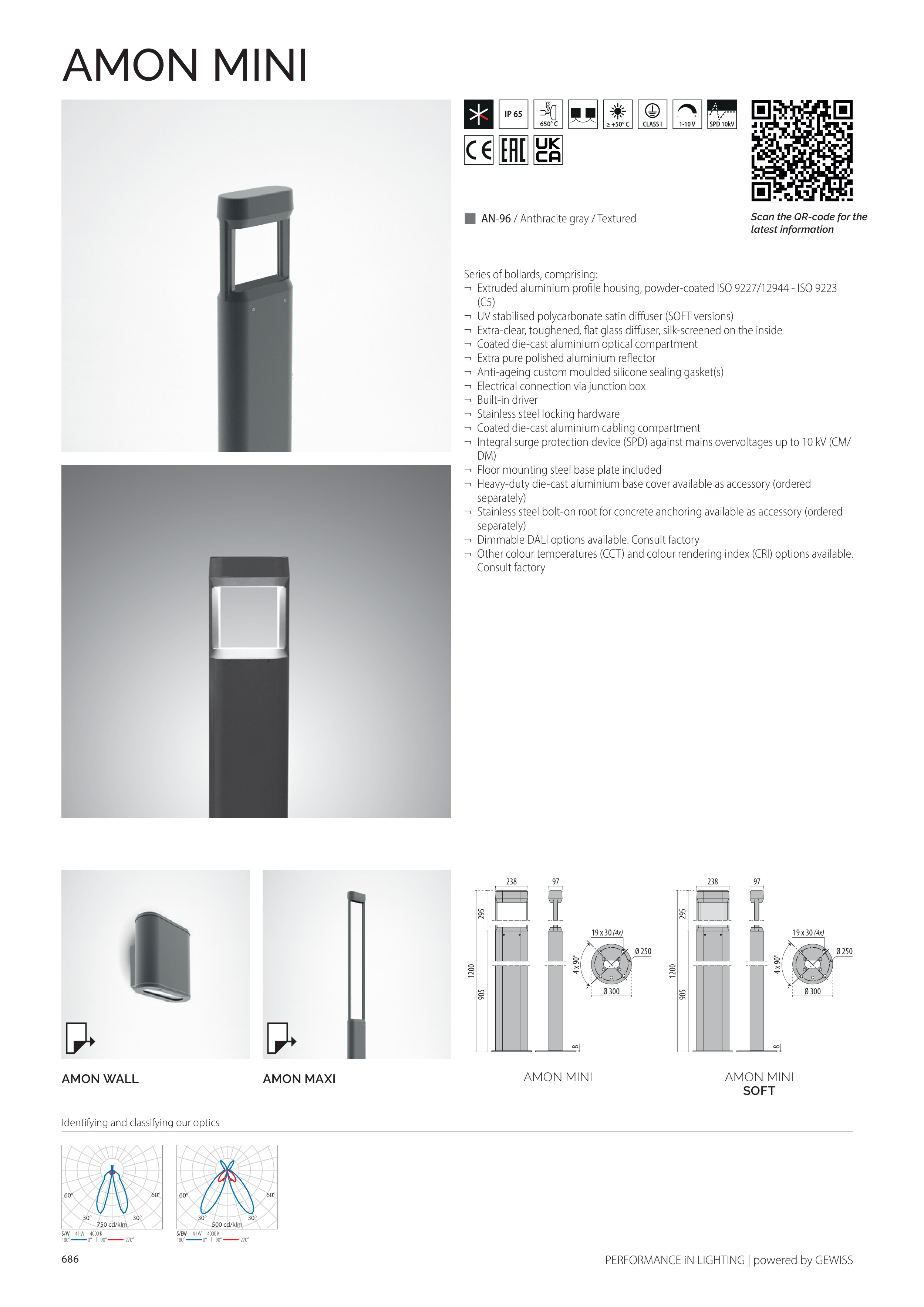

AMON MINI
650° C
≥ +50° C
Ø 300
4 x 90°
Ø 250
19 x 30 (4x)
238
295
905
1200
97
8
Ø 300
4 x 90°
Ø 250
19 x 30 (4x)
238
295
905
1200
97
8
AMON MINI
SOFT
AMON MINI
AMON WALL
AMON MAXI
750 cd/klm
750 cd/klm
750 cd/klm
750 cd/klm
750 cd/klm
60°
60°
60°
60°
60°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
60°
60°
60°
60°
60°
S/W - 41 W - 4000 K 306059
500 cd/klm
500 cd/klm
500 cd/klm
500 cd/klm
500 cd/klm
60°
60°
60°
60°
60°
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
60°
60°
60°
60°
60°
S/EW - 41 W - 4000 K 306061
Modificato manualmente didasclaie CAD
Series of bollards, comprising:
¬ Extruded aluminium profile housing, powder-coated ISO 9227/12944 - ISO 9223
(C5)
¬ UV stabilised polycarbonate satin diffuser (SOFT versions)
¬ Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
¬ Coated die-cast aluminium optical compartment
¬ Extra pure polished aluminium reflector
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Electrical connection via junction box
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Coated die-cast aluminium cabling compartment
¬ Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/
DM)
¬ Floor mounting steel base plate included
¬ Heavy-duty die-cast aluminium base cover available as accessory (ordered
separately)
¬ Stainless steel bolt-on root for concrete anchoring available as accessory (ordered
separately)
¬ Dimmable DALI options available. Consult factory
¬ Other colour temperatures (CCT) and colour rendering index (CRI) options available.
Consult factory
L AN-96 / Anthracite gray / Textured
Scan the QR-code for the
latest information
Identifying and classifying our optics
