PERFORMANCE iN LIGHTING | powered by GEWISS
INDEX+
750° C
Ø 155
859
120°
Ø 149
Ø 9 (3x)
Ø 108
Ø 155
460
120°
Ø 149
Ø 9 (3x)
Ø 108

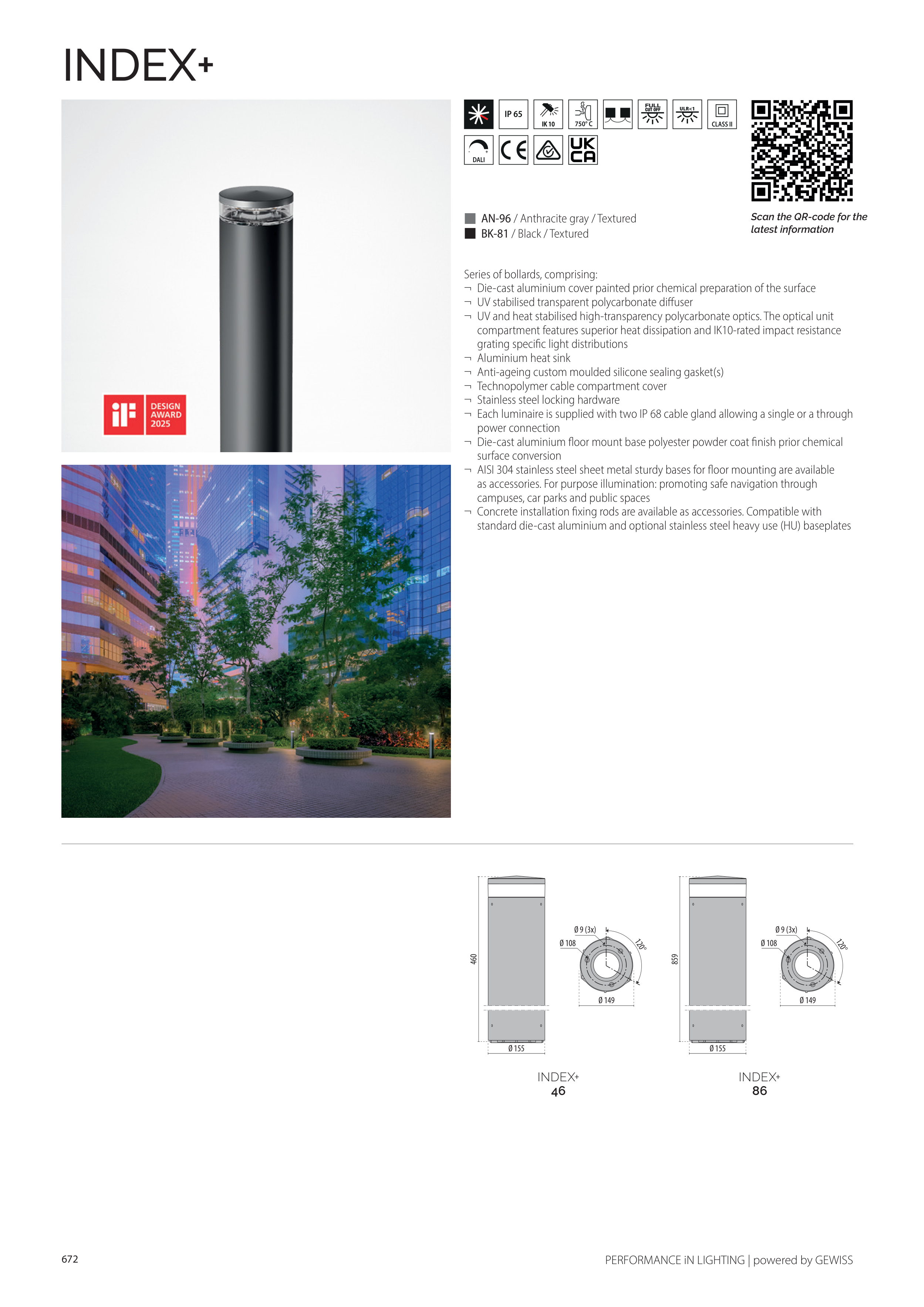

INDEX+
86
INDEX+
46
Series of bollards, comprising:
¬ Die-cast aluminium cover painted prior chemical preparation of the surface
¬ UV stabilised transparent polycarbonate diffuser
¬ UV and heat stabilised high-transparency polycarbonate optics. The optical unit
compartment features superior heat dissipation and IK10-rated impact resistance
grating specific light distributions
¬ Aluminium heat sink
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Technopolymer cable compartment cover
¬ Stainless steel locking hardware
¬ Each luminaire is supplied with two IP 68 cable gland allowing a single or a through
power connection
¬ Die-cast aluminium floor mount base polyester powder coat finish prior chemical
surface conversion
¬ AISI 304 stainless steel sheet metal sturdy bases for floor mounting are available
as accessories. For purpose illumination: promoting safe navigation through
campuses, car parks and public spaces
¬ Concrete installation fixing rods are available as accessories. Compatible with
standard die-cast aluminium and optional stainless steel heavy use (HU) baseplates
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
Scan the QR-code for the
latest information
672
