PERFORMANCE iN LIGHTING | powered by GEWISS

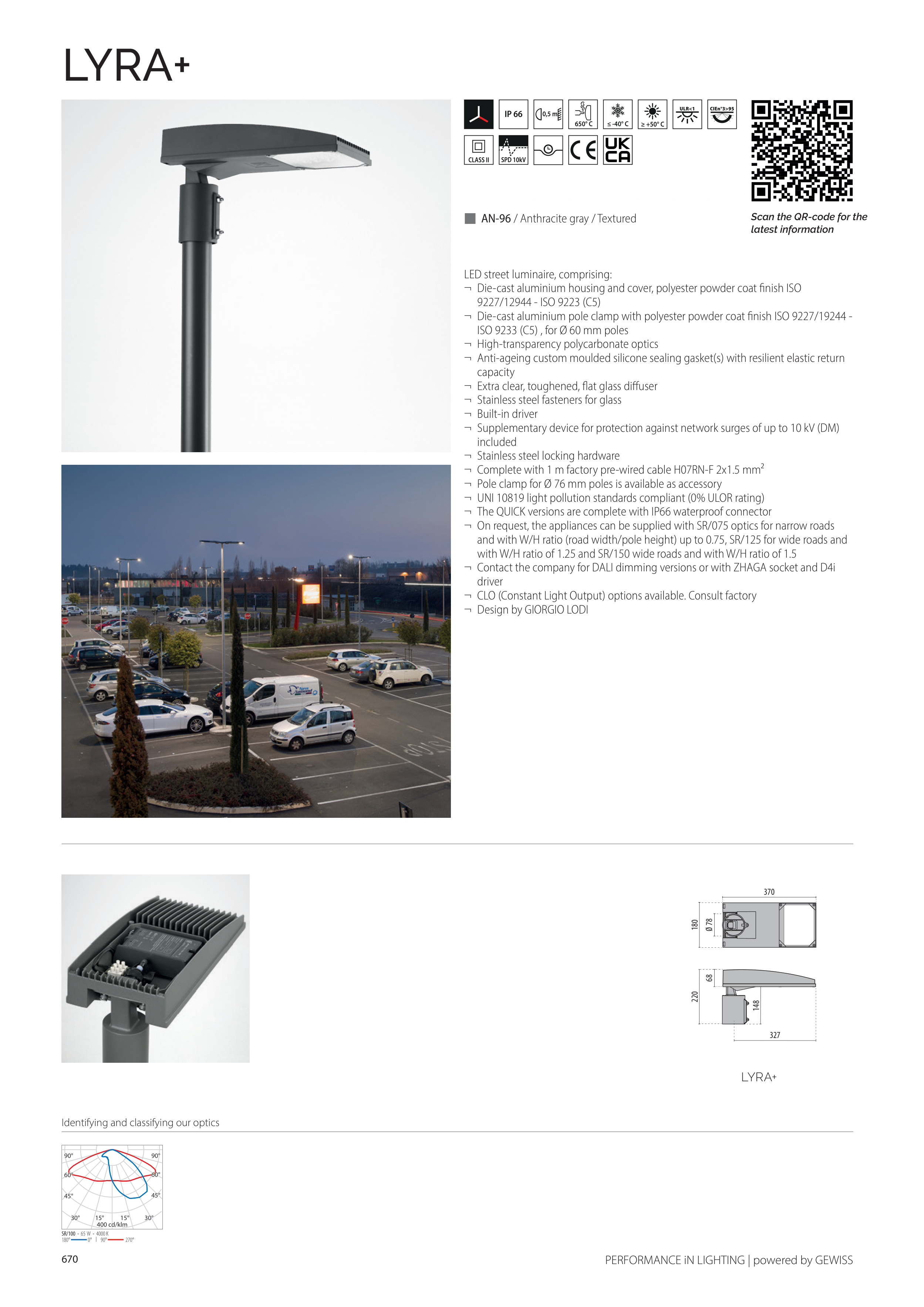

LYRA+
0,5 m
650° C ≤ -40° C ≥ +50° C
327
370
180
Ø 78
220
68
148
LYRA+
500 cd/klm
500 cd/klm
500 cd/klm
500 cd/klm
400 cd/klm
90°
90°
90°
90°
90°
90°
90°
90°
90°
90°
60°
60°
60°
60°
60°
45°
45°
45°
45°
45°
30°
30°
30°
30°
30°
15°
15°
15°
15°
15°
15°
15°
15°
15°
15°
30°
30°
30°
30°
30°
45°
45°
45°
45°
45°
60°
60°
60°
60°
60°
SR/100 - 65 W - 4000 K 306460
LED street luminaire, comprising:
¬ Die-cast aluminium housing and cover, polyester powder coat finish ISO
9227/12944 - ISO 9223 (C5)
¬ Die-cast aluminium pole clamp with polyester powder coat finish ISO 9227/19244 -
ISO 9233 (C5) , for Ø 60 mm poles
¬ High-transparency polycarbonate optics
¬ Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return
capacity
¬ Extra clear, toughened, flat glass diffuser
¬ Stainless steel fasteners for glass
¬ Built-in driver
¬ Supplementary device for protection against network surges of up to 10 kV (DM)
included
¬ Stainless steel locking hardware
¬ Complete with 1 m factory pre-wired cable H07RN-F 2x1.5 mm²
¬ Pole clamp for Ø 76 mm poles is available as accessory
¬ UNI 10819 light pollution standards compliant (0% ULOR rating)
¬ The QUICK versions are complete with IP66 waterproof connector
¬ On request, the appliances can be supplied with SR/075 optics for narrow roads
and with W/H ratio (road width/pole height) up to 0.75, SR/125 for wide roads and
with W/H ratio of 1.25 and SR/150 wide roads and with W/H ratio of 1.5
¬ Contact the company for DALI dimming versions or with ZHAGA socket and D4i
driver
¬ CLO (Constant Light Output) options available. Consult factory
¬ Design by GIORGIO LODI
Scan the QR-code for the
latest information
Identifying and classifying our optics
L AN-96 / Anthracite gray / Textured
670
