PERFORMANCE iN LIGHTING | powered by GEWISS

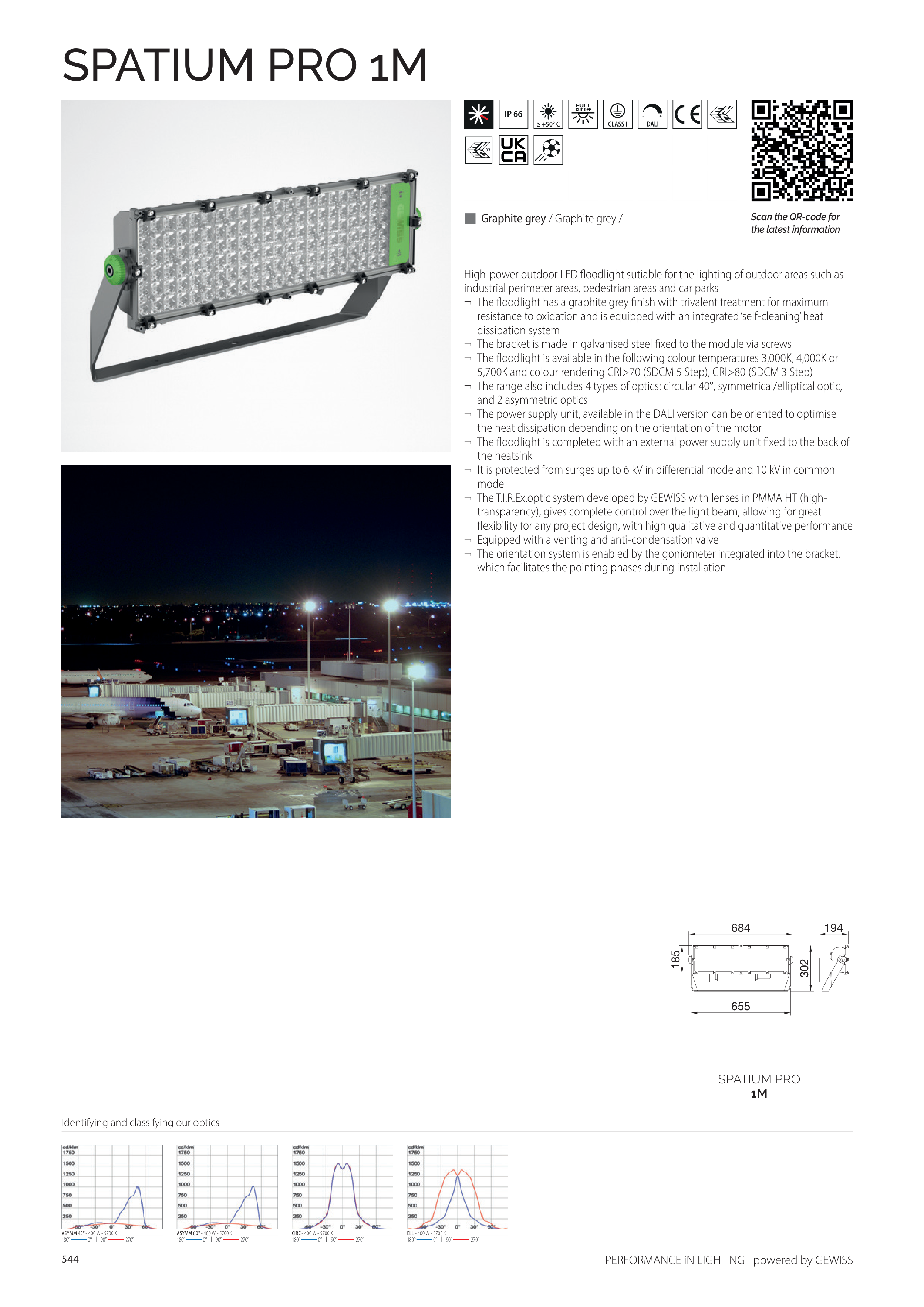

SPATIUM PRO 1M
≥ +50° C
03
194
302
185
655
684
SPATIUM PRO
1M
3100132
ASYMM 60° - 400 W - 5700 K
3100132
CIRC - 400 W - 5700 K
3100132
ASYMM 45° - 400 W - 5700 K
3100132
ELL - 400 W - 5700 K
High-power outdoor LED floodlight sutiable for the lighting of outdoor areas such as
industrial perimeter areas, pedestrian areas and car parks
¬ The floodlight has a graphite grey finish with trivalent treatment for maximum
resistance to oxidation and is equipped with an integrated ‘self-cleaning’ heat
dissipation system
¬ The bracket is made in galvanised steel fixed to the module via screws
¬ The floodlight is available in the following colour temperatures 3,000K, 4,000K or
5,700K and colour rendering CRI>70 (SDCM 5 Step), CRI>80 (SDCM 3 Step)
¬ The range also includes 4 types of optics: circular 40°, symmetrical/elliptical optic,
and 2 asymmetric optics
¬ The power supply unit, available in the DALI version can be oriented to optimise
the heat dissipation depending on the orientation of the motor
¬ The floodlight is completed with an external power supply unit fixed to the back of
the heatsink
¬ It is protected from surges up to 6 kV in differential mode and 10 kV in common
mode
¬ The T.I.R.Ex.optic system developed by GEWISS with lenses in PMMA HT (high-
transparency), gives complete control over the light beam, allowing for great
flexibility for any project design, with high qualitative and quantitative performance
¬ Equipped with a venting and anti-condensation valve
¬ The orientation system is enabled by the goniometer integrated into the bracket,
which facilitates the pointing phases during installation
Scan the QR-code for
the latest information
Identifying and classifying our optics
L Graphite grey / Graphite grey /
544
