PERFORMANCE iN LIGHTING | powered by GEWISS
SHIELD+ 2
≤ -40° C
356
125
47
230
240
100

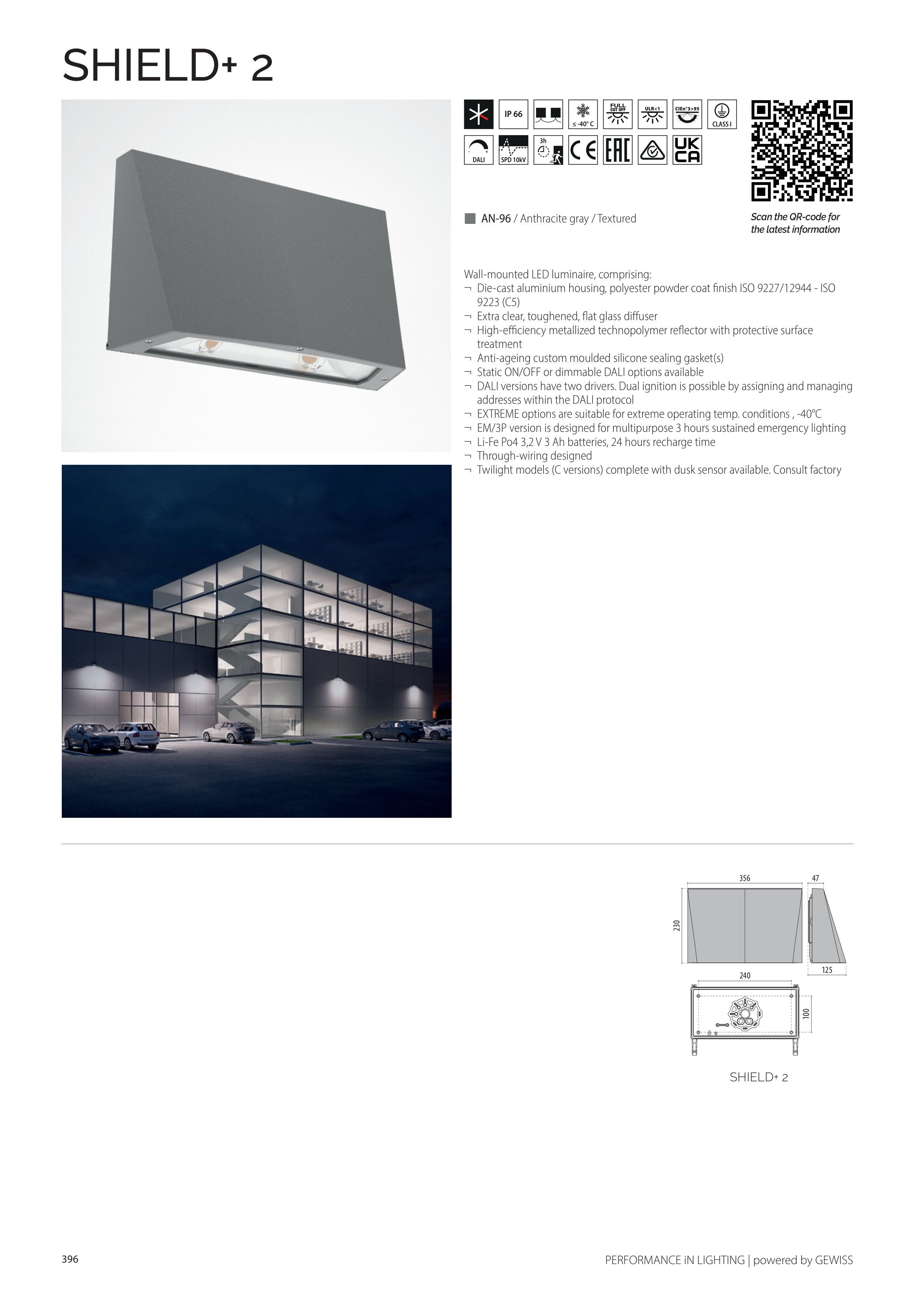

SHIELD+ 2
Wall-mounted LED luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Extra clear, toughened, flat glass diffuser
¬ High-efficiency metallized technopolymer reflector with protective surface
treatment
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Static ON/OFF or dimmable DALI options available
¬ DALI versions have two drivers. Dual ignition is possible by assigning and managing
addresses within the DALI protocol
¬ EXTREME options are suitable for extreme operating temp. conditions , -40°C
¬ EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
¬ Li-Fe Po4 3,2 V 3 Ah batteries, 24 hours recharge time
¬ Through-wiring designed
¬ Twilight models (C versions) complete with dusk sensor available. Consult factory
L AN-96 / Anthracite gray / Textured
Scan the QR-code for
the latest information
396
