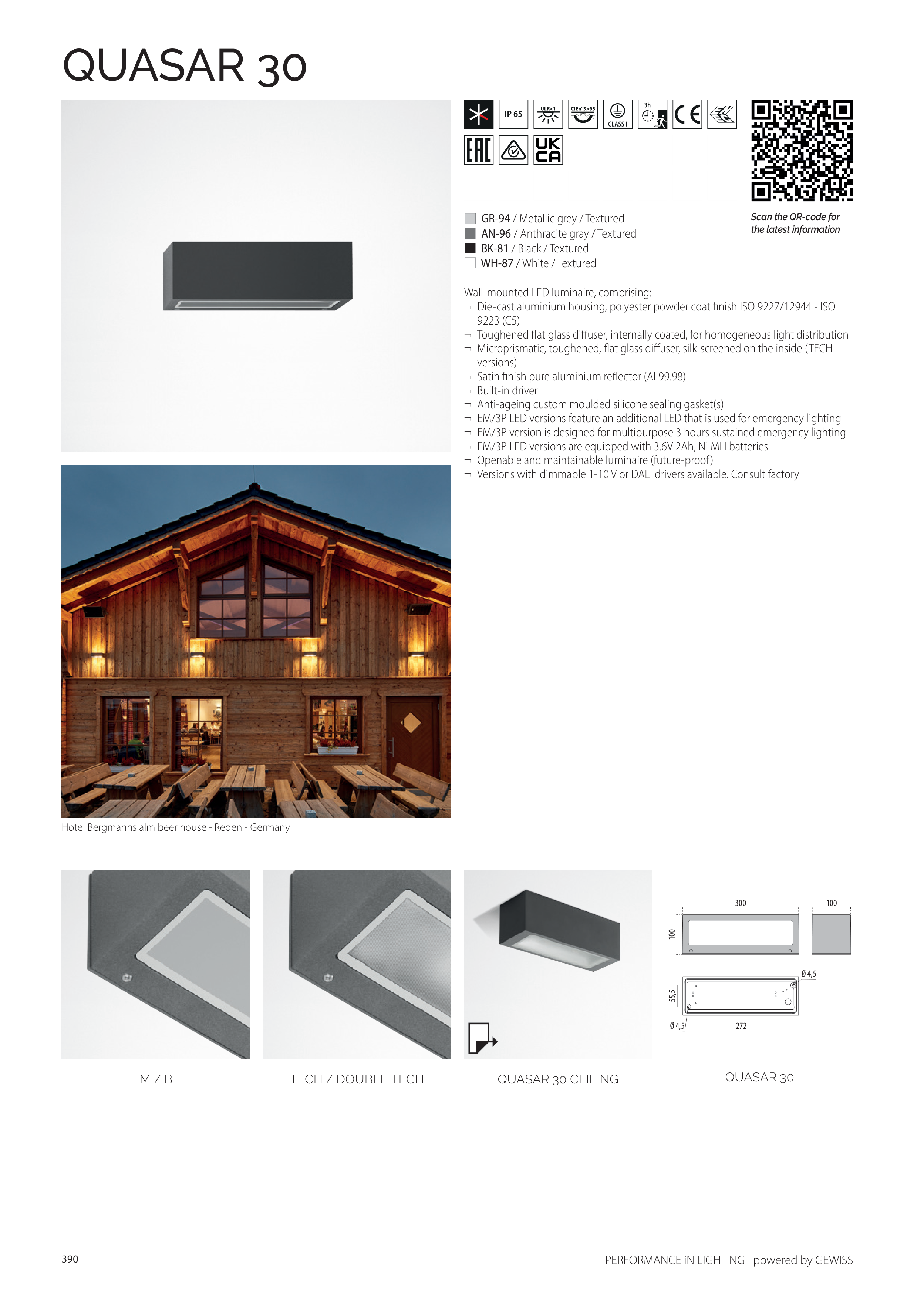

QUASAR 30
100
100
300
55,5
272
Ø 4,5
Ø 4,5
QUASAR 30
Hotel Bergmanns alm beer house - Reden - Germany
M / B
TECH / DOUBLE TECH
QUASAR 30 CEILING
Wall-mounted LED luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Toughened flat glass diffuser, internally coated, for homogeneous light distribution
¬ Microprismatic, toughened, flat glass diffuser, silk-screened on the inside (TECH
versions)
¬ Satin finish pure aluminium reflector (Al 99.98)
¬ Built-in driver
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ EM/3P LED versions feature an additional LED that is used for emergency lighting
¬ EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
¬ EM/3P LED versions are equipped with 3.6V 2Ah, Ni MH batteries
¬ Openable and maintainable luminaire (future-proof)
¬ Versions with dimmable 1-10 V or DALI drivers available. Consult factory
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
T WH-87 / White / Textured
Scan the QR-code for
the latest information
390
