PERFORMANCE iN LIGHTING | powered by GEWISS

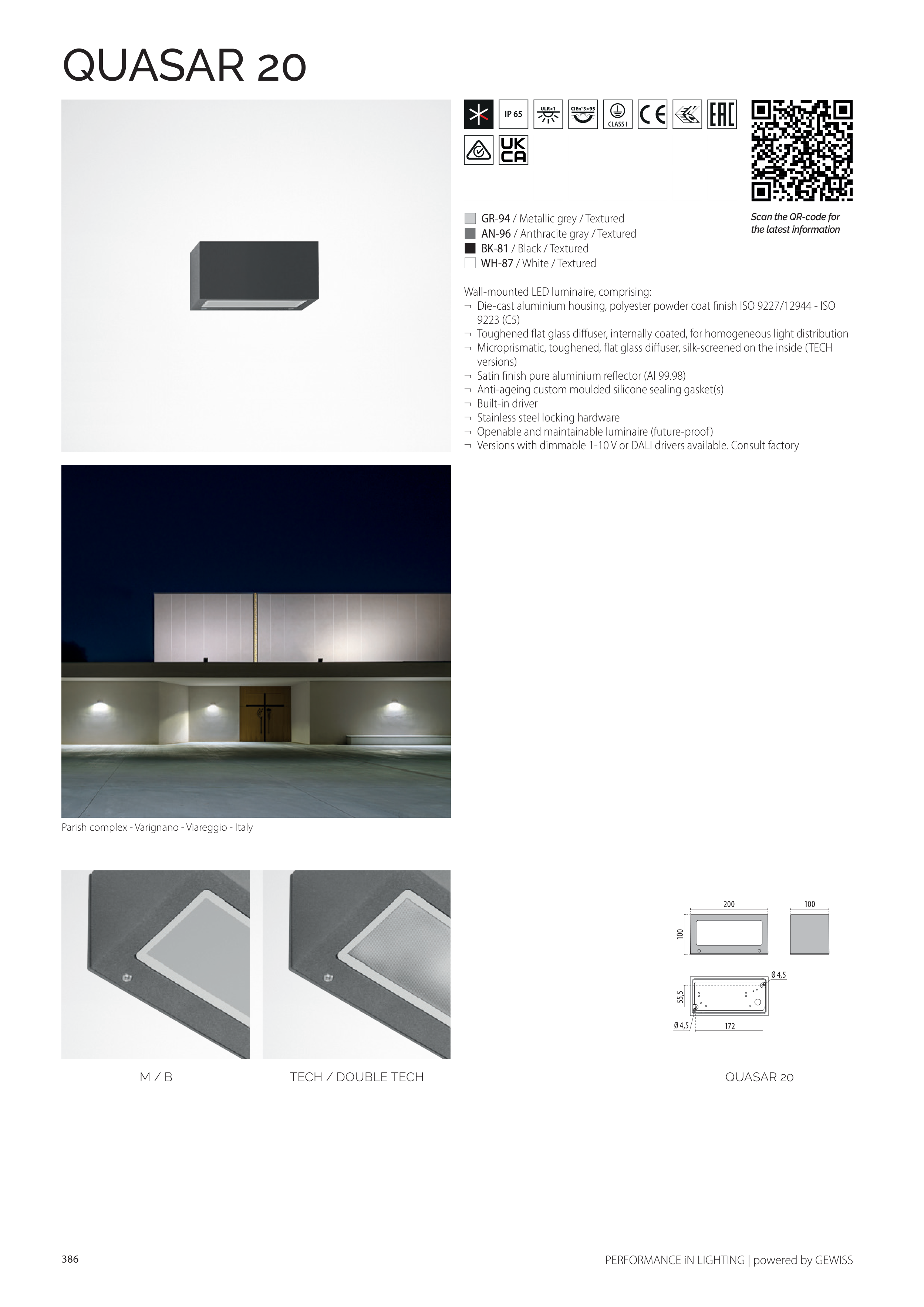

QUASAR 20
Ø 4,5
100
100
200
55,5
172
Ø 4,5
QUASAR 20
Parish complex - Varignano - Viareggio - Italy
M / B
TECH / DOUBLE TECH
Wall-mounted LED luminaire, comprising:
¬ Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO
9223 (C5)
¬ Toughened flat glass diffuser, internally coated, for homogeneous light distribution
¬ Microprismatic, toughened, flat glass diffuser, silk-screened on the inside (TECH
versions)
¬ Satin finish pure aluminium reflector (Al 99.98)
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Built-in driver
¬ Stainless steel locking hardware
¬ Openable and maintainable luminaire (future-proof)
¬ Versions with dimmable 1-10 V or DALI drivers available. Consult factory
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
T WH-87 / White / Textured
Scan the QR-code for
the latest information
386
