PERFORMANCE iN LIGHTING | powered by GEWISS

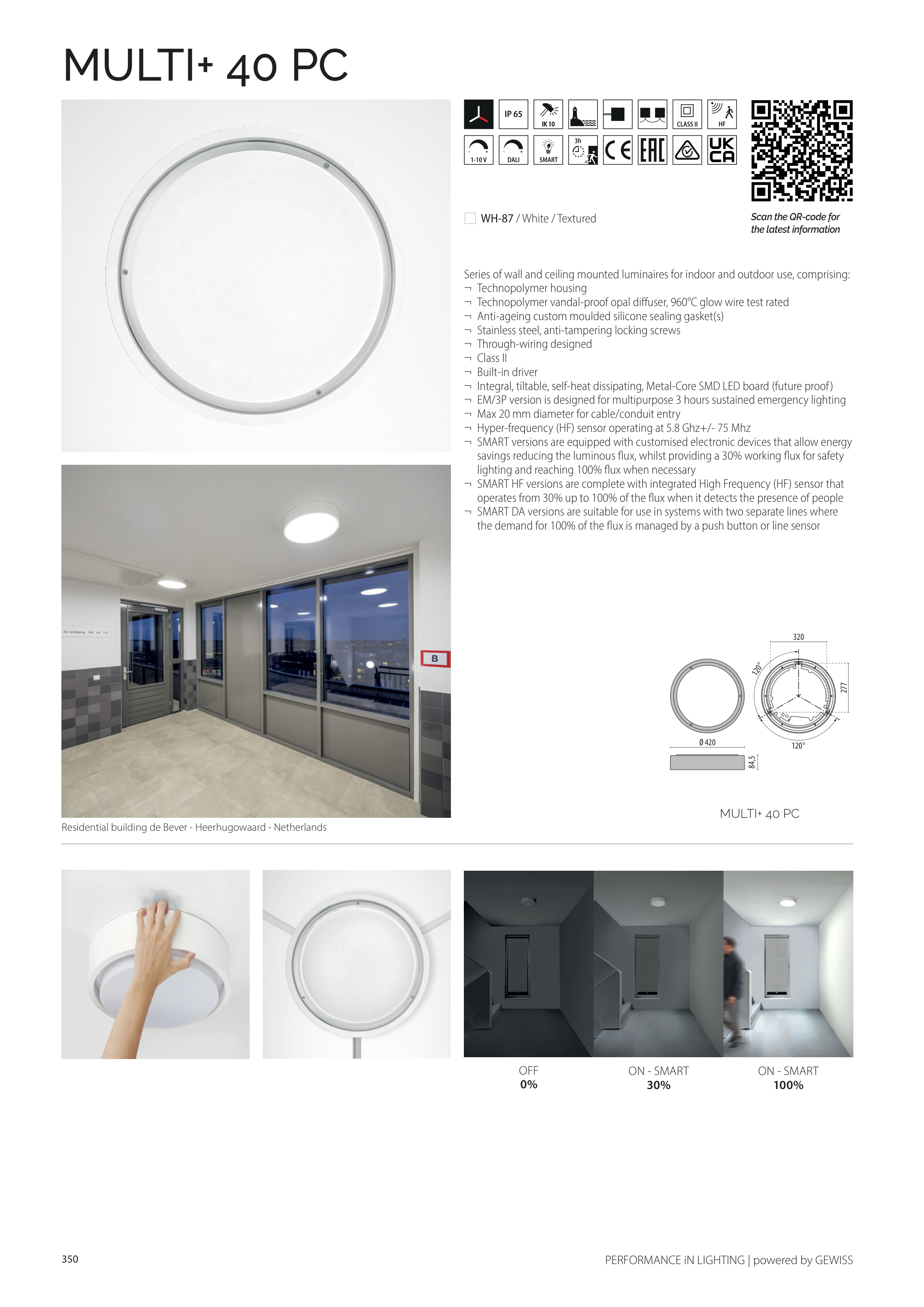

MULTI+ 40 PC
Ø 420
84,5
120°
277
320
120°
MULTI+ 40 PC
Residential building de Bever - Heerhugowaard - Netherlands
OFF
0%
ON - SMART
30%
ON - SMART
100%
Series of wall and ceiling mounted luminaires for indoor and outdoor use, comprising:
¬ Technopolymer housing
¬ Technopolymer vandal-proof opal diffuser, 960°C glow wire test rated
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Stainless steel, anti-tampering locking screws
¬ Through-wiring designed
¬ Class II
¬ Built-in driver
¬ Integral, tiltable, self-heat dissipating, Metal-Core SMD LED board (future proof)
¬ EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
¬ Max 20 mm diameter for cable/conduit entry
¬ Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
¬ SMART versions are equipped with customised electronic devices that allow energy
savings reducing the luminous flux, whilst providing a 30% working flux for safety
lighting and reaching 100% flux when necessary
¬ SMART HF versions are complete with integrated High Frequency (HF) sensor that
operates from 30% up to 100% of the flux when it detects the presence of people
¬ SMART DA versions are suitable for use in systems with two separate lines where
the demand for 100% of the flux is managed by a push button or line sensor
T WH-87 / White / Textured
Scan the QR-code for
the latest information
350
