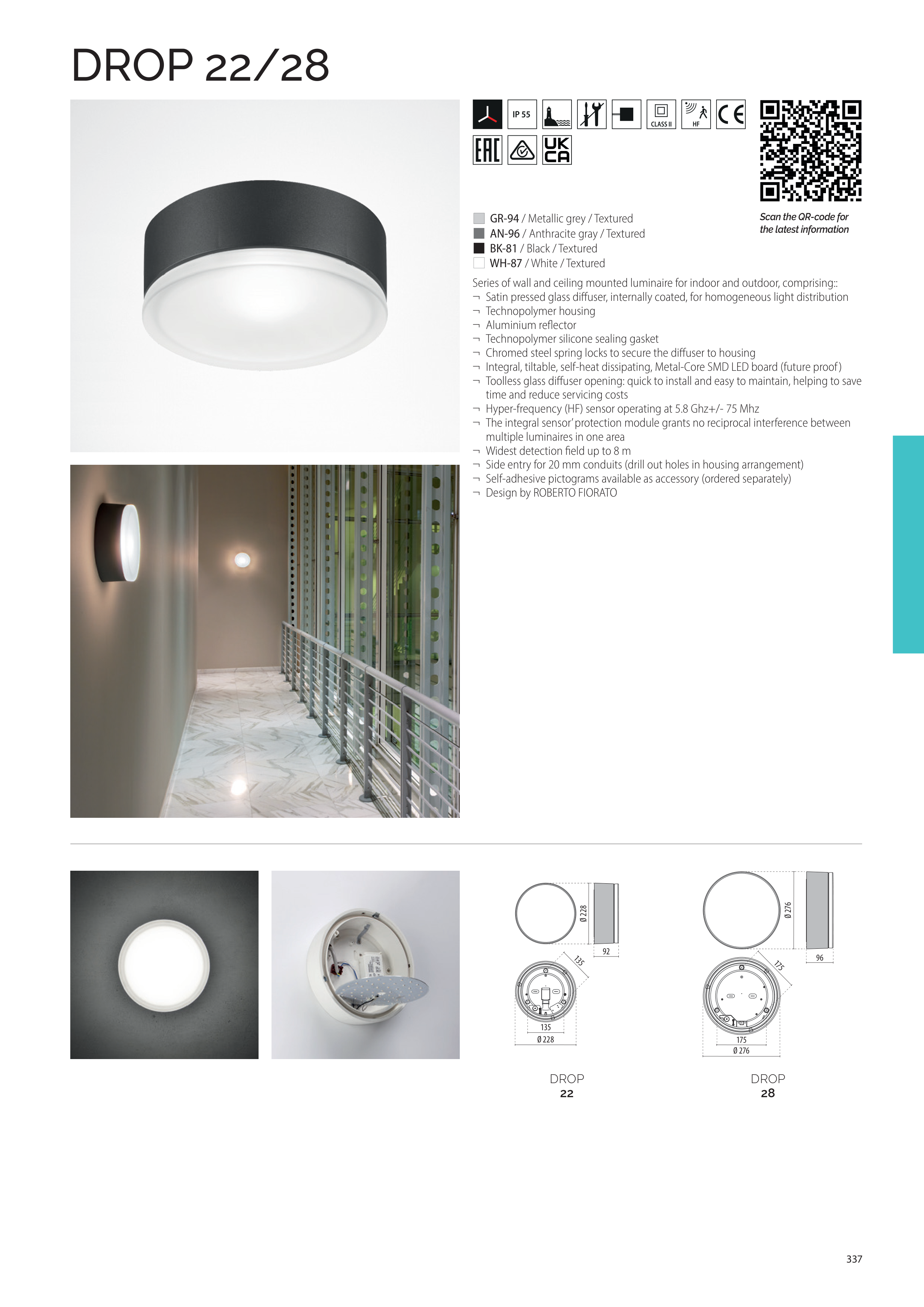

DROP 22/28
Ø 276
96
175
Ø 276
175
Ø 228
92
135
135
Ø 228
DROP
28
DROP
22
Series of wall and ceiling mounted luminaire for indoor and outdoor, comprising::
¬ Satin pressed glass diffuser, internally coated, for homogeneous light distribution
¬ Technopolymer housing
¬ Aluminium reflector
¬ Technopolymer silicone sealing gasket
¬ Chromed steel spring locks to secure the diffuser to housing
¬ Integral, tiltable, self-heat dissipating, Metal-Core SMD LED board (future proof)
¬ Toolless glass diffuser opening: quick to install and easy to maintain, helping to save
time and reduce servicing costs
¬ Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
¬ The integral sensor’ protection module grants no reciprocal interference between
multiple luminaires in one area
¬ Widest detection field up to 8 m
¬ Side entry for 20 mm conduits (drill out holes in housing arrangement)
¬ Self-adhesive pictograms available as accessory (ordered separately)
¬ Design by ROBERTO FIORATO
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
T WH-87 / White / Textured
Scan the QR-code for
the latest information
337
