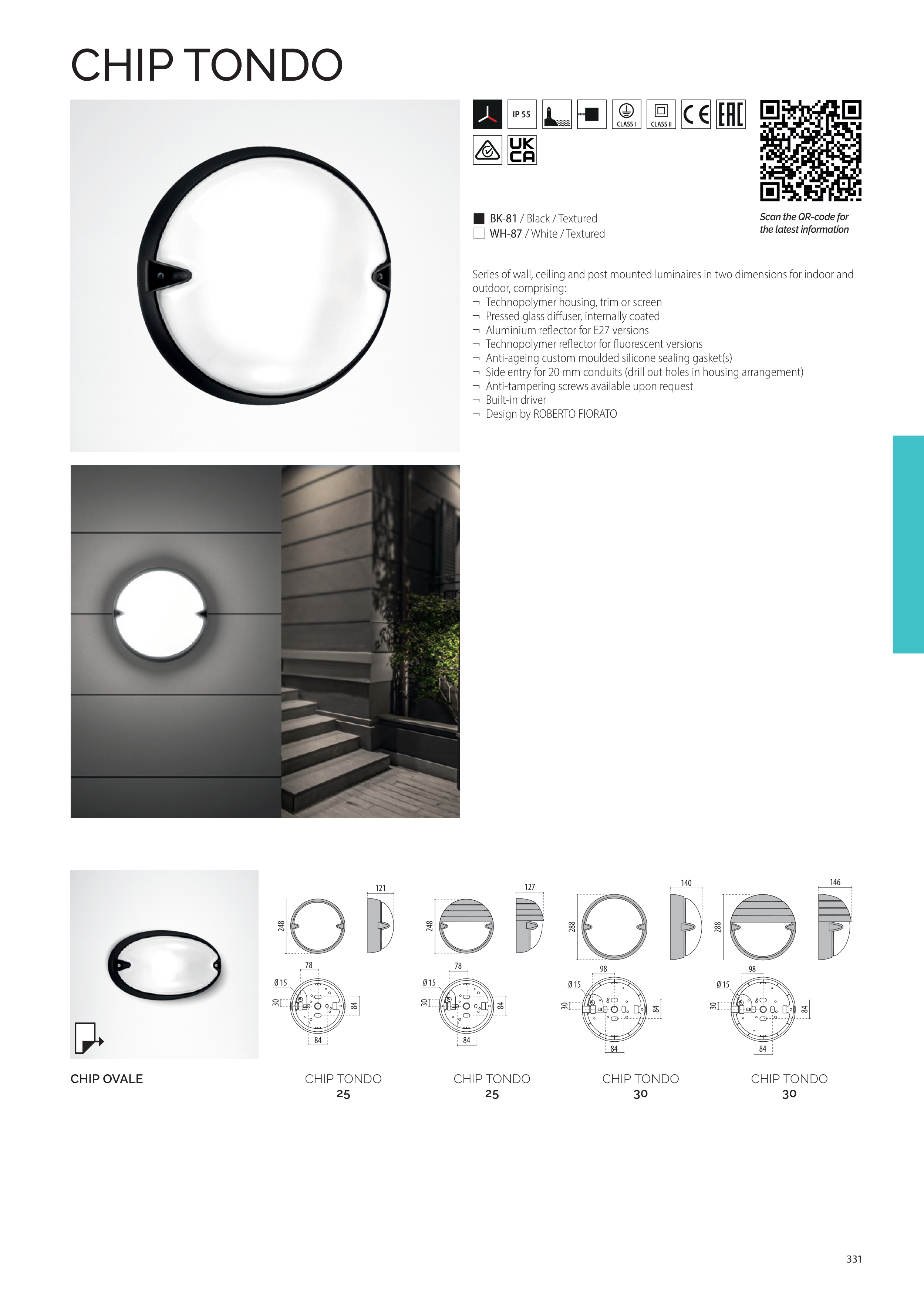

CHIP TONDO
84
84
30
98
Ø 15
288
146
84
84
30
98
288
140
Ø 15
248
127
78
84
30
84
Ø 15
78
84
30
84
Ø 15
248
121
CHIP TONDO
30
CHIP TONDO
30
CHIP TONDO
25
CHIP TONDO
25
CHIP OVALE
Series of wall, ceiling and post mounted luminaires in two dimensions for indoor and
outdoor, comprising:
¬ Technopolymer housing, trim or screen
¬ Pressed glass diffuser, internally coated
¬ Aluminium reflector for E27 versions
¬ Technopolymer reflector for fluorescent versions
¬ Anti-ageing custom moulded silicone sealing gasket(s)
¬ Side entry for 20 mm conduits (drill out holes in housing arrangement)
¬ Anti-tampering screws available upon request
¬ Built-in driver
¬ Design by ROBERTO FIORATO
o BK-81 / Black / Textured
T WH-87 / White / Textured
Scan the QR-code for
the latest information
331
