A
A
B
444
149
70
149
70
149
70
833
1233
151
150
281
151
150
281
151
150
281
I 000449
L 000450
I 000453
L 000454
A
B
30
161
70
209
424
I 000441
L 000442
traduzioni mancanti

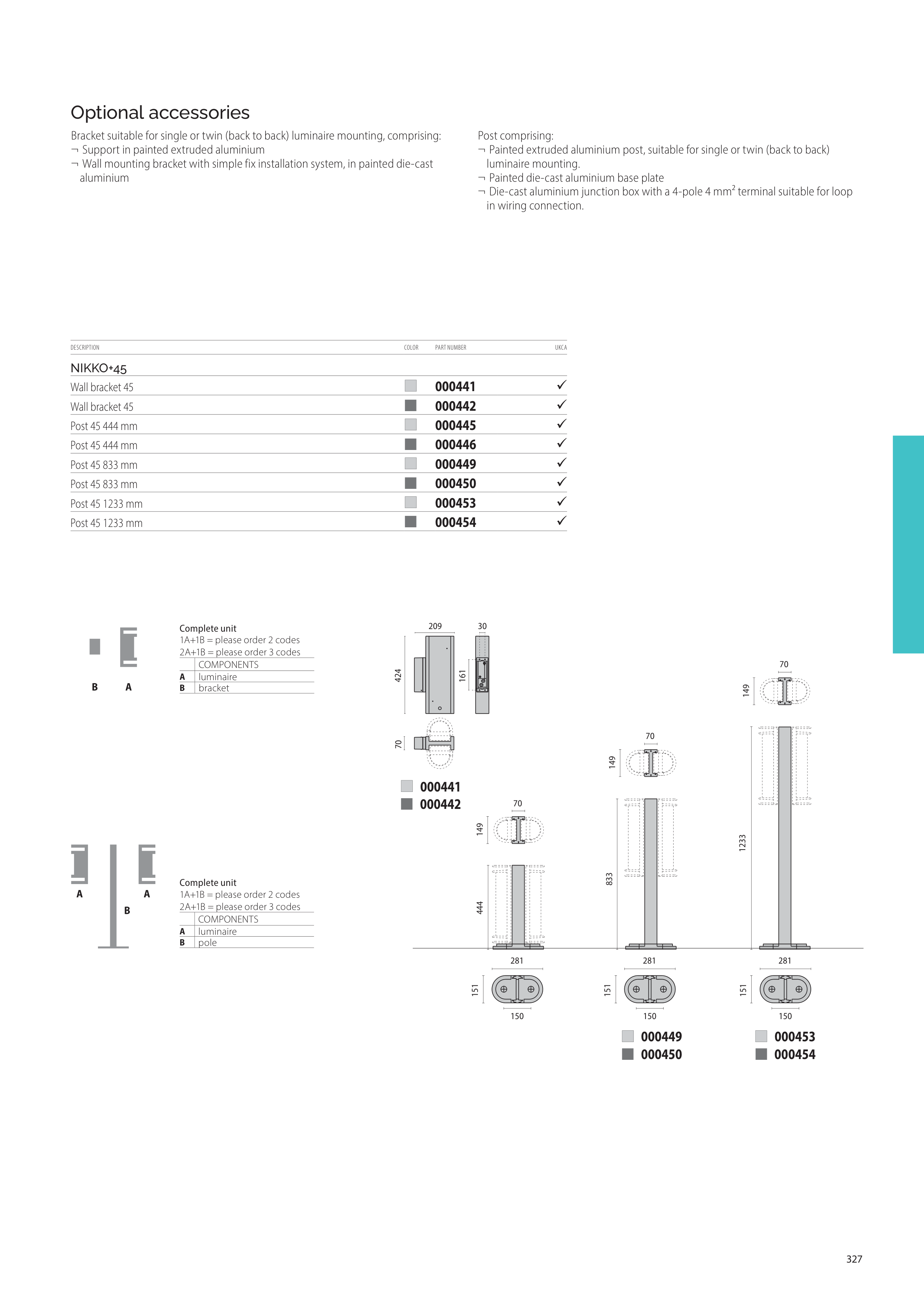

Optional accessories
DESCRIPTION
COLOR
PART NUMBER
UKCA
NIKKO+45
Wall bracket 45
I
000441
ü
Wall bracket 45
L
000442
ü
Post 45 444 mm
I
000445
ü
Post 45 444 mm
L
000446
ü
Post 45 833 mm
I
000449
ü
Post 45 833 mm
L
000450
ü
Post 45 1233 mm
I
000453
ü
Post 45 1233 mm
L
000454
ü
Bracket suitable for single or twin (back to back) luminaire mounting, comprising:
¬ Support in painted extruded aluminium
¬ Wall mounting bracket with simple fix installation system, in painted die-cast
aluminium
Post comprising:
¬ Painted extruded aluminium post, suitable for single or twin (back to back)
luminaire mounting.
¬ Painted die-cast aluminium base plate
¬ Die-cast aluminium junction box with a 4-pole 4 mm² terminal suitable for loop
in wiring connection.
Complete unit
1A+1B = please order 2 codes
2A+1B = please order 3 codes
COMPONENTS
A
luminaire
B
pole
Complete unit
1A+1B = please order 2 codes
2A+1B = please order 3 codes
COMPONENTS
A
luminaire
B
bracket
327
