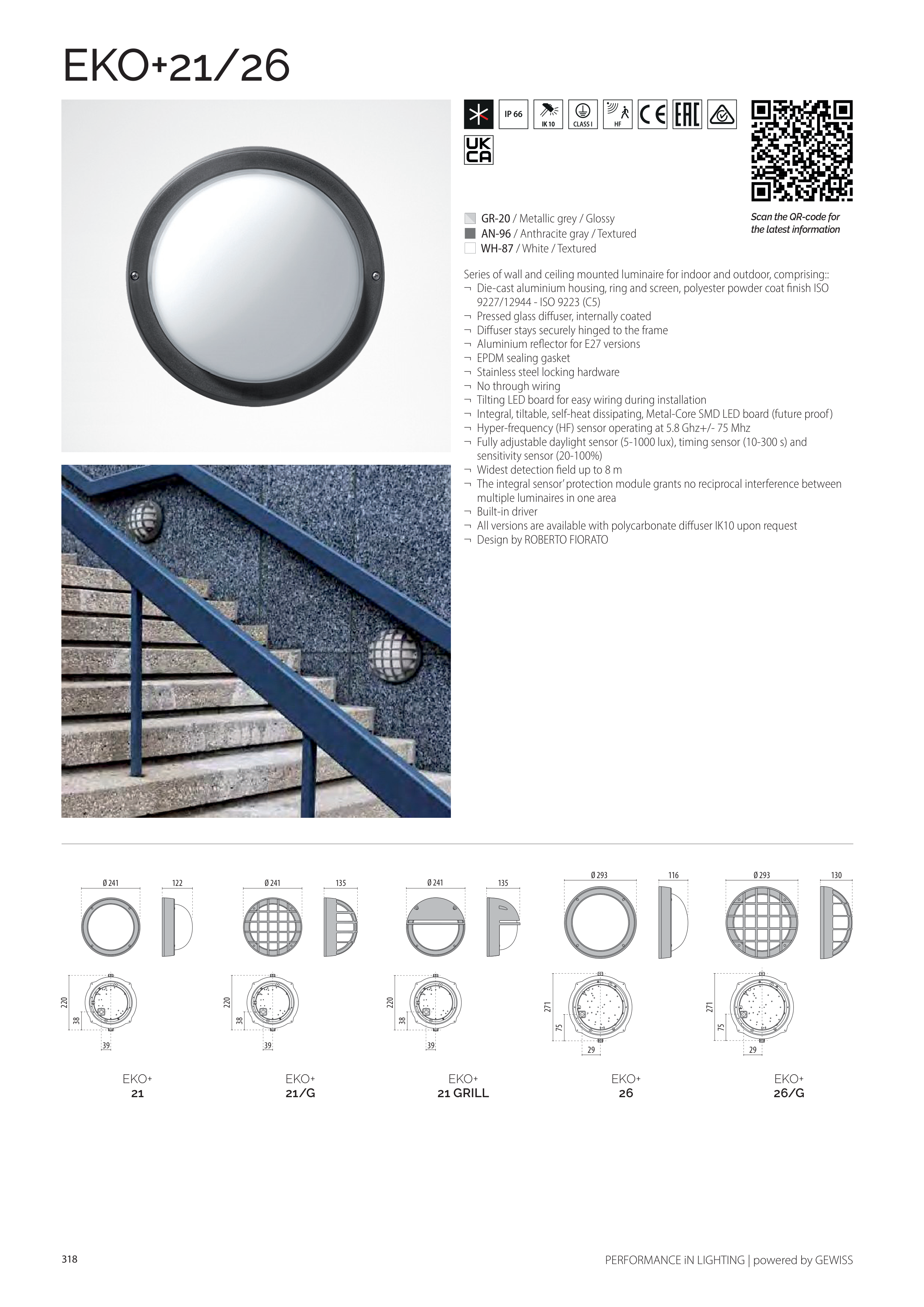

PERFORMANCE iN LIGHTING | powered by GEWISS
EKO+21/26
Ø 241
135
38
220
39
Ø 241
135
220
38
39
Ø 241
122
38
220
39
EKO+
21 GRILL
EKO+
21/G
EKO+
21
Ø 293
116
75
271
29
Ø 293
130
75
271
29
EKO+
26
EKO+
26/G
Series of wall and ceiling mounted luminaire for indoor and outdoor, comprising::
¬ Die-cast aluminium housing, ring and screen, polyester powder coat finish ISO
9227/12944 - ISO 9223 (C5)
¬ Pressed glass diffuser, internally coated
¬ Diffuser stays securely hinged to the frame
¬ Aluminium reflector for E27 versions
¬ EPDM sealing gasket
¬ Stainless steel locking hardware
¬ No through wiring
¬ Tilting LED board for easy wiring during installation
¬ Integral, tiltable, self-heat dissipating, Metal-Core SMD LED board (future proof)
¬ Hyper-frequency (HF) sensor operating at 5.8 Ghz+/- 75 Mhz
¬ Fully adjustable daylight sensor (5-1000 lux), timing sensor (10-300 s) and
sensitivity sensor (20-100%)
¬ Widest detection field up to 8 m
¬ The integral sensor’ protection module grants no reciprocal interference between
multiple luminaires in one area
¬ Built-in driver
¬ All versions are available with polycarbonate diffuser IK10 upon request
¬ Design by ROBERTO FIORATO
H GR-20 / Metallic grey / Glossy
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Scan the QR-code for
the latest information
318
